CP125 Trigger – Stainless Steel

Out of stock

Ex-proof manual call point for zone 1, 21

  • ATEX and IECEx certified for zone 1, 2, 21, 22
  • IP 66/67
  • Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54
  • GRP version also available
Customs code : 85311095
Country of origin : FR
Weight : 4,9kg
Ask for a quote

  • Security policy Security policy
  • Delivery policy Delivery policy

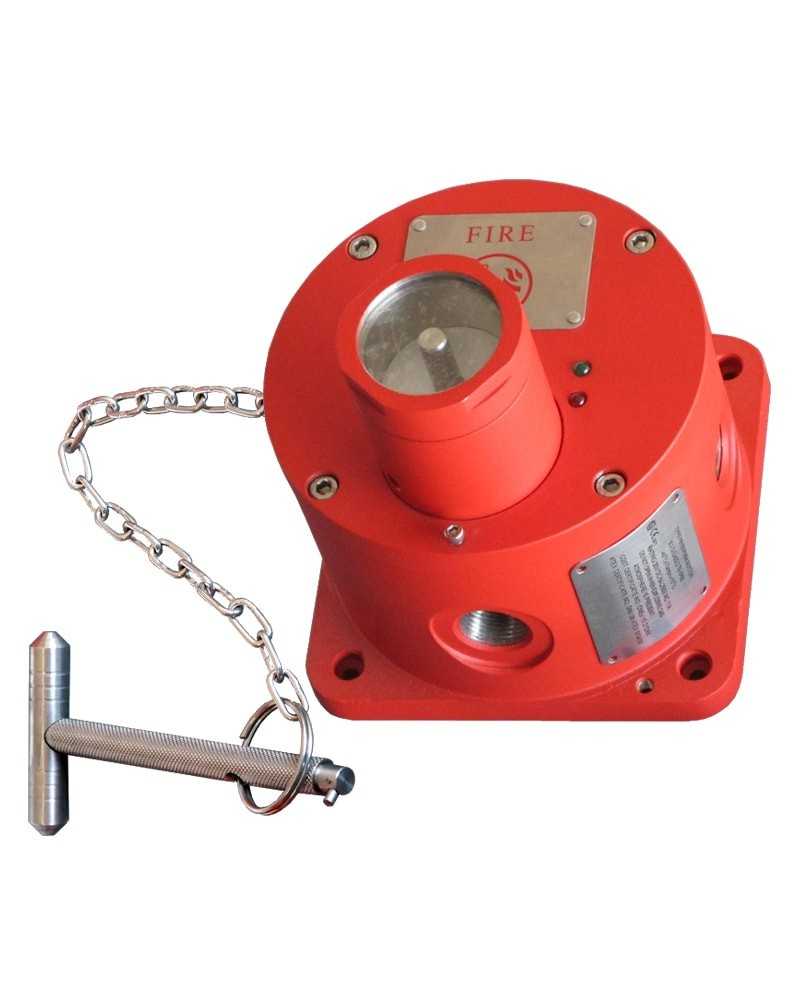

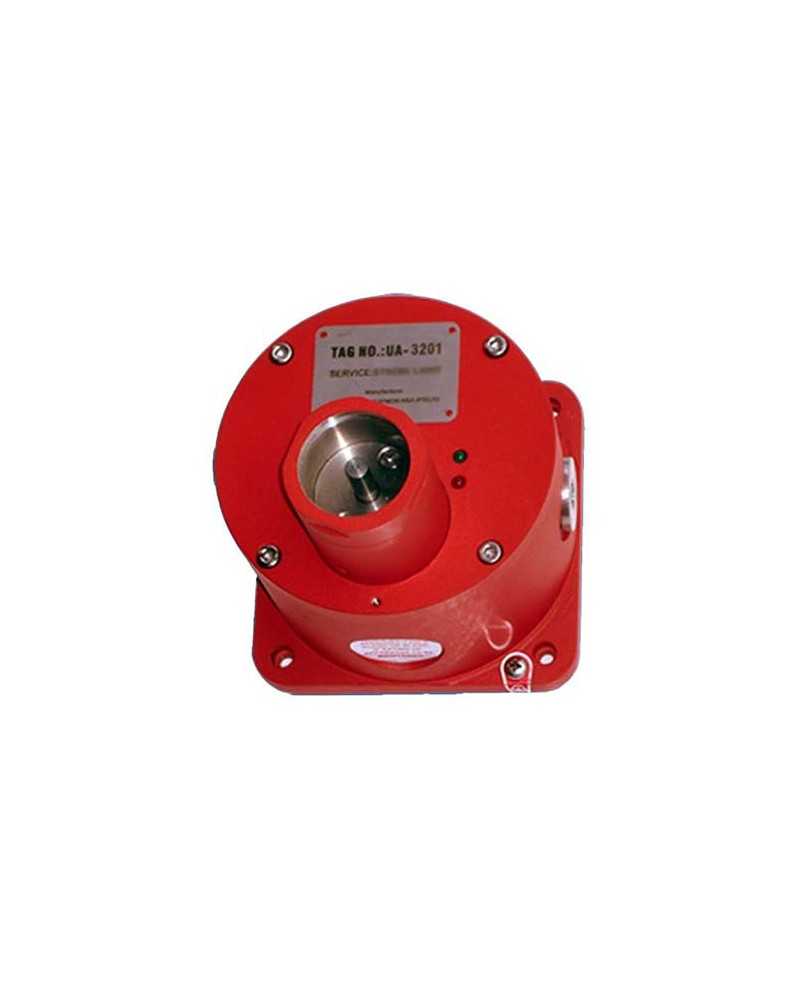

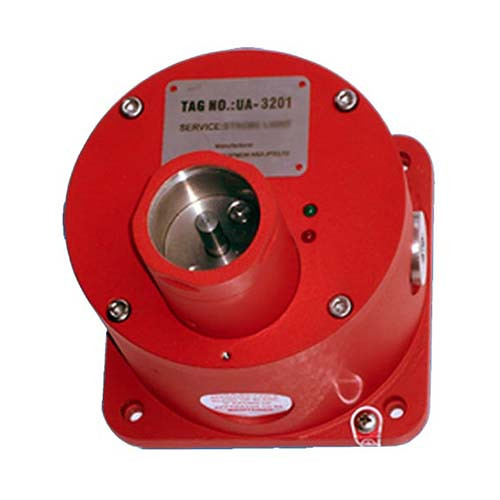

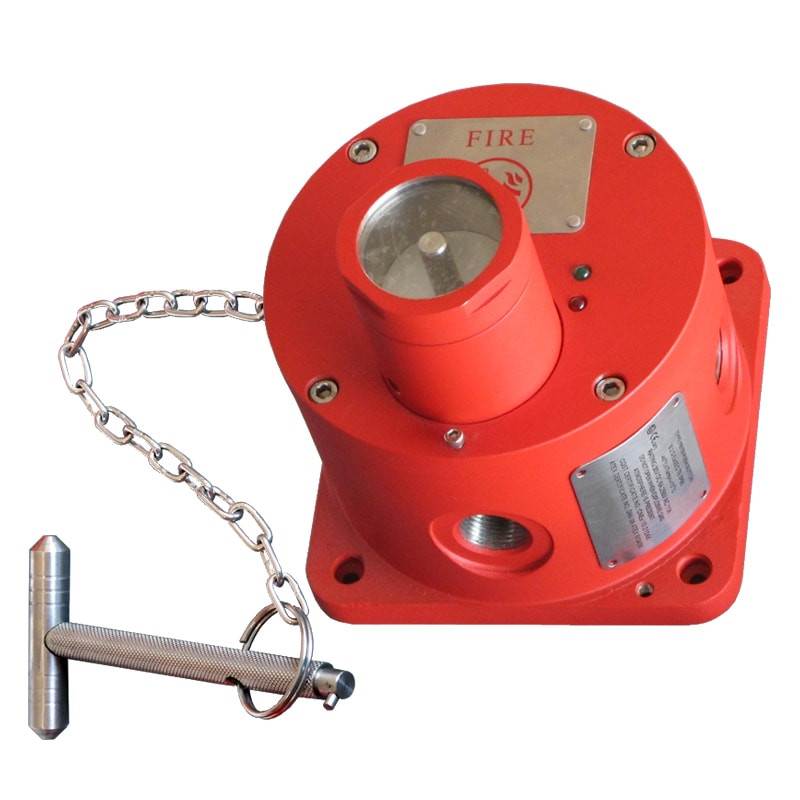

CP 125 Manual Call point is a product certified for Atex explosive atmosphere, zone 1 & 2 for gas and zone 21 & 22 for dust. It is dedicated Oil & Gas, chemical, petrochemical, pharmacy industries, marine and Offshore applications. It was developed for corrosive environments and hazardous areas . The manual call point is compatible with PLC, ESD, DCS systems via output 4-20 mA. The test function is built in, visualisation functions, line detection, and glass protection, hammer, are optional. Body in  stainless steel 316L covered  by a paint UV resistant.

Data sheet

Degree of protection
Stainless steel AISI 316L
Enclosure colour
Red, blue, yellow, black with yellow stripes, other colours on demand
Ambiant temperature
-40°C to +70°C
up to 95% RH
Cable entries
4* M20, M25, 1/2” NPT, 3/4”NPT or Others on request
LED Indicator
Lift Flap
Resistor and/or diode can be Fixed
