- ATEX and IECEx certified for zone 1, 2, 21, 22
- IP 66/67
- Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54
- INOX version also available

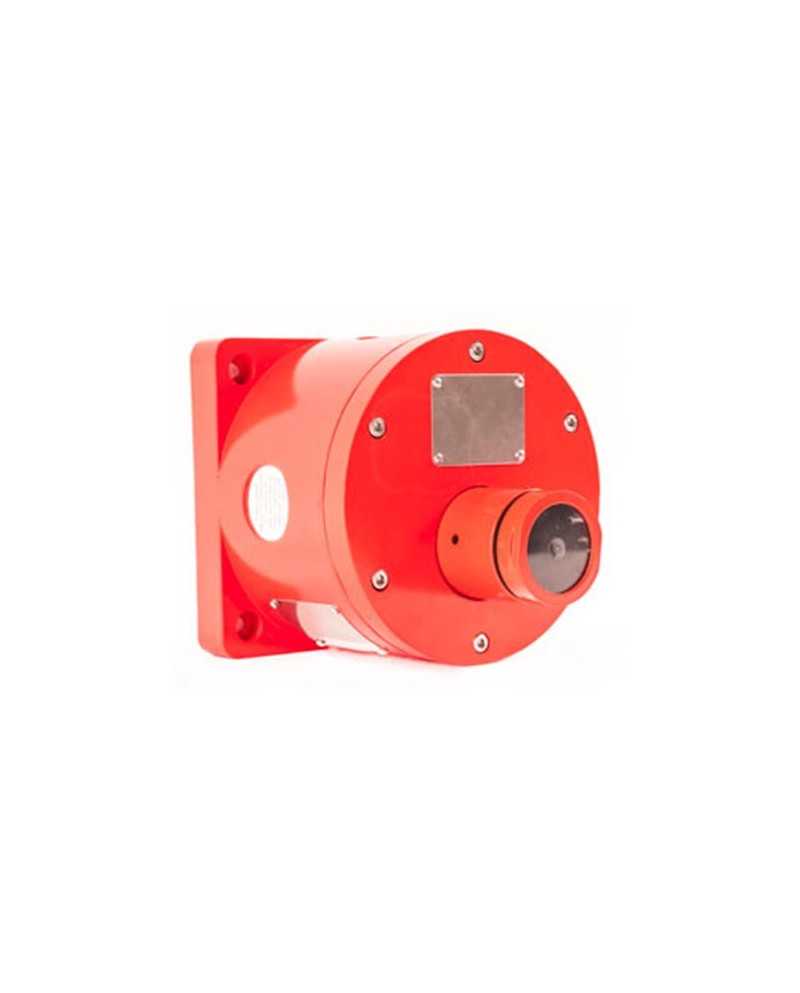

Push button PB 150 in GRP
Ex-proof manual call point PB150 for zone 1, 21
Security policy
Delivery policy
This PB 150 Ex d IIC manual call point of “push button” type is designed for zones 1, 2 for gas and 21, 22 for dust, corrosive environments and dedicated for oil and gas, chemical industries, petrochemicals, pharmaceuticals, marine and offshore applications. It is compatible with PLC, ESD, DCS systems via 4-20mA output. There is a push button version and a push button release with a key. The assembly is molded in fiberglass reinforced polyester (GRP), dyed in the mass and protected by a highly UV resistant paint. Optionally, display functions, line detection and protection shutter. A full range of accessories allows products to be personalized.
Data sheet
- Certificate(s)
- NEMKO 13ATEX1563X, IECEX NEM 13.0033X
- Material
- Reinforced polyester (GRP)
- Enclosure colour
- Red, yellow, blue, black
- Humidity
- up to 95% RH
- Cable entries
- 4* M20, M25, 1/2” NPT, 3/4”NPT or Others on request
