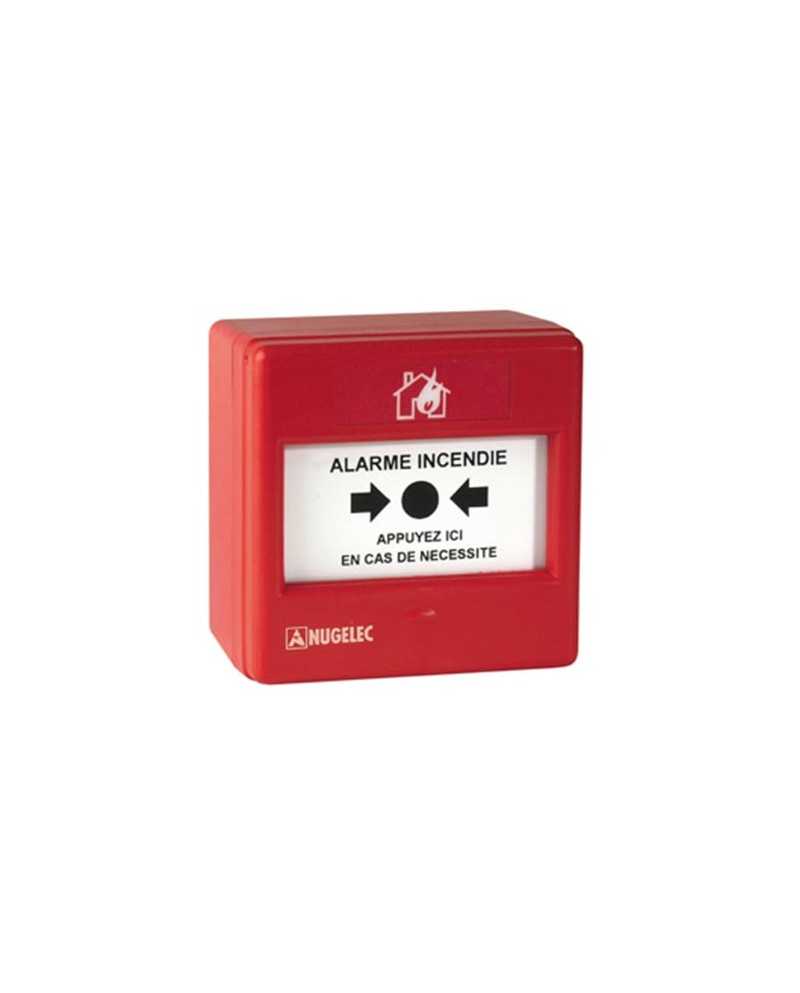

Conventional manual call point S3000
Key features:
- IP 66
- with indicator light
- EN 54-11
- CE CPD and NF certified
S3000 manual releases are equipped with a deformable membrane or a pre-broken glass. They can be fitted with a transparent protective valve.
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
- Supplied with deformable membrane
- Supplied with test and reset key
- Possibility of adding a protection valve NUG30081
- Rearming from below
- Integrated alarm indicator
Compatible with all conventional NUGELEC type 1, type 2a, type 3 and type 4 alarm equipment (planet range)
Advantages:
- Use: 1.5 A / 24 Vdc - 0.3 A / 48 Vdc.
- Supplied with a reset key and a 2 W / 910 Ohms load resistor.
- NC contact for line opening, NO for line closure.
- Equipped with a deformable membrane.
- Can be fitted with a transparent protective valve.
- Complies with standard EN 54-11.
- CE CPD certified
| Certificate(s) | CE CPD and NF |
|---|---|
| Degree of protection | IP66 |
