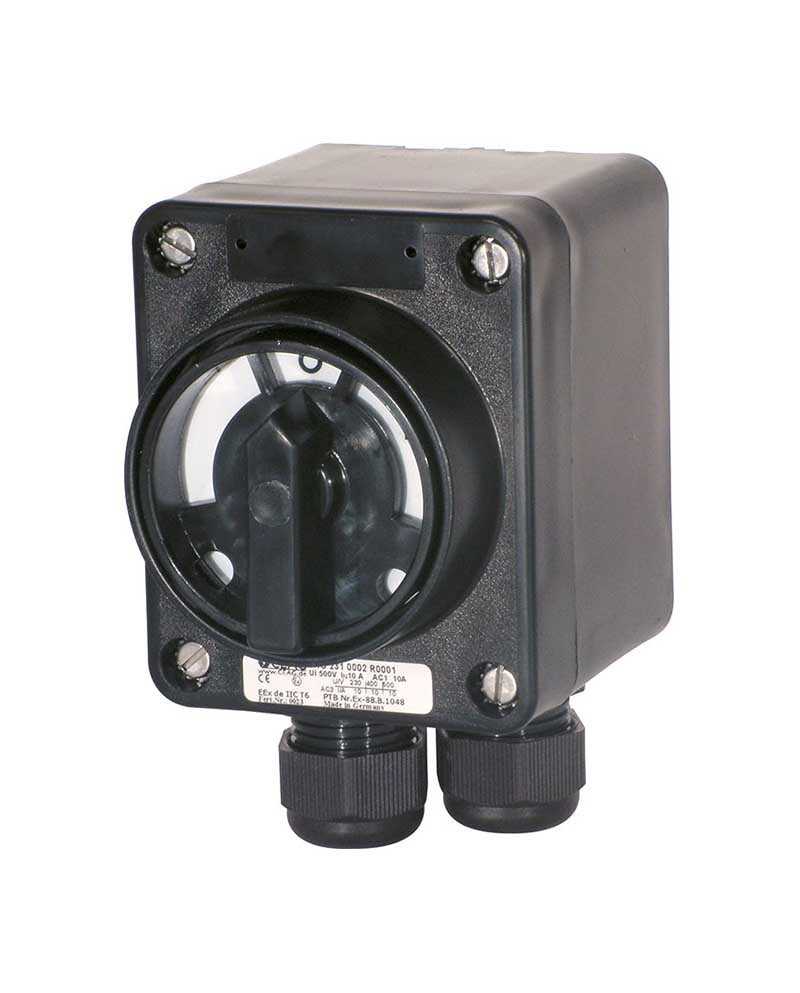

Ex-proof safety switch 10A

Main features:

Robust polyamide construction
Good chemical and impact resistance
No corrosion possible
Padlockable rotary handle in "0" position with 3 padlocks
Offset NO auxiliary contact (delay on closing, advance on opening) which provides additional safety in extreme operating conditions
Suitable for all gas groups: IIA, IIB, IIC and all dust types: IIIA, IIIB, IIIC
Safe to use in zones 1, 2, 21 and 22

Customs code: 85365080
Country of origin: DE
Weight: 0.55kg
Stock: Available within 48 to 72 hours*

Cable entries

Configuration

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

This safety switch with black rotary handle for the power switch function (general use) or red and yellow for the safety switch function (maintenance operations) ensures performance and reliability for all your applications. Light and compact, it can be easily integrated into your installations. It is supplied with a cover with captive screws. Meets the requirements of the new standard IEC/EN 62626-1, class 1, for safety switches used in ATEX zones.

Certificate(s)	ATEX and IECEX
Material	Impact resistant polyamide
Enclosure colour	Black or Yellow/red
Ambiant temperature	-20°C to +40°C
Cable entries	2xM25/1xM20 - 2xM20
