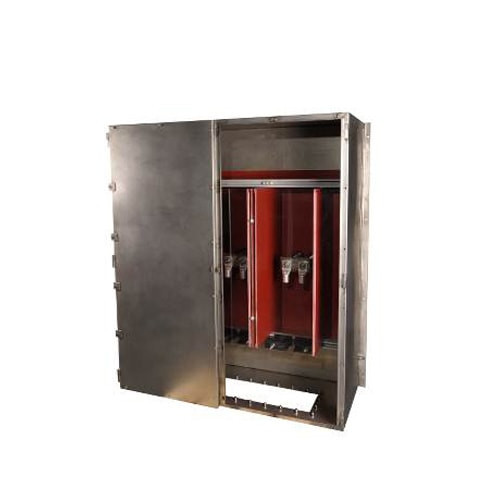

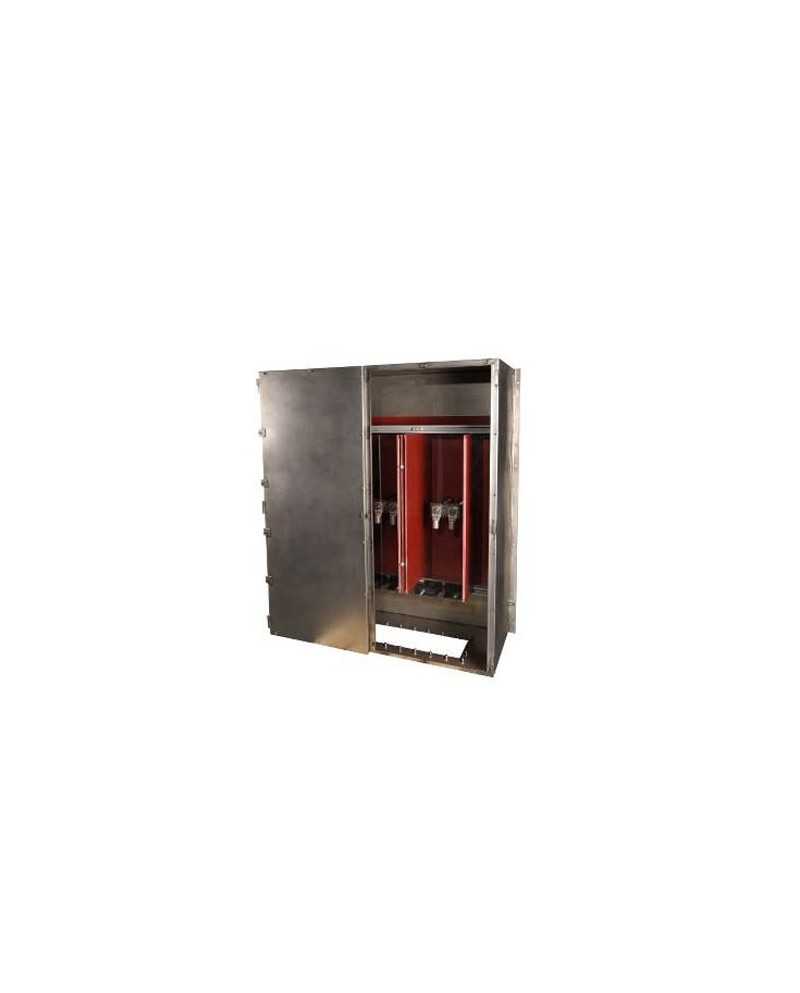

4TJB HV Hazardous Area (ATEX & IECEx) Electrical Enclosure
High voltage junction box zone 1, 21
- Stainless steel
- Zone 1, 21
- High voltage
- Up to 45 kV in Zone 1
- DTS-01 anti-flood tested case
- 40 kA rated error for 1 second
- Available with an additional fiber optic ender compartment
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 4TJB junction case is designed to house high voltage connections in Atex areas. It can connect power or multi-purpose cables up to 45 kV. The 4TJB can accept up to three single-phase connections (one driver per phase) in a lower input configuration or through a box. This sturdy SX stainless steel junction box has a proven track play in the field as it has been tested in deluge DTS-01 and been rated at 40 kA for a second.
| Suitable for | Area 1/21 |
|---|---|
| Degree of protection | IP66 |
| Choc resistance | more than 7 Nm |
| Material | Stainless steel AISI 316L |
| Mounting type | Via sturdy external straps 3 mm thick |
