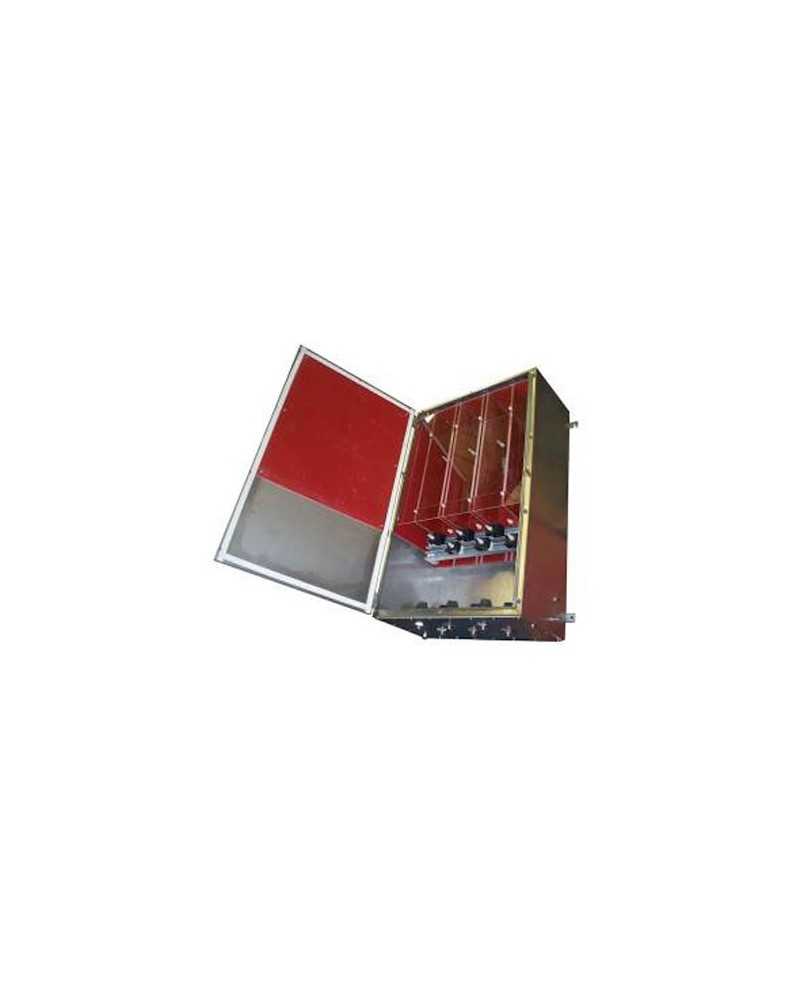

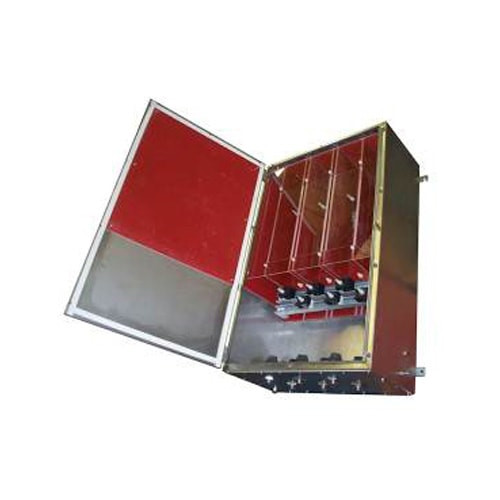

High voltage junction box zone 1, 21
TFJB
- Stainless steel
- Zone 1, 21
- High voltage
- Up to 36 kV in zone 1
- Maximum current 312A
- Tested DTS-01 anti-downpour
- Robust machined hinges with a sticky and lockable cover for easy installation
Security policy
Delivery policy
The TFJB case is designed to end connections up to 36 kV in hazardous areas and accommodates a connecting phase of entry and exit. Made of marine grade stainless steel 316L (1.404), the TFJB is suitable for use in harsh and hazardous environmental conditions. To avoid dust and water penetration, it is rated IP66 according to EN 60529 and has been tested in DTS-01 downpour. This 36 kV case can accommodate drivers from 6 mm2 to 630 mm2. It has a maximum rated power of 174 W-T4 and can carry current up to 312 A.
Data sheet
- Suitable for
- Area 1/21
- Degree of protection
- IP66
- Choc resistance
- more than 7 Nm
- Material
- Stainless steel AISI 316L
- Mounting type
- Via 3mm thick external mounting straps, a split top strap to make installation easier
