ABJB 125

Out of stock

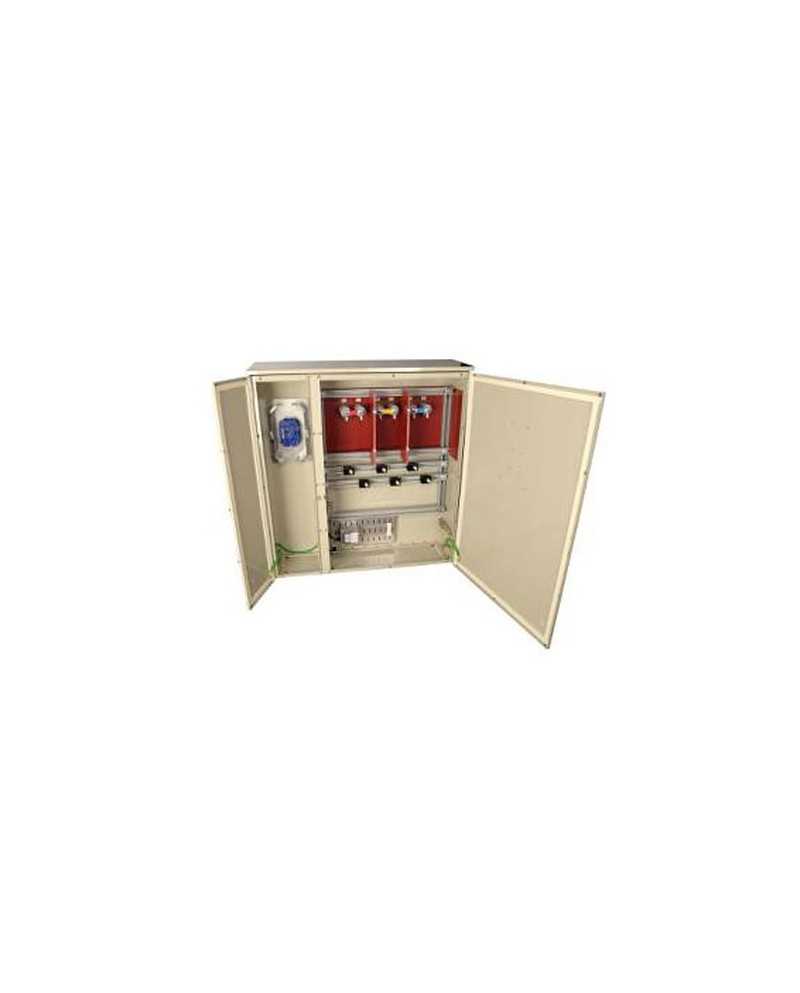

High voltage junction box zone 1, 21

  • Stainless steel
  • Zone 1, 21
  • High voltage
  • Works on optical fibers or controls conductors without isolating the HT power supply
  • Each IP166 compartment is independent
  • 45 kA rated error for 0.2 seconds
  • DTS-01 anti-downpoor tested box
  • Range of paints and surface finishes
Ask for a quote

  • Security policy Security policy
  • Delivery policy Delivery policy

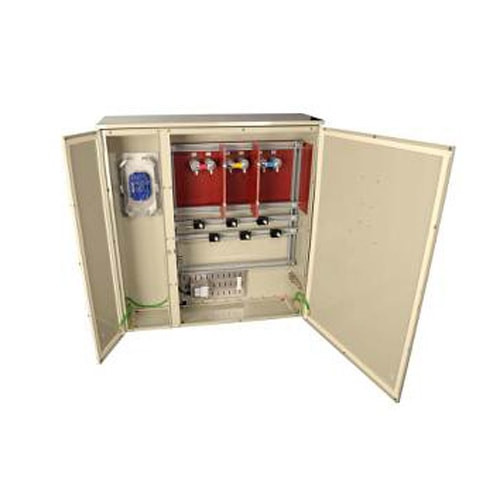

Based on the HVJB range, the ABJB 125 high voltage junction case offers a unique solution for the termination of offshore umbilical cables or onshore distribution systems. The power conductor compartment houses cables up to 15 kV. A separate control compartment is used for the termination of fiber optic or control cables. It is made of 316L stainless steel (1.404) so highly resistant to corrosion and has proven itself in the field at some of the most difficult industrial sites on the planet. Not only is the box is rated IP66 according to EN 60529, but it is also tested against DTS-01 downpoors.

Data sheet

Suitable for
Area 1/21
Choc resistance
more than 7 Nm
Material
Stainless steel AISI 316L
Ambiant temperature
-20°C to +40°C
Mounting type
Via 3mm thick external mounting straps, a split top strap to make installation easier
