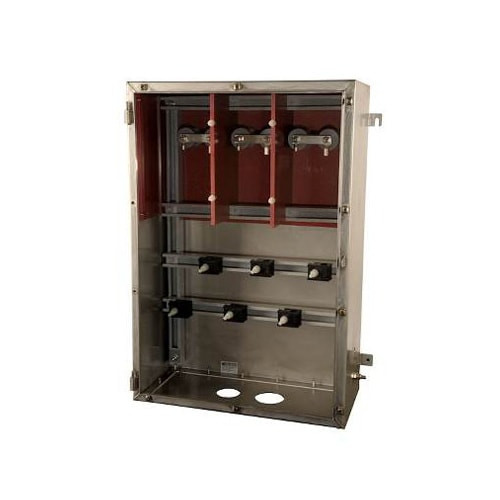

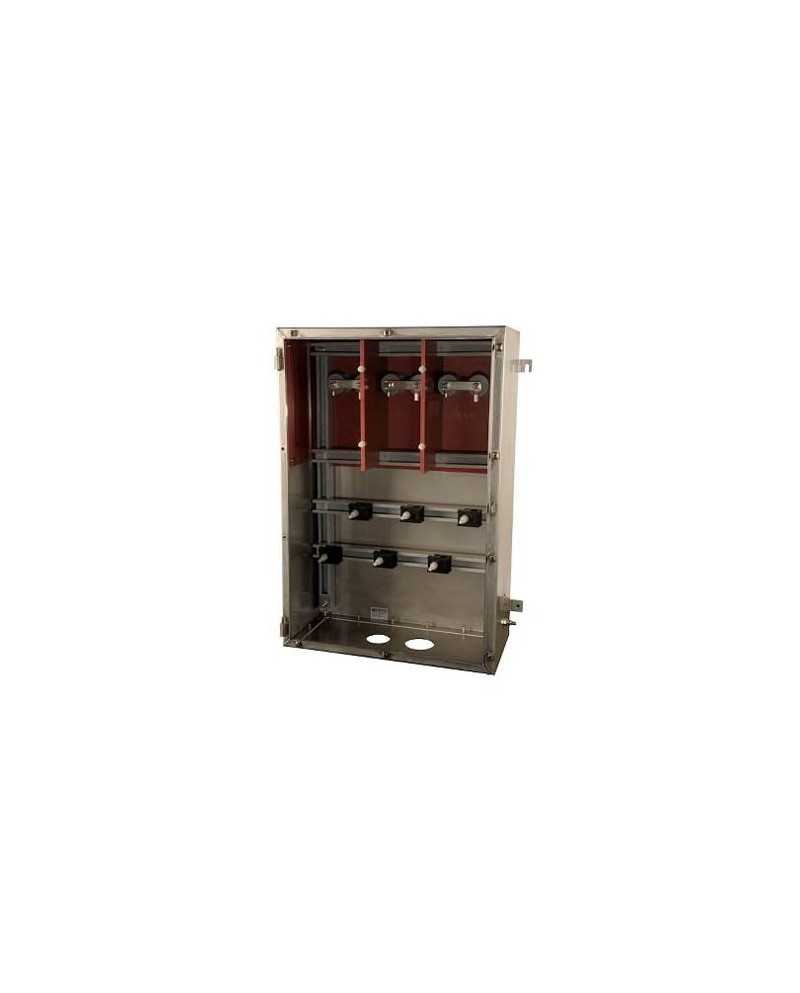

Ex-rated high voltage 15kv junction box ABJB series

High voltage junction box zone 1, 21

  • Stainless steel
  • Zone 1, 21
  • High voltage
  • Defect rated at 45 kA for 0.2 seconds
  • DTS-01 anti-downpoor tested box
  • Wide range of ambient temperatures
  • Robust machined hinges with removable and lockable lid

Leadtime on demand
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy

Based on the HVJB range but suitable for 11 kV, the ABJB case can accommodate up to four live connections in a lower input configuration or via a box. It is made of 316L stainless steel (1.404) so highly resistant to corrosion and has proven itself in the field at some of the most difficult industrial sites on the planet. Not only is the box is rated IP66 according to EN 60529, but it is also tested against DTS-01 deluges.

Data sheet

Suitable for
Zone 1
Degree of protection
IP66
Choc resistance
more than 7 Nm
Material
Stainless steel AISI 316L
Ambiant temperature
-20°C to +40°C
Gaskets
Silicone acid/hydrocarbon and high temperatures resistant
Mounting type
Via 3mm thick external mounting straps, a split top strap to make installation easier
