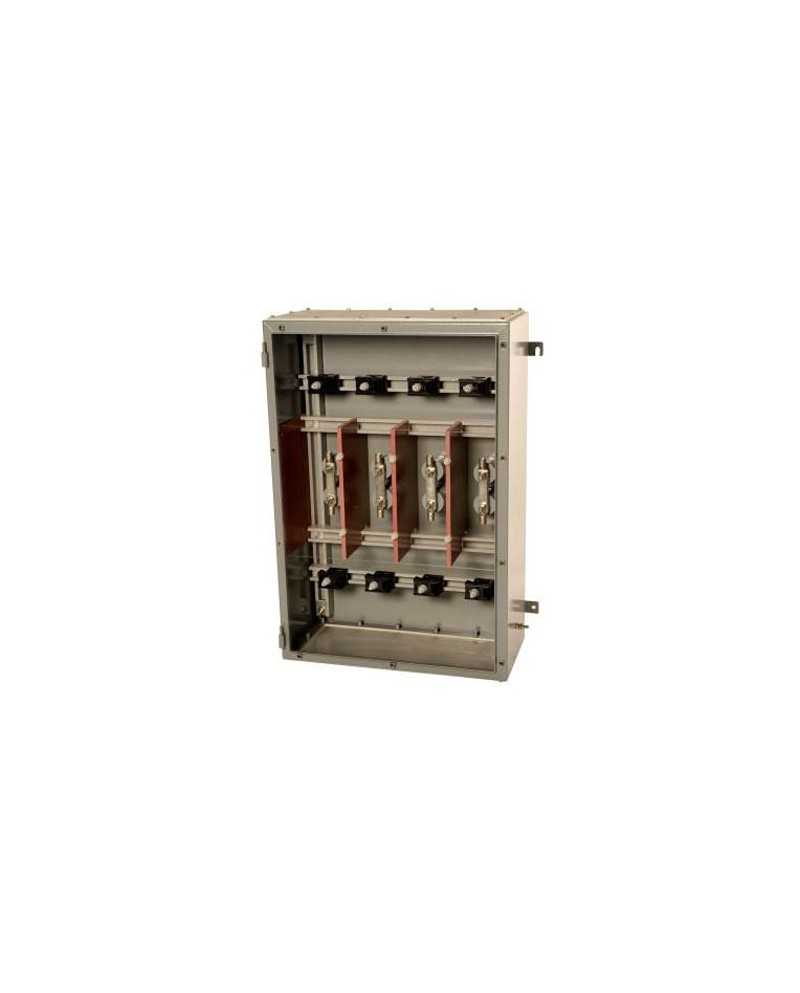

High voltage junction box zone 1, 21
HVJB
- stainless steel
- Zone 1, 21
- high voltage
- Defect rated at 45 kA for 0.2 seconds
- DTS-01 anti-downpoor tested box
- Suitable for low-temperature applications
- Robust machined hinges with removable and lockable lid
- Security policy
- Delivery policy
The HVJB range builds on the proven SX stainless steel case platform to provide a safe and flexible method of terminating and distributing high voltage power. This provides electrical infrastructure designers with a greater choice of cables, configurations and endings. The range can accept up to four live connections and up to three connections per phase. These can be done either as an entry from the bottom or as a direct configuration.
Data sheet
- Suitable for
- Area 1/21
- Choc resistance
- more than 7 Nm
- Material
- Stainless steel AISI 316L
- Ambiant temperature
- -20°C to +40°C
- Gaskets
- Silicone acid/hydrocarbon and high temperatures resistant
- Mounting type
- Via 3mm thick external mounting straps, a split top strap to make installation easier
