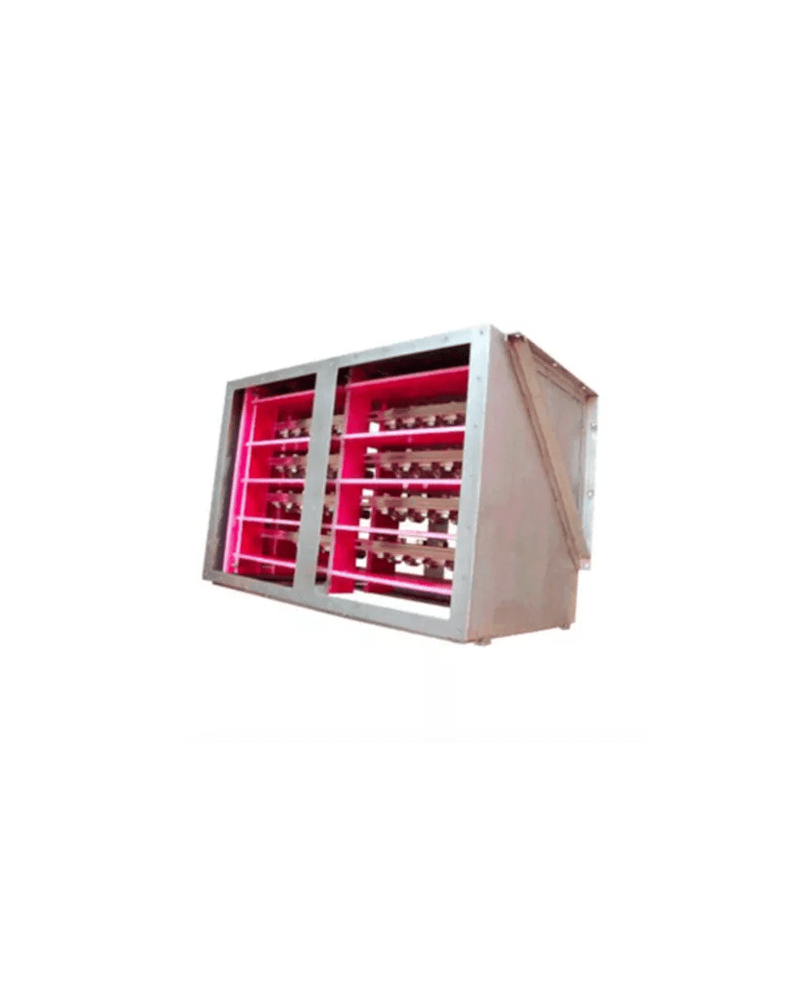

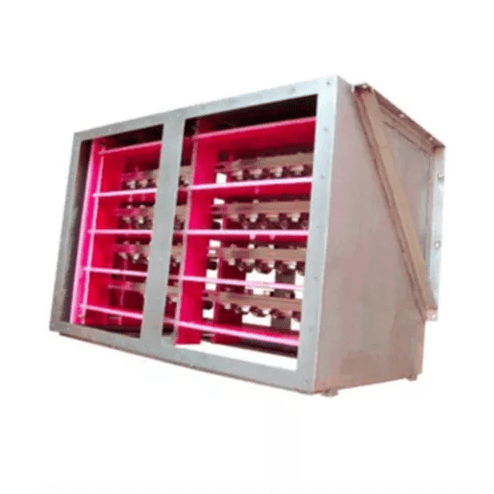

Busbar

Out of stock

High-voltage box zone 1, 21

  • Stainless steel
  • Zone 1, 21
  • Up to 3200A
  • Defect rated at 90 kA for 0.1 seconds
  • DTS-01 flood tested case
  • Robust machined hinges with removable lid, lockable lid
  • Suitable for connectors over 400 mm2
  • Able to connect 3 more neutral phases / up to 6 conductors per phase
Ask for a quote

  • Security policy Security policy
  • Delivery policy Delivery policy

A set of bars is a crucial part of any efficient electrical power distribution system that allows for greater flexibility and reduced overall installation costs. The BusBar Box allows this facility to be implemented in hazardous areas, often to provide a temporary electrical connection during the construction and commissioning phases. Made of 316L stainless steel (1.404), rated IP66 and type 4X, the BusBar Box case is comfortable in any exposed marine or terrestrial environment. In addition to the use of shoulder presses, cable integration can also be achieved via modular transit systems, while maintaining IP and Ex classifications. Several protective paints and assembly frames are available to meet the specific needs of a project.

Data sheet

Certificate(s)
ATEX : Sira 99ATEX3177 / Iecex : SIR 12.0155 / Inmetro : TÜV 11.0322
Degree of protection
IP66
Choc resistance
more than 7 Nm
Material
Stainless steel AISI 316L
Ambiant temperature
-40°C to + 40°C T5 / T6, -40°C to +60°C T6
Maximum voltage
11kv
Gaskets
Silicone acid/hydrocarbon and high temperatures resistant
Mounting type
Via sturdy 3mm-thick external corner frames
