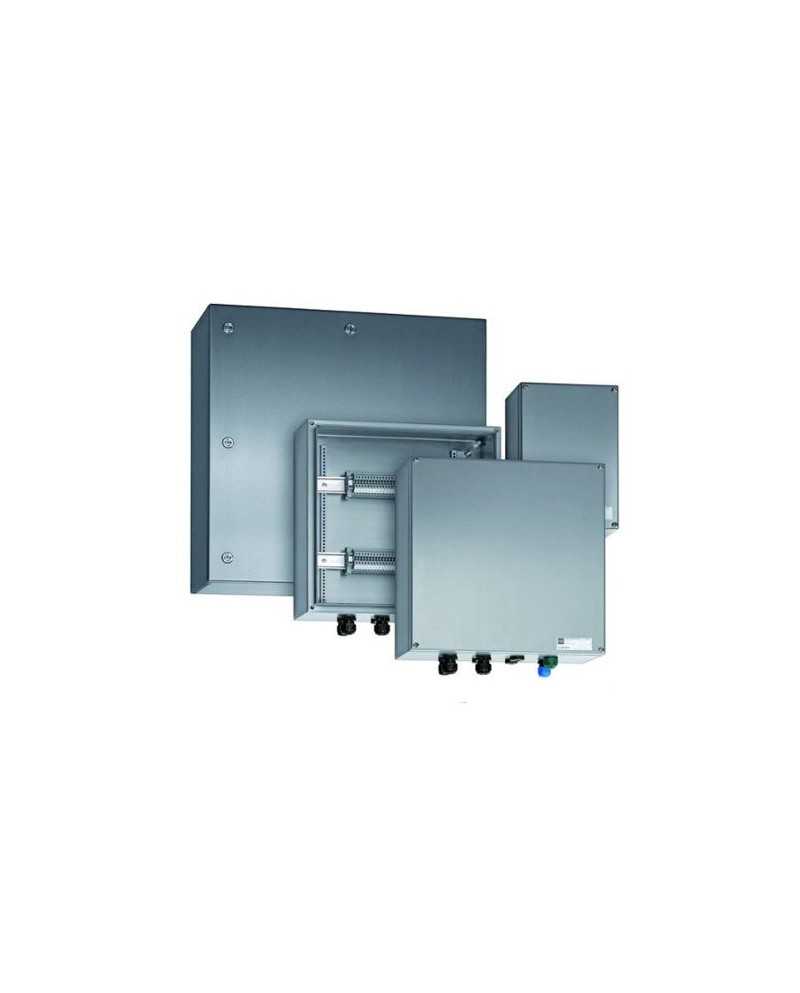

8150 Series Stainless Steel Ex e Enclosure
Out of stock
Key features:
- Zone 1 (gas) and 21 (dust)
- Durable Ex e junction boxes made of stainless steel
- Degree of protection IP66
- M8 external earth connection
- Version with threaded cover or hinged cover with clasps
- Customized equipment possible
Security policy
Delivery policy
The Ex e junction boxes of the 8150 series are made of brushed stainless steel (1.4301, AISI 304 or 1.4404, AISI 316L) and offer great resistance: thanks to their optimized design as the peripheral duct system on the opening of the cover and the silicone gasket suitable for the most extreme temperature ranges, the housing is suitable for international use. Various optional accessories are available.
- Tough Ex e junction boxes made of stainless steel, degree of protection IP66, external earth connection M8
- Version with threaded cover or hinged cover with clasps
- Customized equipment possible
Data sheet
- Certification
- ATEX
Iecex - Certificate(s)
- ATEX (PTB), Brazil (ULB), Canada / USA (UL), Canada (UL), China (CQST), EAC (LPE), Iecex (PTB), India (PESO), Korea (KGS), Taiwan (ITRI), United States (UL) Approval of vessel GL, RS
- Suitable for
- Area 1/21
- Protection mode
- Ex e
Ex tb - Protection against gas explosion
- ATEX E II 2 G Ex eb IIC T6 Gb
EAC 1 Ex e d ia mb IIC T6 ... T3 Gb X
Iecex Ex eb IIC T6 Gb - Protection against dust explosion
- ATEX E II 2 D Ex tb IIIC T80 ° C Db
EAC Ex tb IIIC T80 ° ... T135 ° C Dbx
Iecex Ex tb IIIC T80 ° C Db - Degree of protection
- IP66
IP67 - Material
- Stainless steel AISI 316L
