SX enclosures range
€0.00
Tax excluded
Key features:
- ATEX and IECEx
- Zone 1 (gas) and 21 (dust)
- Ex e and Ex i
- IP66 / 67
- Marine grade 316L stainless steel construction with stainless steel fasteners and silicon gasket
- Standard range or custom sizes available up to 2m x 2m x 2m
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

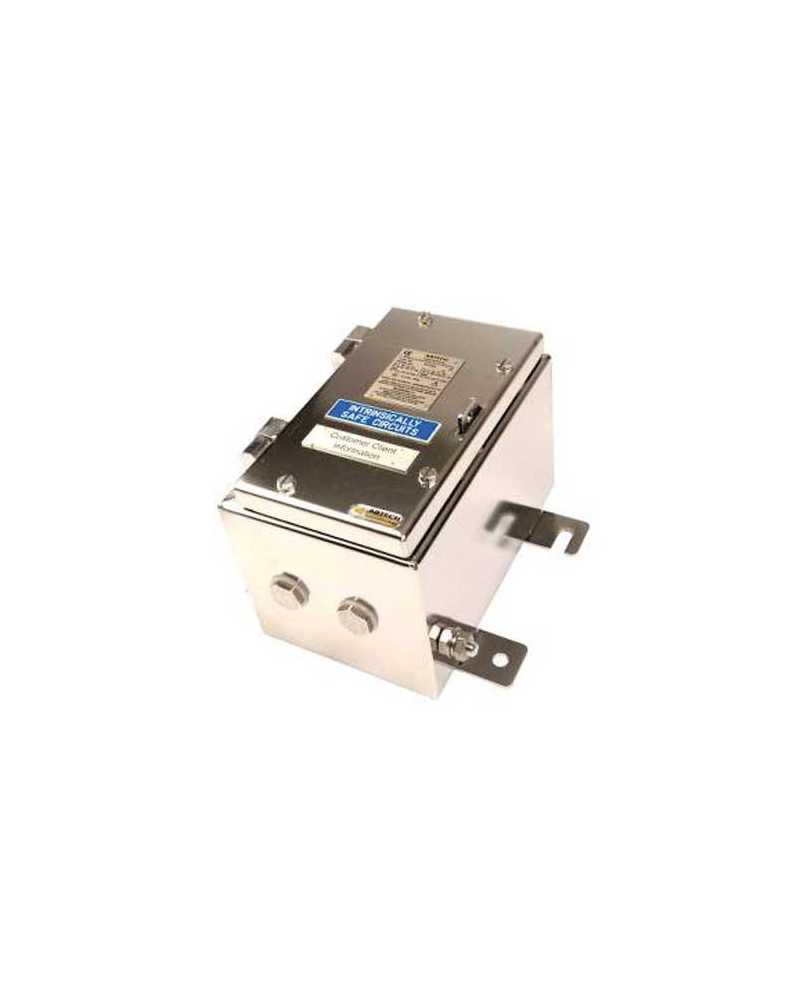

The SX is a line of stainless steel enclosures designed and certified for use in the harshest hazardous areas on the planet. Manufactured from marine grade 316L (1.404) stainless steel and complete with full stainless steel fasteners, the SX range features high levels of impact (IK10) and infiltration (IP66 / 67/68 and type 4X) protection. The cabinet has also been tested by DTS-01 deluge.
It has been designed for simple installation and ease of use with integrated mounting straps. The SX's oversized hinge makes it easy to remove the door in confined spaces. A minimum opening of less than 10 ° is required. This design also allows the captive screws on the cover to control the closing of the door, rather than the hinge, preventing excessive compression of the gasket.
Grounding is via an external / internal grounding stud fitted as standard which can be connected to the terminal mounting rail or component mounting plate. Earth studs can also be fitted to the door and gland plates.
A range of 14 standard sizes in 140, 200 and 300mm depth is available. Removable gland plates can be added on all four sides. In addition, the SX case can be made to your exact custom dimensions
| Certificate(s) | ATEX |
|---|---|
| Choc resistance | More than 10Nm |
| Corrosion resistance | Cable pass plates can be adapted to all or part four sides (size SX66 and more) |
| Ambiant temperature | -50°C to +175°C |
