CTB

€0.00

Tax excluded

Aluminium alloy junction box for zone 1, 2, 21, 22

Zone 1, 2, 21, 22
25 different sizes
Mechanical resistance IK10
IP66
Stainless steel AISI 316L
Stainless steel bolts and screws
EPDM gasket
Internal/external earth screws
Fixing legs

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

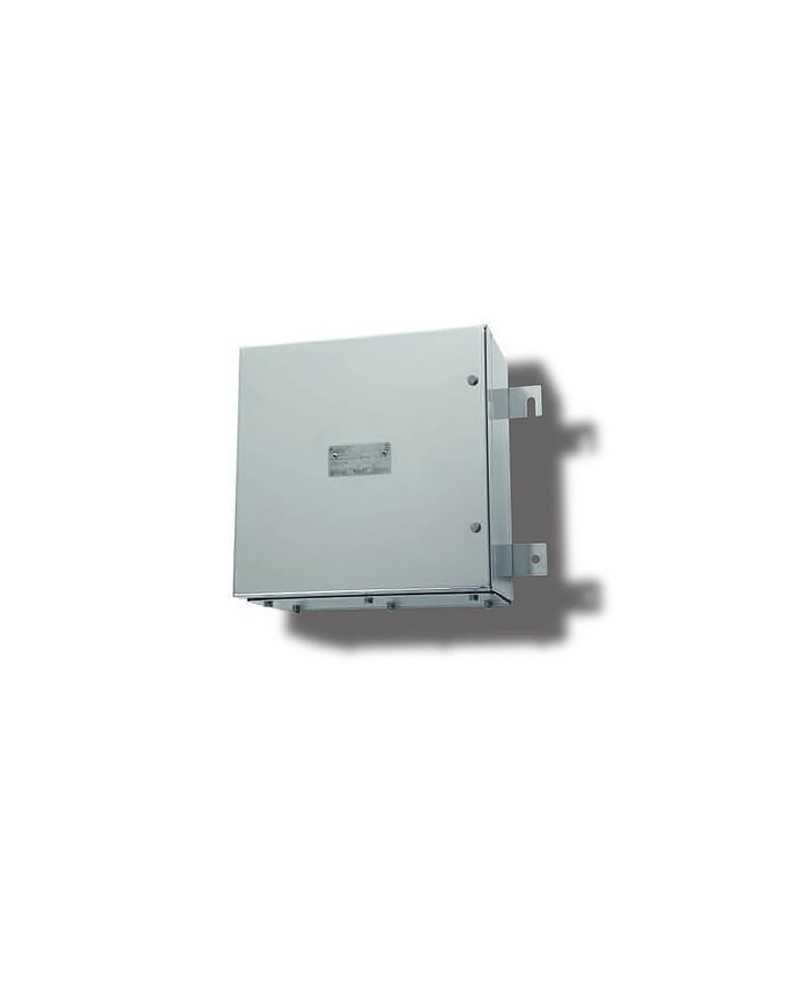

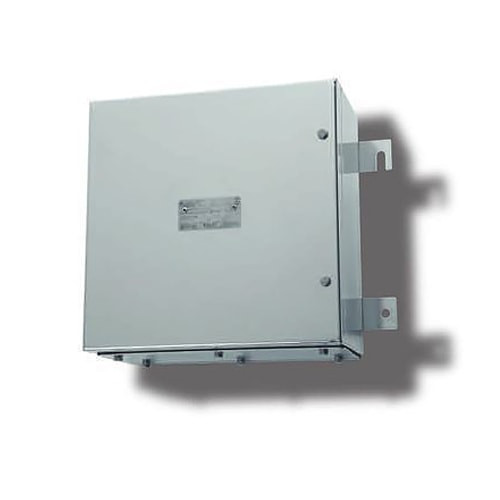

The CTB junction box is made from AISI 316L stainless steel sheet for reliable installation in harsh environments of zones 1, 2, 21, 22. With its high level of quality as well as the use of raw materials treated with advanced technologies, this box successfully resists severe external factors, such as water, dust, violent shocks, vibrations, corrosion and extreme temperature fluctuations, guaranteeing optimal service over a very long period of time.

Suitable for	Area 1/21
Protection mode	Ex Ex e Ex tb
Degree of protection	IP66
Choc resistance	IK10
Material	Stainless steel AISI 316L
Frequency	50/60 Hz
Rated current	312 A
Terminal section	1.5 ÷ 300 mm2
Gaskets	Silicone acid/hydrocarbon and high temperatures resistant
Bolts and screws	Stainless steel Entries: 2 ISO M25 entries
Mounting type	AISI 316L stainless steel welded feet
