Aluminium alloy junction boxes for zone 1, 2, 21, 22
- Zone 1, 2, 21, 22
- Fiberglass reinforced polyester
- Stainless steel bolts and screws
- Silicone seal
- Internal/external earth screws
- Antistatic property
- Mechanical resistance IK10
- IP66
- Choice of 9 sizes
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

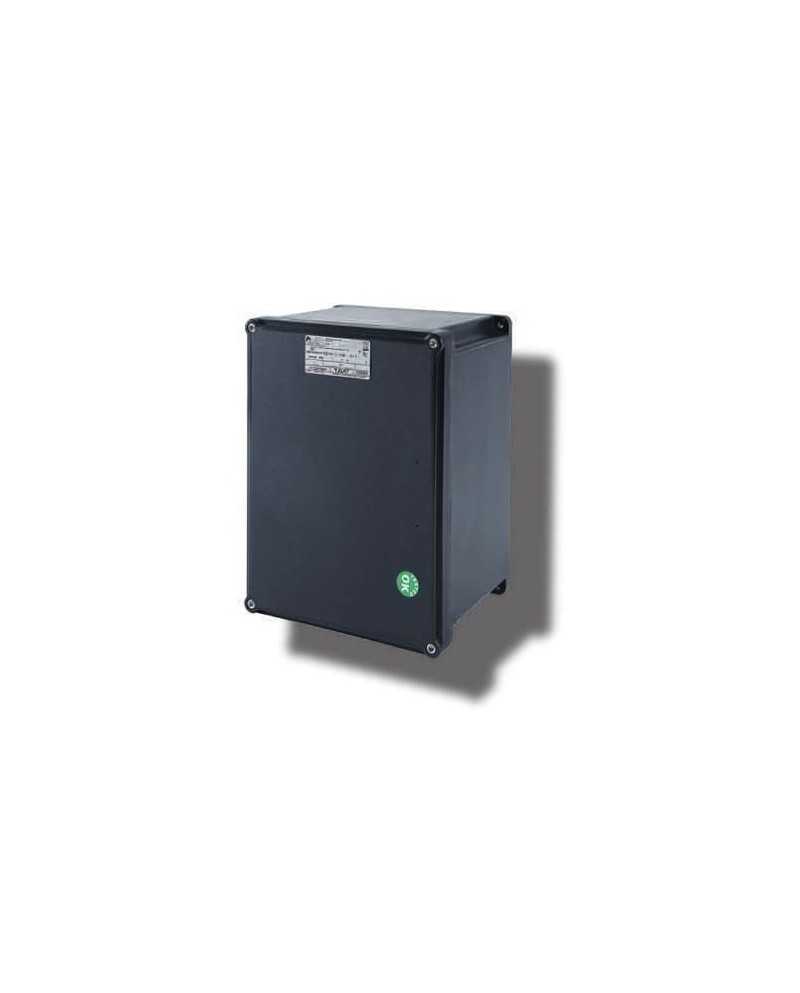

The junction boxes of the SA series … P are made of fiberglass-reinforced polyester. Because they are highly resistant to oil contamination and mechanical shocks, in addition to being light and practical, they can be installed in all industrial facilities, especially those where there is a potential risk of explosion and/or fire due to the presence of combustible gases or dust, classified in areas 1, 2, 21 and 22.
| Certification | ATEX Iecex |
|---|---|
| Certificate(s) | EN 60079-0 - EN 60079-1 - EN 60079-7 - EN 60079-11 - EN 60079-31 |
| Suitable for | Area 1/21 |
| Protection mode | Ex Ex e Ex tb |
| Degree of protection | IP66 |
| Choc resistance | IK10 |
| Material | Reinforced polyester (GRP) |
| Gaskets | Silicone acid/hydrocarbon and high temperatures resistant |
| Bolts and screws | Stainless steel Entries: 2 ISO M25 entries |
