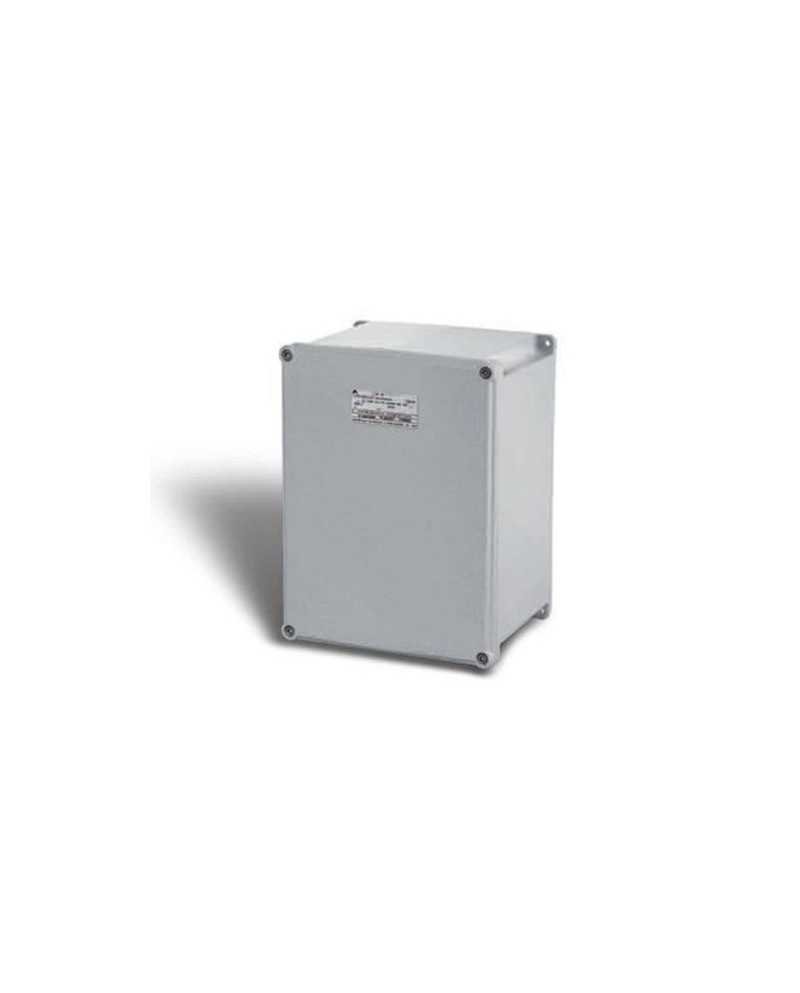

SA, SAG

Aluminium alloy junction boxes for zone 1, 2, 21, 22

  • Zone 1,2,21,22
  • Degree of IP66 protection
  • Aluminium alloy body and lid
  • Silicone seal
  • Stainless steel bolts and screws
  • RAL 7035 polyester coating
  • IK10 shock protection

Leadtime on demand
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy

The junction boxes of the SA, SAG series are mainly used as explosion proof boxes and/or to transport cables to the control rooms for analog or digital signals as well as for the control, monitoring and signaling associated with equipment such as engines, pumps … etc., or to provide physical readings such as flow, level, temperature, pressure, etc.

Construction
Low-copper aluminum alloy. Stainless steel bolts and screws. Silicone seal. Internal/external earth screws. Fixing legs. Polyester coating RAL 7035 (Ex e) or RAL 5015 (Ex i).

Data sheet

Choc resistance
IK10
Corrosion resistance
Aluminium alloy tested by standards EN 60068-2-30 (hot/wet cycles) and EN 60068-2-11 (salt fog tests)
Frequency
50/60 Hz
Rated current
312 A, 1 A for exec. Ex eb, 100 mA for exec. Ex ia, 10 A for exec. Ex eb, 100 mA for exec. Ex ia
Terminal section
1,5 ÷ 300 mm2
Gaskets
Silicone acid/hydrocarbon and high temperatures resistant
Bolts and screws
Stainless steel Entries: 2 ISO M25 entries
Mounting type
Aluminium cast iron feet for M6 screws
