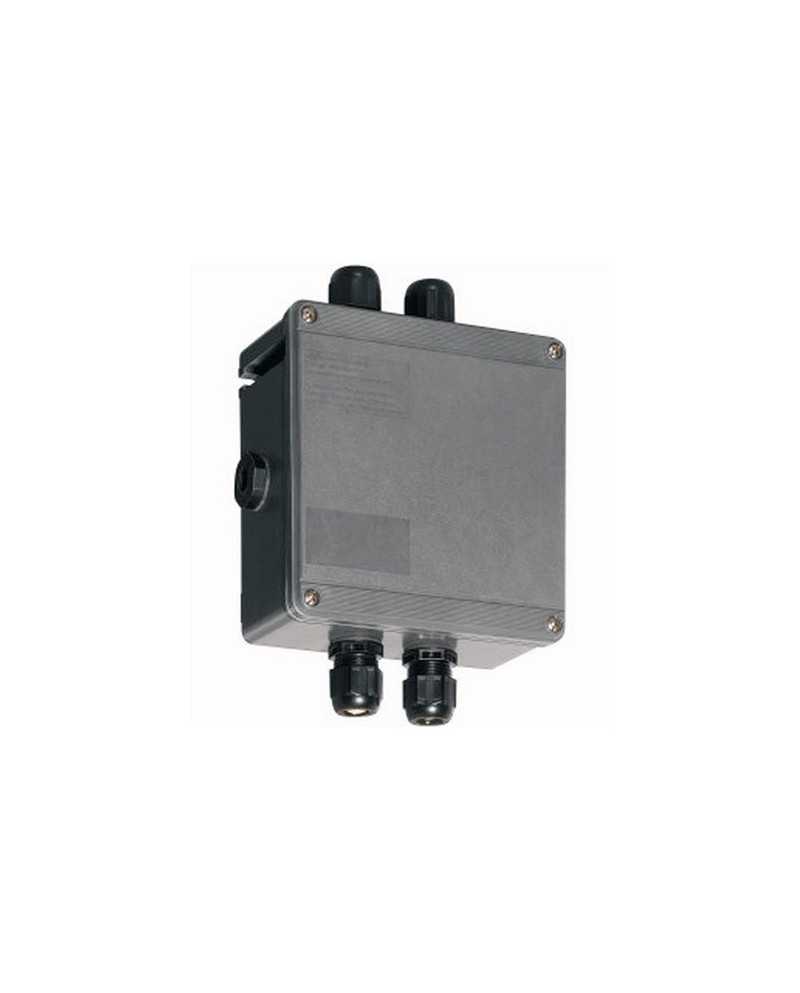

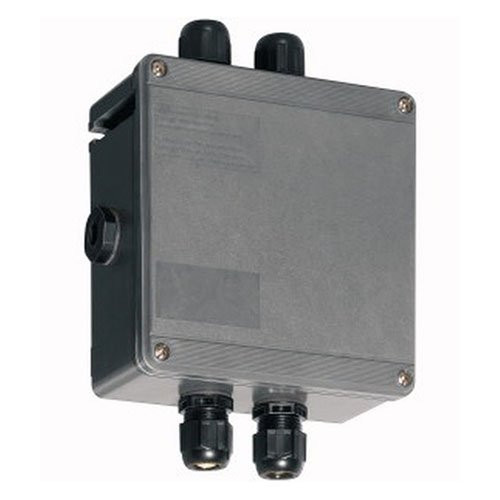

Ex e Junction Box serie 8118
€0.00
Tax excluded
Key features:
- For use in zone 1 (gas) and 21 (dust)
- Glass fiber reinforced polyester resin housing
- Protection class IP66
- Available in 3 sizes: avec 4, 5 ou 8 bornes
- As junction box with integrated protection fuse :
- 3 terminals and 1 protection fuse
- 7 terminals and 1 protection fuse
- 6 terminals and 2 protection fuses
Last items in stock
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 8118 series Ex e junction boxes are equipped with 4, 5 or 8 sleeve terminals depending on their size. Optionally, protection fuses can also be installed. The junction boxes are therefore also suitable for protecting devices. The sturdy glass-fiber reinforced polyester resin housing can be fitted with plastic or metal cable glands.
- Rugged Ex e box, suitable for international use as a junction or distribution box, and for the protection of electrical distributors up to 6.3 A
- Degree of protection IP66
- With sleeve terminals or a combination of sleeve terminals and protective fuses (optional)
| Implementation | Low voltage |
|---|---|
| Certification | ATEX INMETRO Iecex |
| Certificate(s) | Iecex, ATEX, Brazil (INMETRO), China (China-Ex), India (PESO), Kazakhstan (GOST K), Korea (Kcs), Russia (GOST R), Ukraine (TR) |
| Suitable for | Area 1/21 Area 2/22 |
| Protection mode | Ex e |
| Protection against gas explosion | Europe (ATEX) Gas and dust PTB 99 ATEX 3103 E II 2 D Ex e Ex II 2 G Ex e II T6, T5, T4 Ex i Ex II 2 G Ex ia/ib IIA, IIB, IIC T6, T5 Ex td A21 IP66 T80°C, T95°C, T130°C |
| Degree of protection | IP66 |
| Material | Reinforced polyester (GRP) |
