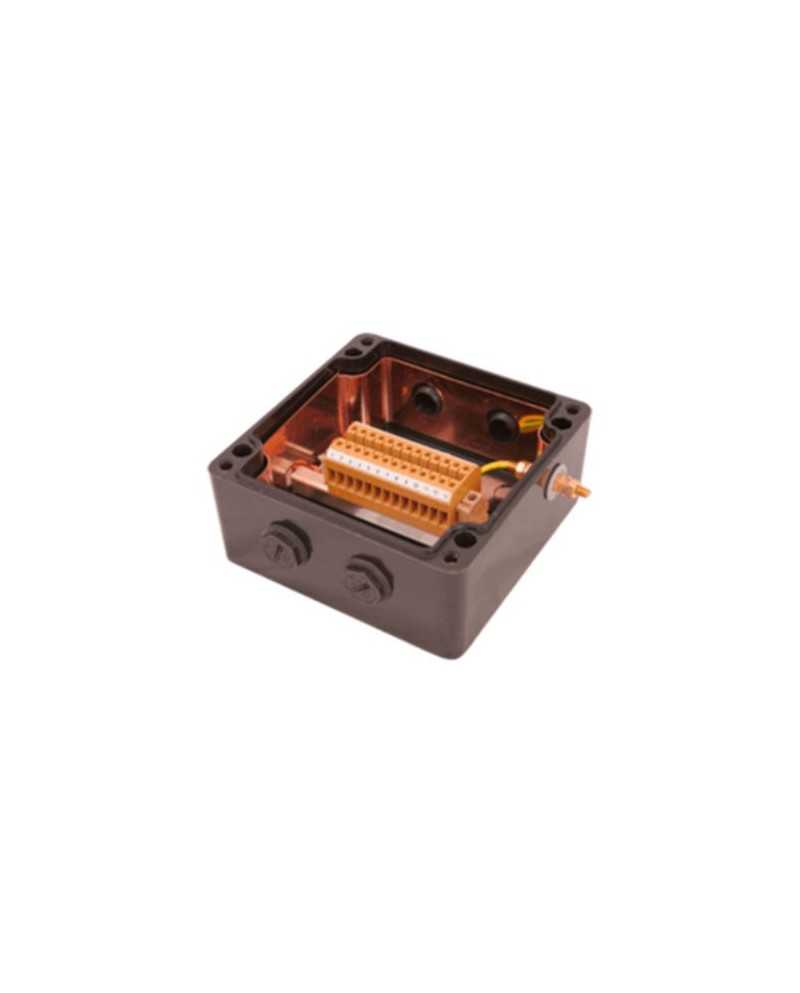

Ex e junction box BPG series in GRP
Out of stock
Key features:
- Suitable for use in zone 1 (gas) and 21 (dust)
- GRP housing (glass fiber reinforced polyester
- waterproof protection IP66 / 67 and type 4X
- Charged with anti-static (black) or 120 minute fire-resistant (gray) carbon
- Flexible options for installing terminals and components
Security policy
Delivery policy
The BPG is a range of fibreglass reinforced polyester cases (GRP) for use in hazardous areas on land and at sea. These cases are available in a range of sizes and are available in grey (IK08) or in black loaded with carbon (IK09). The BPG is made from CMS layered GRP material to provide maximum protection against shocks and effects of ultraviolet rays. In addition to being robust, the BPG offers high levels of protection against infiltration. The range is classified IP66 / 67 and Type 4X. It was also tested by DTS-01 flood. To prevent dust and water from entering the electrical compartment of the junction box, all fixation points are located outside the leakage area of the silicone lid.
Data sheet
- Certificate(s)
- UL, CSA, IEC Ex, ATEX, Inmetro and TR CU approvals
- Suitable for
- Area 1/21
- Protection mode
- Ex e
- Degree of protection
- IP67
- Choc resistance
- more than 7 Nm
- Fire resistant
- According to IEC331
- UV-resistant
- Can be pierced and tarauded adapt to most forms of yarn (NPT for example)
- Material
- Reinforced polyester (GRP)
- Ambiant temperature
- -60°C to +130°C
