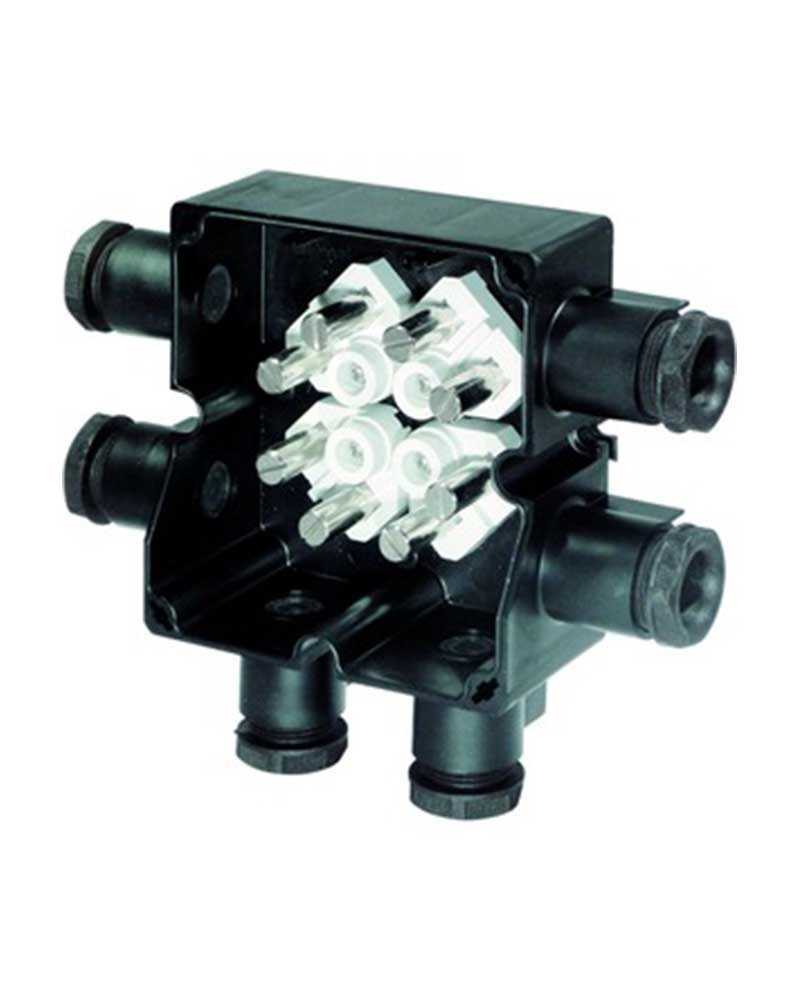

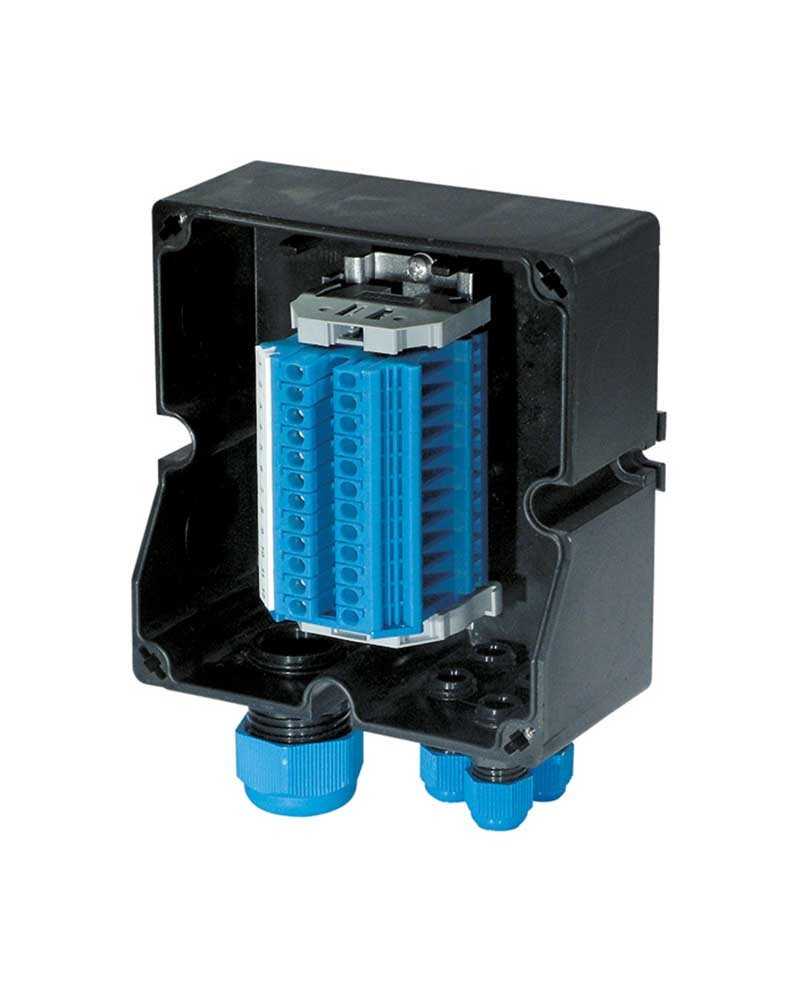

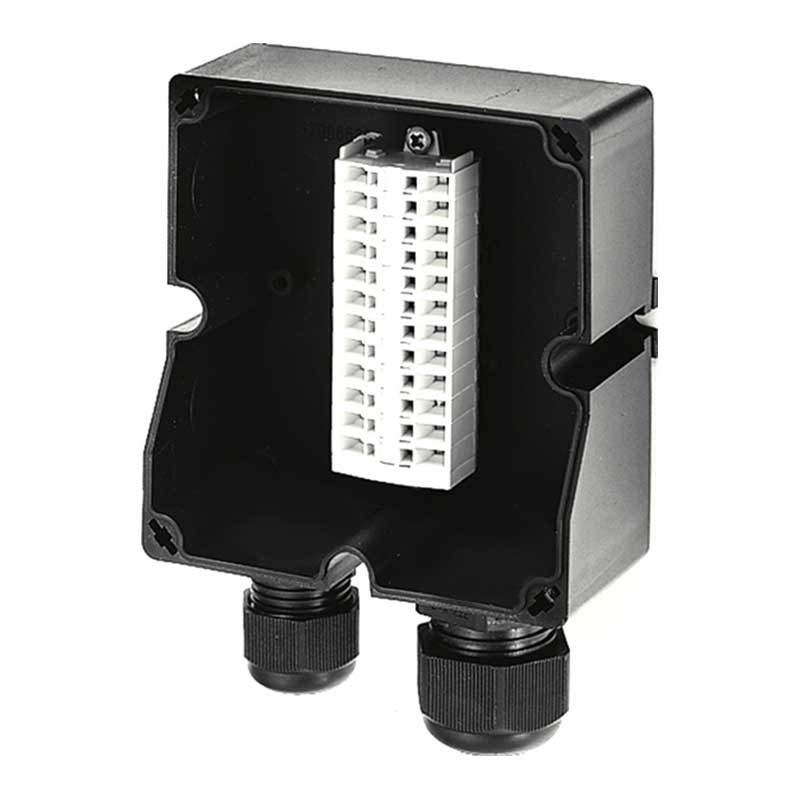

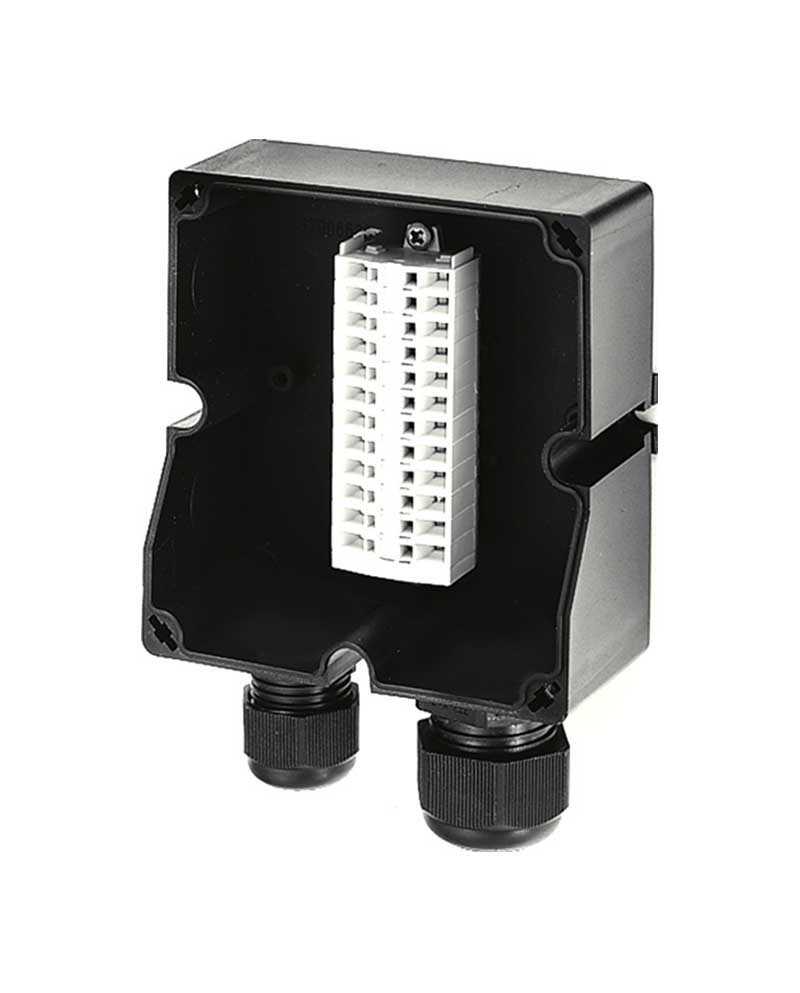

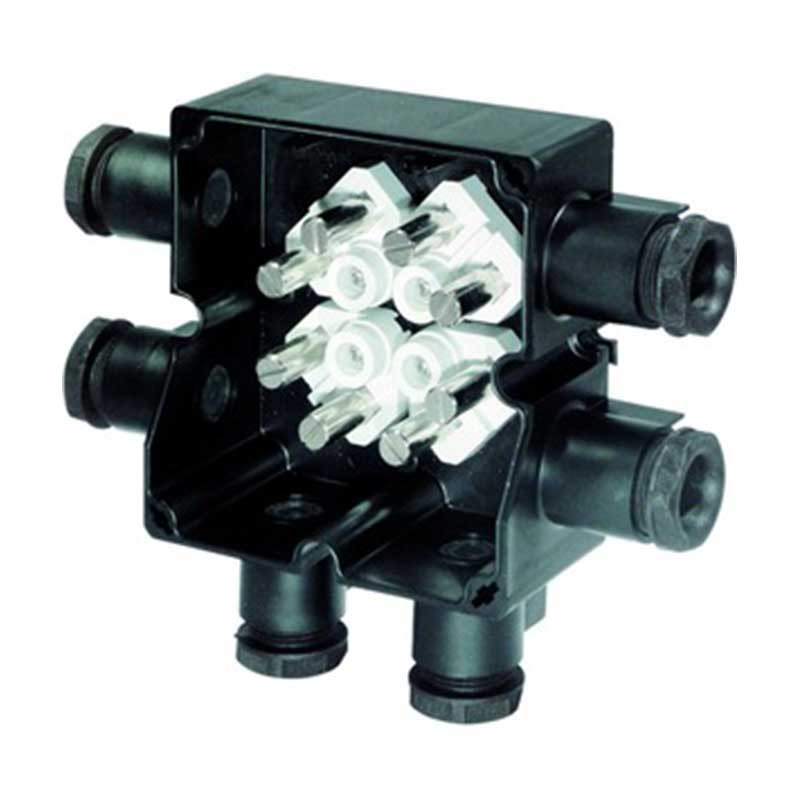

Polyamide GHG junction box 791.02
€0.00
Tax excluded
Strong points:
A complete safety:
- Robust construction
- No corrosion possible
- Ex e plots with internal spring to prevent accidental loosening of drivers
- Suitable for all gas groups: IIA, IIB, IIC and all types of dust: IIIA, IIIB, IIIC
- Safe use in zones 1, 2, 21 and 22
Performance and reliability:
- Versions for armed cables equipped with an internal brass metal plate, with ISO 20 threaded inputs
- Light and compact
- Cover with waterproof screw
- Possibility of fast mounting and toolless thanks to mounting plates sold separately
- Delivered fully assembled, ready to be connected
Customs Code:85369095
Country of origin :DE
Weight:0.5 kg
Stock:Available within 48 to 72 hours*
Cable entries
Configuration
Rupture de stock
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The robust polyamide construction of the 791 series polyamide junction boxes offers good resistance to chemicals and shocks. They are particularly suitable for lighting circuits, with a connection capacity of up to 6 mm2 on plots. This small ATEX derivation box is available at competitive prices.
