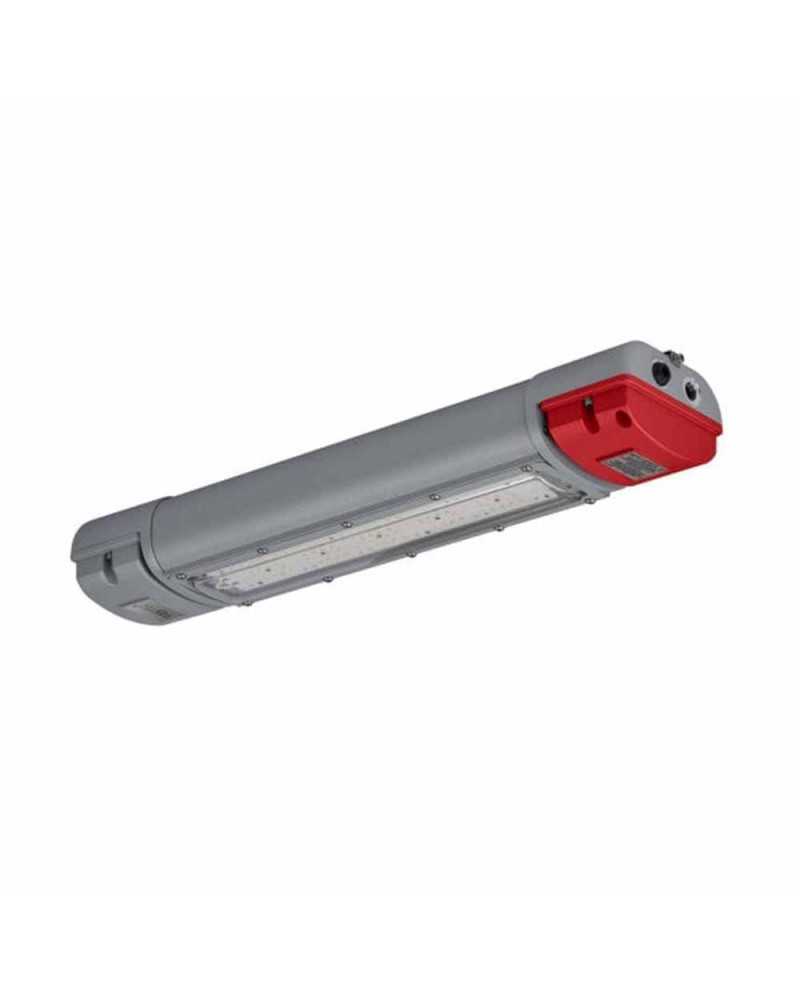

SPARTAN Linear WL84 Zone 2 Emergency 3564 Lumens

Key features:

  • ATEX and IEC Ex approved - Zone 2 (Gas) and Zone 22 (Dust)
  • UKCA approved
  • Intelligent Emergency variants - up to 100% light output
  • Tri- color LED indicator
  • Ultra Long Life LED
  • High Lumen Output LED
  • Fully Retrofitable
  • Easy Installation and Maintenance
  • Battery Back-up
  • Wide Operating Temp -20 ° to + 50 °
  • Zone 1 and Industrial Variants available
  • 5 Year Warranty

HS Code: 94054039
Country of origine: UK
Weight: 6kg
Availability: Disponible sous 22 jours*

  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy

The SPARTAN Linear range is designed for new hazardous area installations or to retrofit existing fluorescent installations which require high performance, reliable, White-Light illumination. Using field-proven, long-life LED technology, the WL84 Linear is globally certified for all Zone 2 applications requiring battery back-up. This 'Intelligent Emergency' variant also self-tests the emergency battery to proactively monitor and maintain the overall health status of the luminaire and communicates via a tri-color LED. The overall dimensions, fixing centers and gland entries are compatible with common 2x18W fluorescents, with lumen output and light distribution also offering a direct replacement. CoolXtrude Thermal management technology ensures a lifetime of 10 years + while providing a lumen output of up to 3564 delivered lumens. All SPARTAN luminaires come with an industry leading 5 year warranty.

Data sheet

Certificate(s)
ATEX, IECEX, UL/CSA
Suitable for
Area 2/22
Protection against gas explosion
II2 GD Ex e mb op is IIC T5 Gb
Protection against dust explosion
Ex tb op is IIIC T75°C Db
Material
Epoxy powder coated marine grade aluminum
Ambiant temperature
-40°C à +55°C
Power supply
110-254V 50/60Hz AC only - Low voltage: 18-48V AC and 18-69V DC - Extra low voltage: 12V AC/DC
Version
Standard
Power consumption (W)
34W
Luminous flux
2500 lm
Color temperature
6,000K+
Cable entries
2xM20 as standard (other on request), delivered with an ATEX / IECEx blanking plug
Dimensions
775x 108x 174mm
