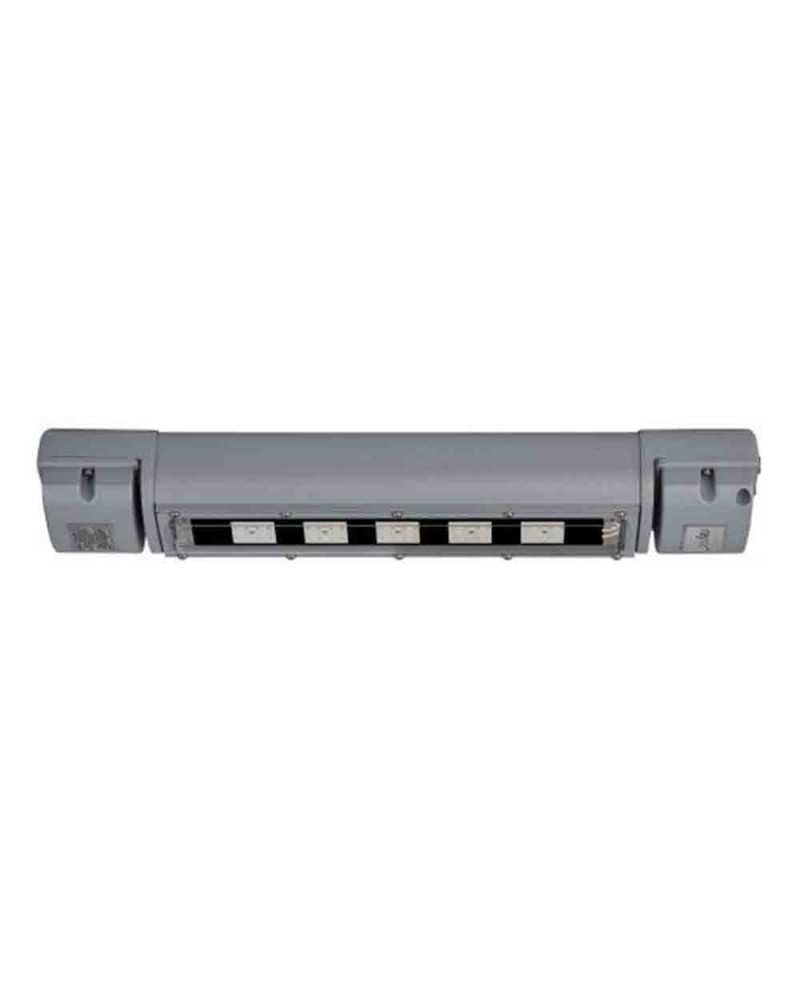

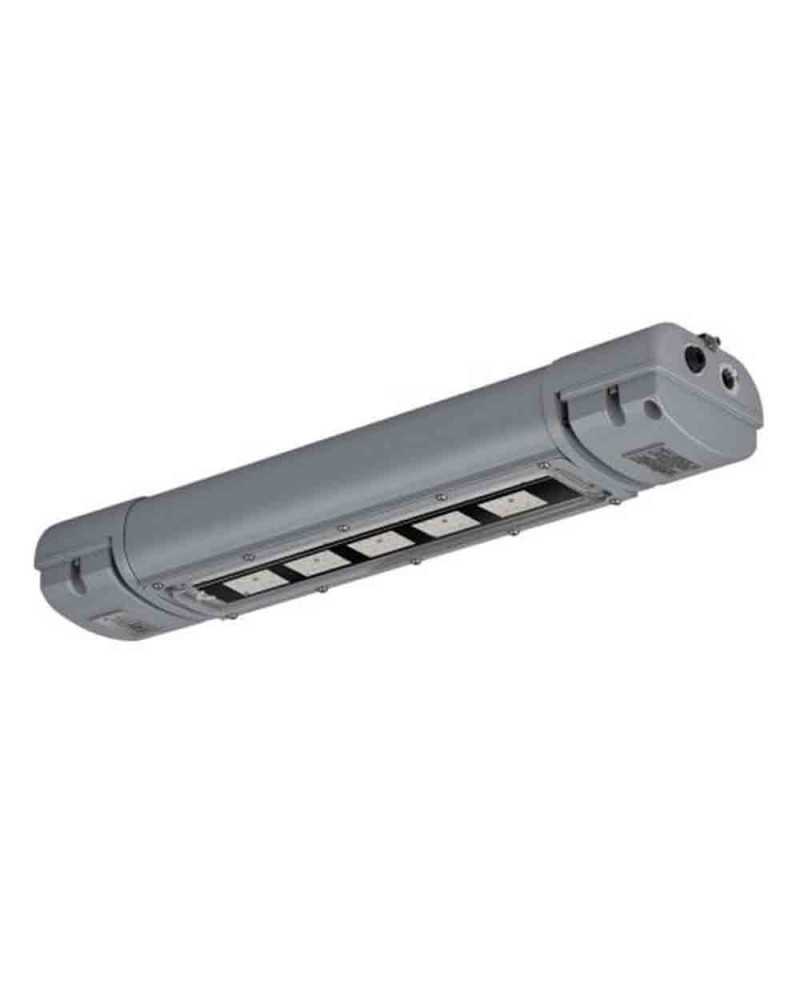

SPARTAN Linear WL84 Linear Zone 1 3065 Lumens
Out of stock
Key features:
- LED very long life
- UL / CSA approvals, including C1D2 and ABS
- Low consumption (29W)
- ATEX and IECEx Zone 1 approvals
- Zone 2 variant available
- Power output high performance 3050 lm
Security policy
Delivery policy
SPARTAN Zone 1 Linear Luminaires are ATEX and IECEx approved and rated for T4, T5 and T6 environments/locations. Designed for both new installations or to retrofit existing installations the overall dimensions, fixing centres and gland entries are compatible with commonly used traditional Ex e 2x18W or 2x36W fluorescent luminaires. The lumen output and light distribution will allow a direct, easy replacement to traditional fluorescent luminaires allowing the customer to access all the benefits of LED lighting and making regular lamp changes no longer necessary. Available in both standard and emergency versions.
Data sheet
- Certificate(s)
- ATEX
- Suitable for
- Area 1/21
- Ambiant temperature
- -40°C to +55°C
- Version
- Standard
- Power consumption (W)
- 29W
- Luminous flux
- 3065 lm
- Color temperature
- 6,000 K+
- LED type
- PLATINUM SMT Leds

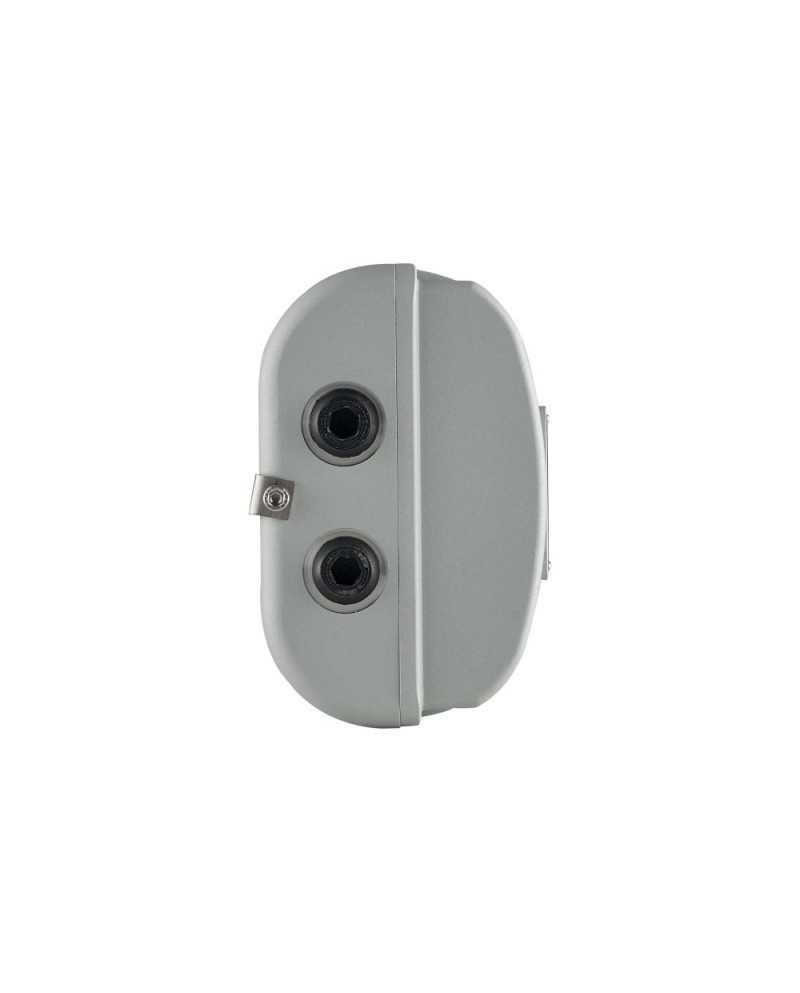

- Cable entries
- 2xm20 in standard (other on request), delivered with ATEX / Iecex 3/4 ̈NPT plug in standard on C1D2
- Dimensions
- 772 x 108 x 174mm
