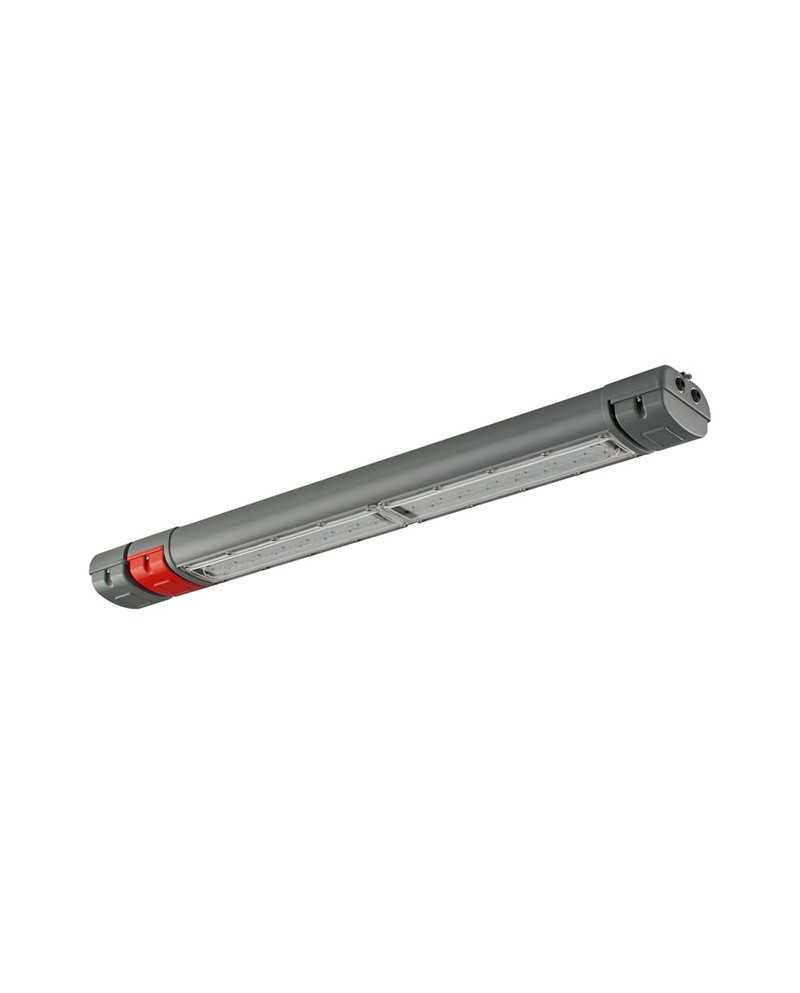

SPARTAN LINEAR WL168 Zone 2 Emergency 7048lm
€0.00
Tax excluded
Key features:
- ATEX and IEC Ex approved - Zone 2 (Gas) and Zone 22 (Dust)
- Intelligent Emergency variants - up to 100% light output
- Tri-color LED indicators
- Ultra Long Life LED
- High Lumen Output LED
- Fully Retrofitable
- Easy Installation and Maintenance
- Battery Back-up
- Wide Operating Temp -20 ° to + 50 °
- Zone 1 Variants available
- 5 Year Warranty
Code douanier : 94054039
Pays d'origine : UK
Poids : 10kg
Stock : Disponible sous 22 jours*
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The SPARTAN Linear range is designed for new installations or to modernize existing fluorescent installations in explosive atmospheres that require high performance and reliable white lighting. Using Raytec's long-lasting LED technology, proven on the ground, the WL168 emergency line is globally certified for all applications in Zone 2 requiring a backup battery. The dimensions above all, the fixation centers and the press-to-tip inputs are compatible with the current 2x36W fluorescents, with a light output and a light distribution also offering direct replacement. Thermal management technology ensures a lifetime of 10 years and more, while providing a luminous flux of up to 6,800 lumens. All SPARTAN luminaires have a 5-year warranty.
| Ambiant temperature | -20° to +50° |
|---|---|
| Power supply | 110-254 Vac |
| Version | Helped |
| Power consumption (W) | 56W |
| Luminous flux | 7048 lm |
| Color temperature | 6500K |
| LED type | PLATINUM SMT Leds |
| Cable entries | 2 x M20 with shutter caps |
| Dimensions | 1414 x 108 x 174mm |
Installation guide
SPARTAN Linear Zone 2 Installation Instructions.pdf
Certificate IECEX CML 15.0068
Iecex Certificate - SPARTAN Zone 2 Linear.pdf
Certificate IECEX CML 16.0052
Iecex CML16.0052 issue 0.pdf
