SPARTAN WL168 Zone 2 LED linear 7048 lm
€0.00
Tax excluded
Key features:
- ATEX and IEC Ex approved - Zone 2 (Gas) and Zone 22 (Dust)
- Ultra Long Life LED
- High Lumen Output LED
- Fully Retrofitable
- Easy Installation and Maintenance
- Emergency Variants
- Wide Operating Temp -40 ° to + 60 ° (-20 ° to + 50 ° emergency variants)
- Zone 1 Variants available
- 5 Year Warranty
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

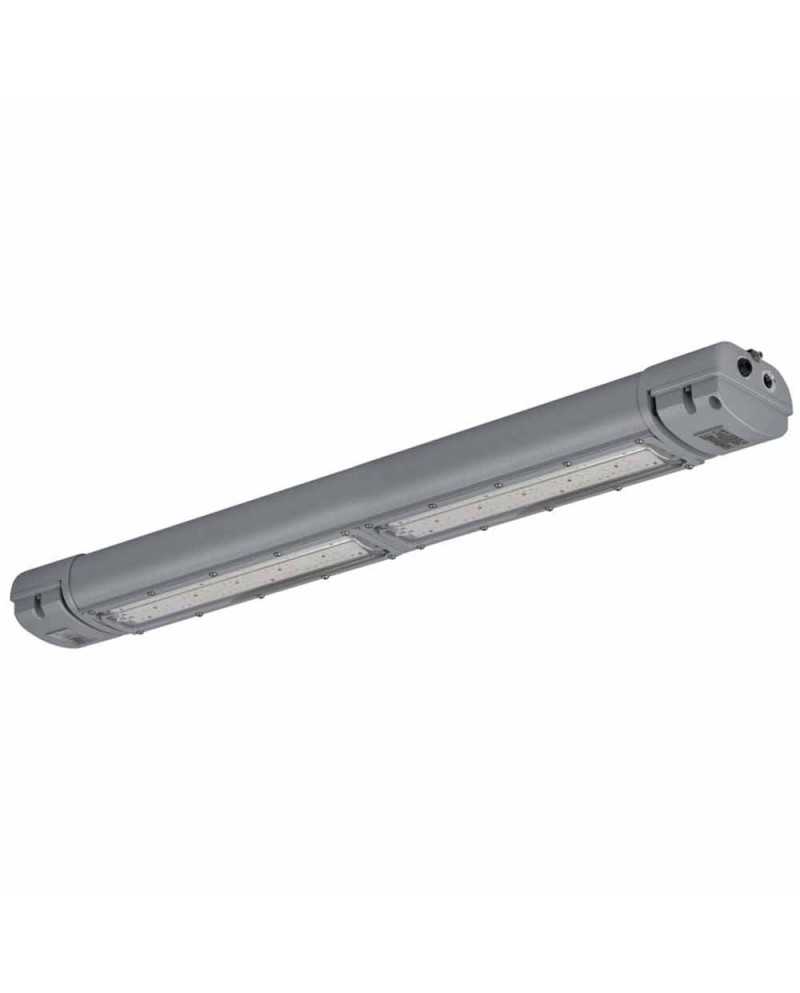

SPARTAN Zone 2 Linear Luminaires are ATEX and IECEx approved and rated for T4, T5 and T6 environments/locations. Designed for both new installations or to retrofit existing installations the overall dimensions, fixing centres and gland entries are compatible with commonly used traditional Ex e 2x18W or 2x36W fluorescent luminaires. The lumen output and light distribution will allow a direct, easy replacement to traditional fluorescent luminaires allowing the customer to access all the benefits of LED lighting and making regular lamp changes no longer necessary. Available in both standard and emergency versions.
| Certificate(s) | ATEX |
|---|---|
| Suitable for | Area 2/22 |
| Ambiant temperature | -40°C to +60°C |
| Power supply | 110-254 Vac |
| Power consumption (W) | 49W |
| Luminous flux | 7048 lm |
| Dimensions | 1407 x 108 x 174mm |
| Net Weight | 9 Kg |
Installation guide
SPARTAN Linear Zone 2 Installation Instructions.pdf
Certificate IECEX CML 15.0068
Iecex Certificate - SPARTAN Zone 2 Linear.pdf
Certificate IECEX CML 16.0052
Iecex CML16.0052 issue 0.pdf
