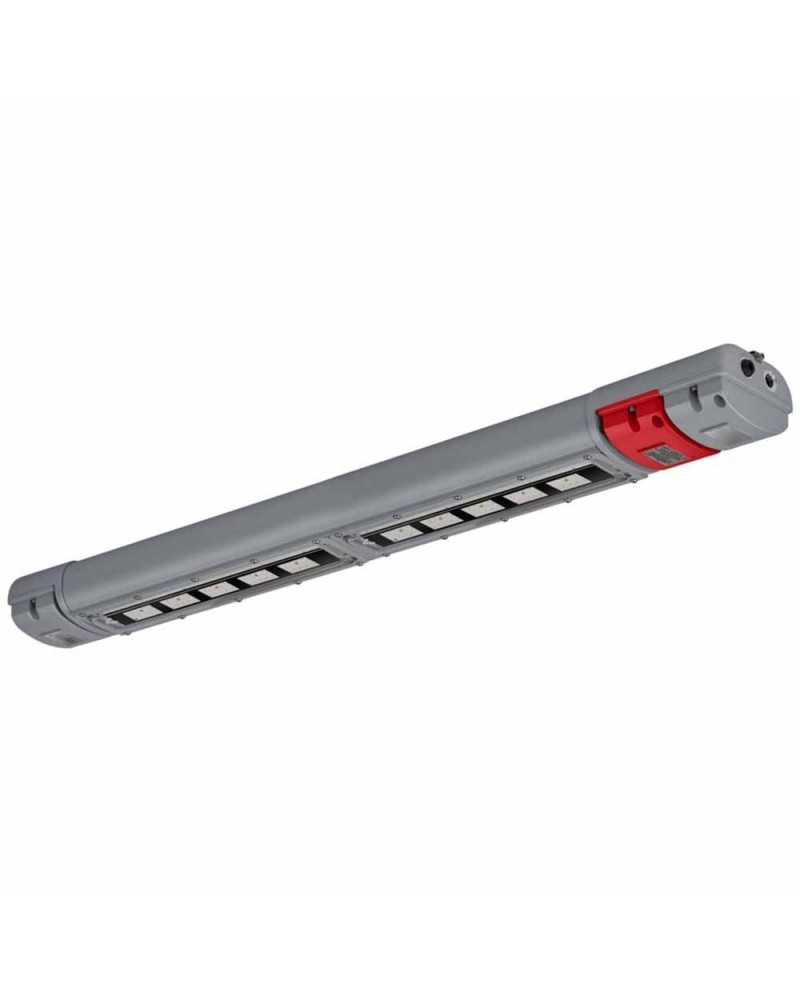

SPARTAN LINEAR WL168 intelligent emergency Zone 1 6130lm
Out of stock
Key features:
- ATEX and IEC Ex approved - Zone 1 (Gas) and Zone 21 (Dust)
- Intelligent Emergency variants - up to 100% light output
- Tri-color LED indicators
- Ultra Long Life LED
- High Lumen Output LED
- Fully Retrofitable
- Easy Installation and Maintenance
- Battery Back-up
- Wide Operating Temp -20 ° to + 50 °
- Zone 2 Variants available
- 5 Year Warranty
HS Code: 94054039
Origin : UK
Weight : 10kg
Availability : 22 working days*
Security policy
Delivery policy
The SPARTAN Linear range is designed for new installations or to modernize existing fluorescent installations in explosive atmospheres which require high performance and reliable white lighting. Using proven long-life LED technology, the WL168 Linear Emergency System is certified for all Zone 1 applications requiring battery backup. Overall dimensions, fixing centers and cable gland entries are compatible with common 2x36W fluorescents, with light output and light distribution also offering direct replacement. Thermal management technology guarantees a lifespan of 10 years and more, while providing a light output of up to 6,130 lumens. All SPARTAN luminaires have a 5 year warranty.
Data sheet
- Certificate(s)
- ATEX
- Suitable for
- Area 1/21
- Ambiant temperature
- -20° à +55°
- Power supply
- 110-254 Vac
- Version
- Backed up (12V Ni/Cd battery)
- Power consumption (W)
- 56W
- Luminous flux
- 6130 lm
- Color temperature
- 6,000 K+
- LED type
- PLATINUM SMT LEDs
- Cable entries
- 2xM20 as standard (other on request), delivered with an ATEX / IECEx blanking plug
- Dimensions
- 1414 x 108 x 174mm
