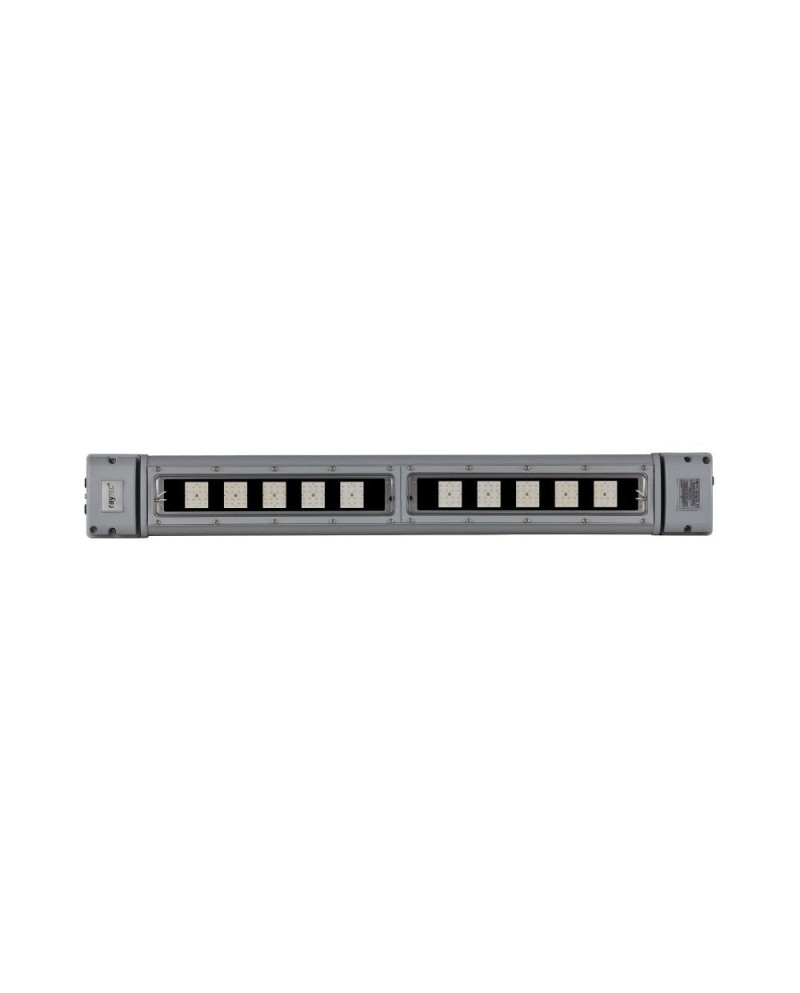

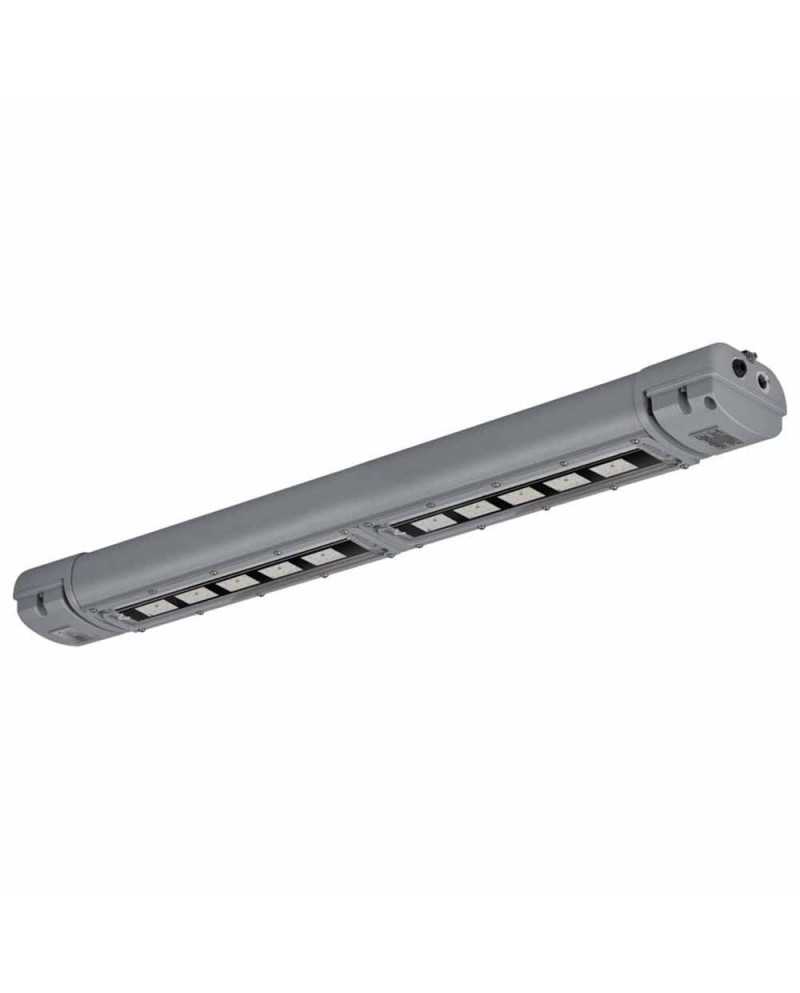

SPARTAN WL168 LED linear Zone 1 6130 lm
Out of stock
Key features:
- ATEX and IEC Ex approved - Zone 1 (Gas) & Zone 21 (Dust)
- UKCA approved
- Ultra Long Life LED
- High Lumen Output LED
- Fully Retrofitable
- Easy Installation and Maintenance
- Wide Operating Temp -40 ° to + 60 ° (-20 ° to + 50 ° for emergency variants)
- Zone 2 Variants available
- 5 Year Warranty
- UK Designed and Manufactured
Security policy
Delivery policy
The SPARTAN Linear range is designed for new installations in hazardous areas or to retrofit existing fluorescent installations that require high performance and reliable white light lighting. Using long life LED technology, the WL168 linear is globally certified for all Zone 1 applications. Overall dimensions, fixing centers and cable gland entries are compatible with common 2x36W fluorescent lamps, with luminous flux and high performance. light distribution also offering direct replacement. CoolXtrude ™ thermal management technology ensures a lifespan of 10 years or more while providing a light output of up to 6240 lumens delivered. All SPARTAN luminaires come with an industry leading 5 year warranty.
Data sheet
- Certificate(s)
- ATEX
- Suitable for
- Area 1/21
Area 2/22 - Ambiant temperature
- -40°C to +60°C
- Power consumption (W)
- 49W
- Luminous flux
- 6130 lm
- Dimensions
- 1407 x 108 x 174mm
- Net Weight
- 9 Kg
