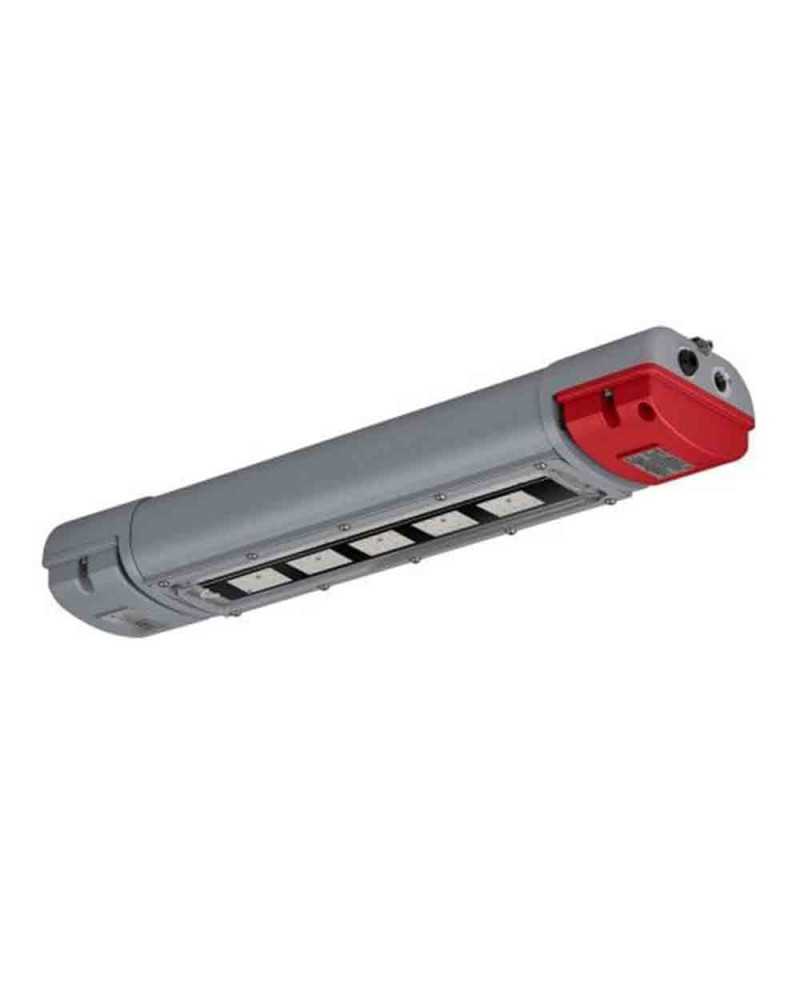

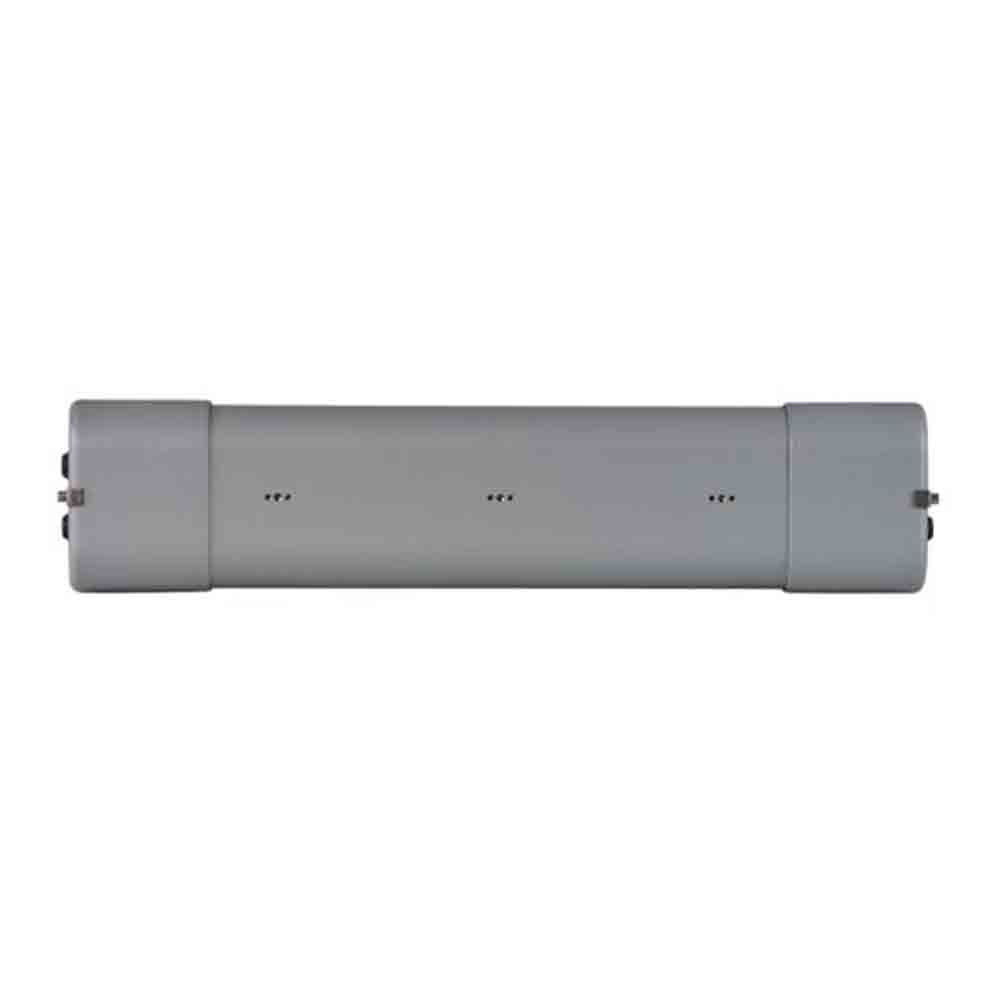

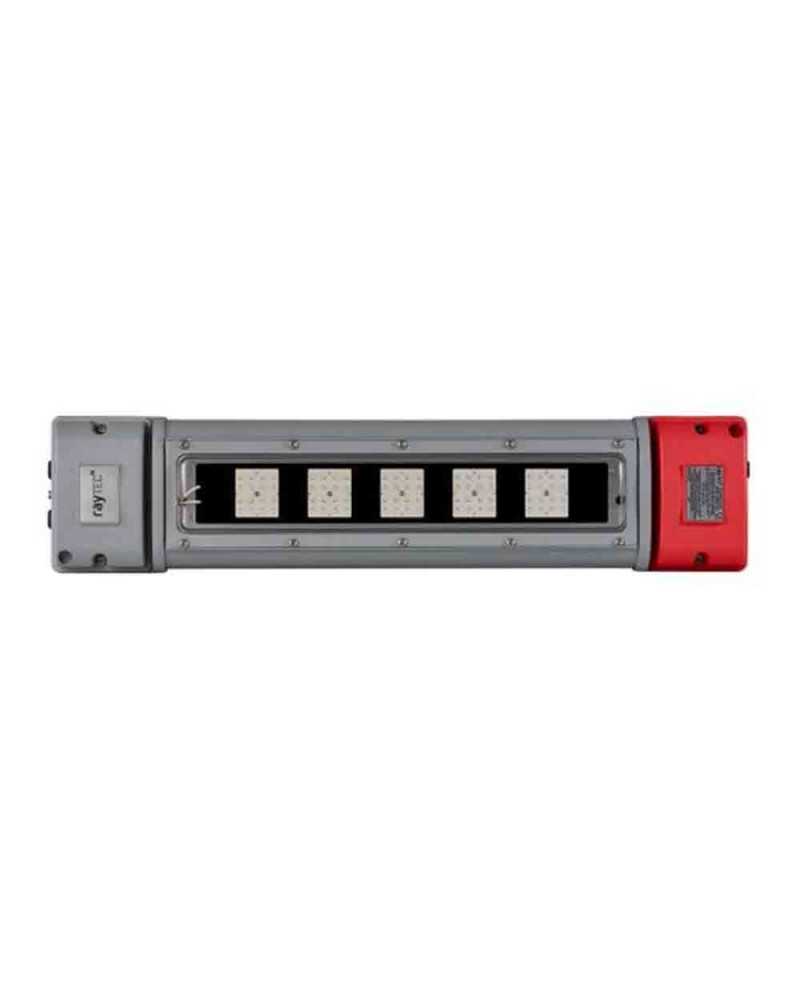

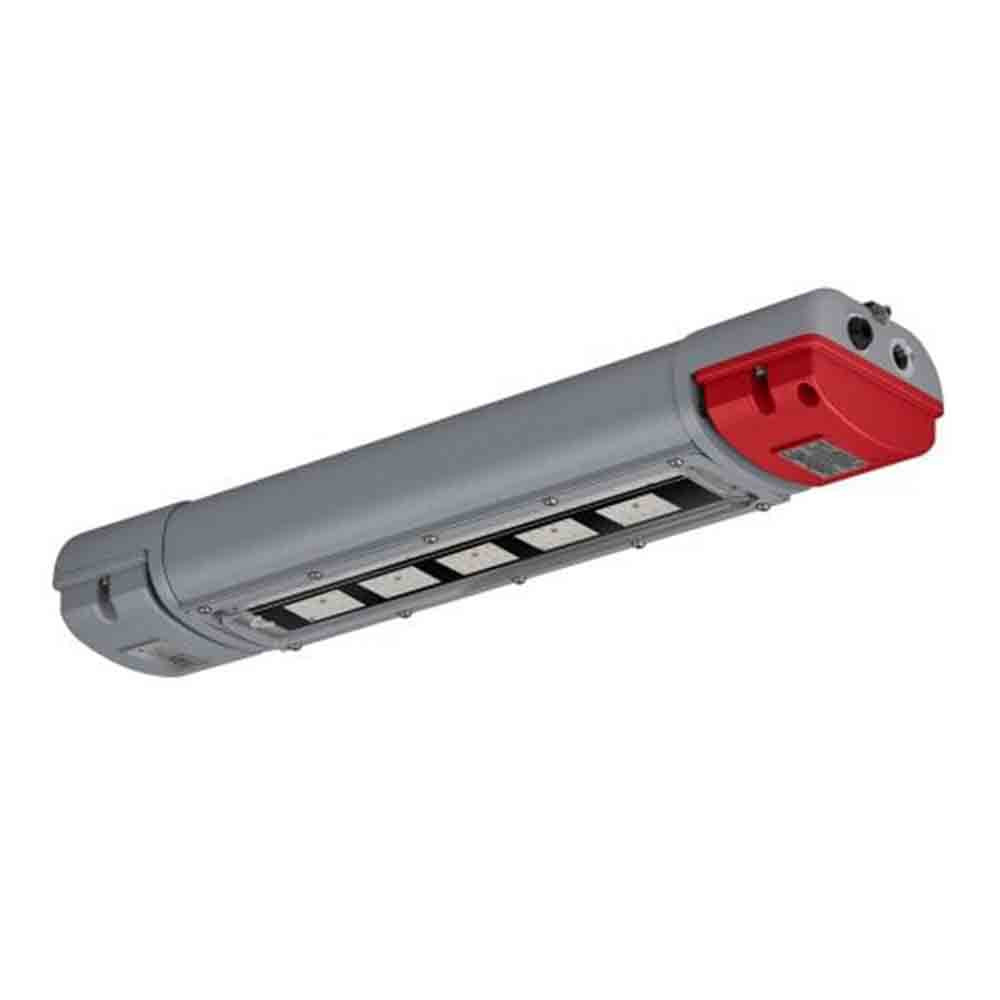

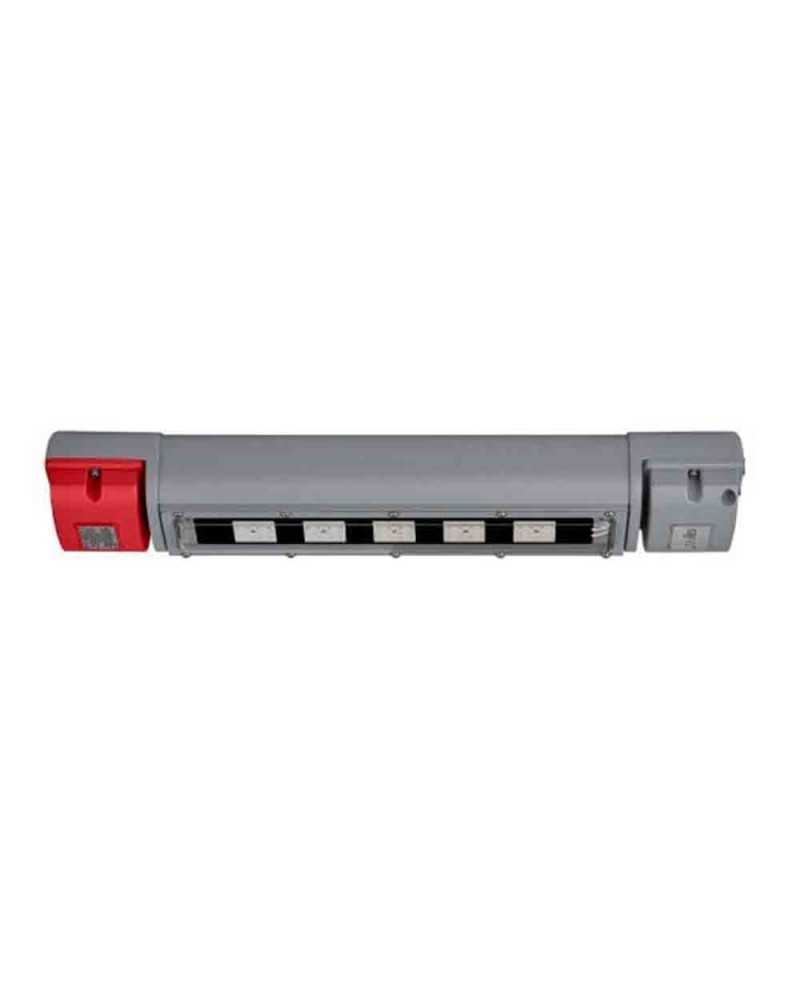

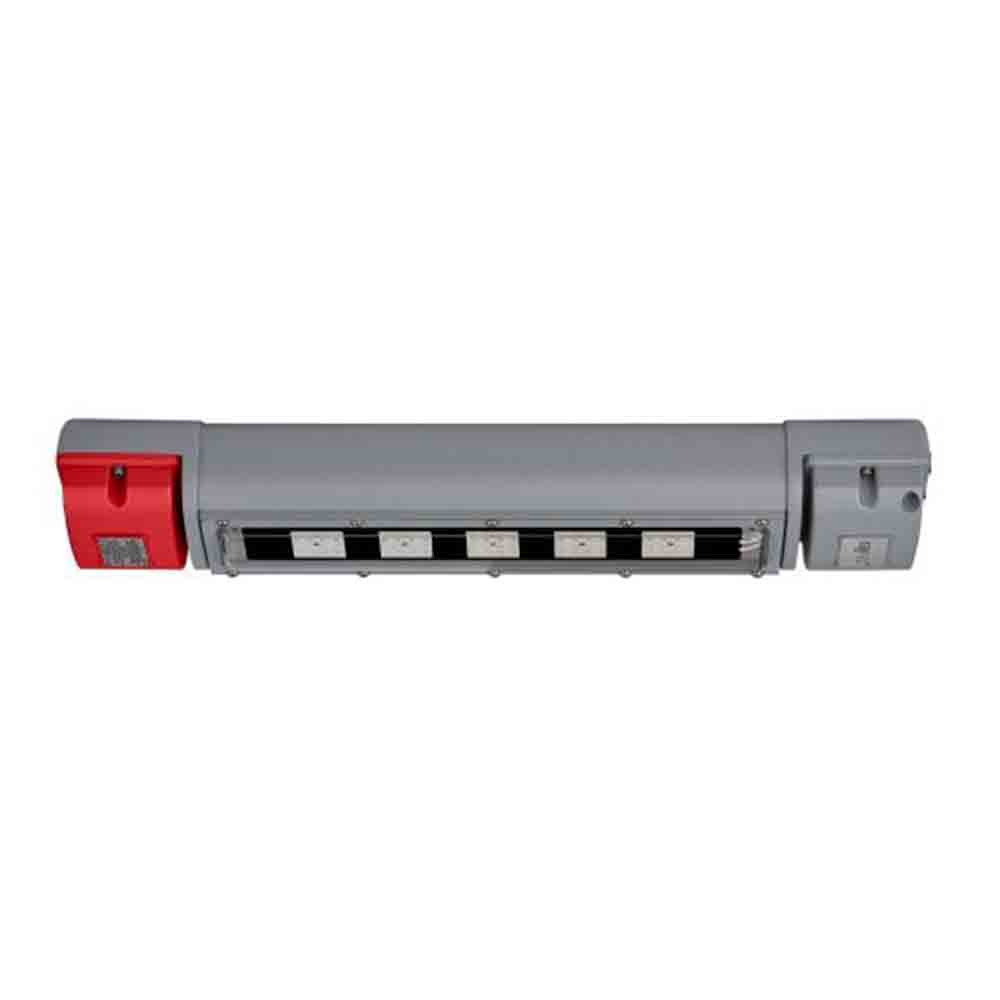

SPARTAN Linear WL84 Zone 1 Emergency 3,065 Lumens

Key features:

  • ATEX and IEC Ex approved - Zone 1 (Gas) and Zone 21 (Dust)
  • UKCA approved
  • Intelligent Emergency variants - up to 100% light output

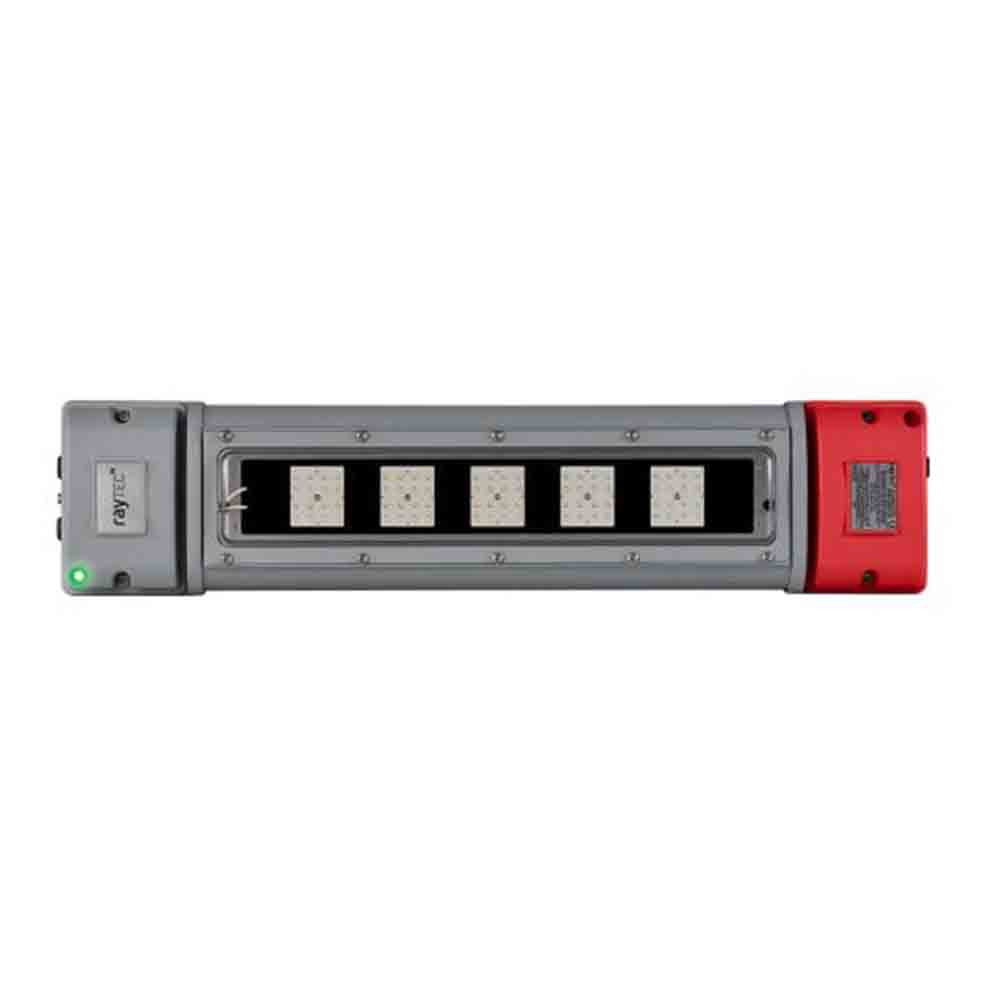

  • Tri- color LED indicator
  • Ultra Long Life LED
  • High Lumen Output LED
  • Fully Retrofitable
  • Easy Installation and Maintenance
  • Battery Back-up
  • Wide Operating Temp -20 ° to + 50 °
  • Zone 2 Variants available
  • 5 Year Warranty

HS Code: 94054039
Country of origine: UK
Weight: 7kg
Availability: Disponible sous 22 jours*

  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy

The SPARTAN Linear range is designed for new hazardous area installations or to retrofit existing fluorescent installations which require high performance, reliable, White-Light illumination. Using field-proven, long-life LED technology, the WL84 Linear is globally certified for all Zone 1 applications requiring battery back-up. This 'Intelligent Emergency' variant also self-tests the emergency battery to proactively monitor and maintain the overall health status of the luminaire and communicates via a tri-color LED. The overall dimensions, fixing centers and gland entries are compatible with common 2x18W fluorescents, with lumen output and light distribution also offering a direct replacement. CoolXtrude Thermal management technology ensures a lifetime of 10 years + while providing a lumen output of up to 3,065 delivered lumens. All SPARTAN luminaires come with an industry leading 5 year warranty.

Data sheet

Suitable for
Area 1/21
Protection against gas explosion
II2 GD Ex e mb op is IIC T5 Gb
Protection against dust explosion
Ex tb op is IIIC T75°C Db
Ambiant temperature
-20°C to +50°C
Power supply
110-254 Vac
Version
Helped
Power consumption (W)
32W
Luminous flux
3065 lm
Color temperature
6500K

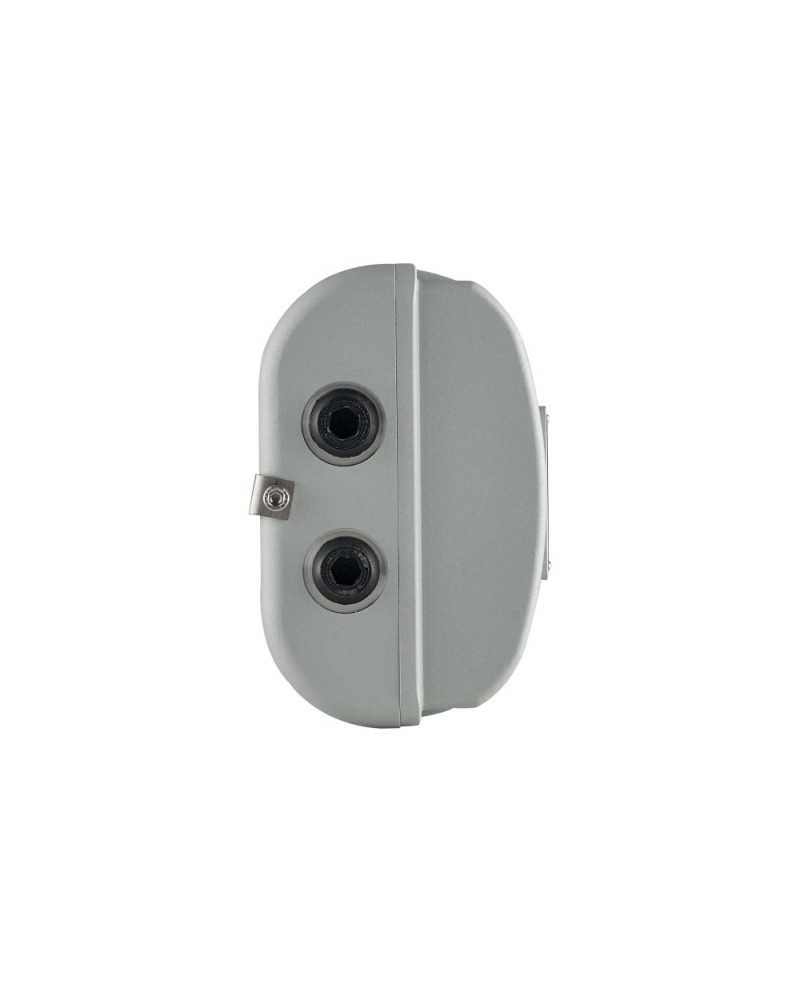

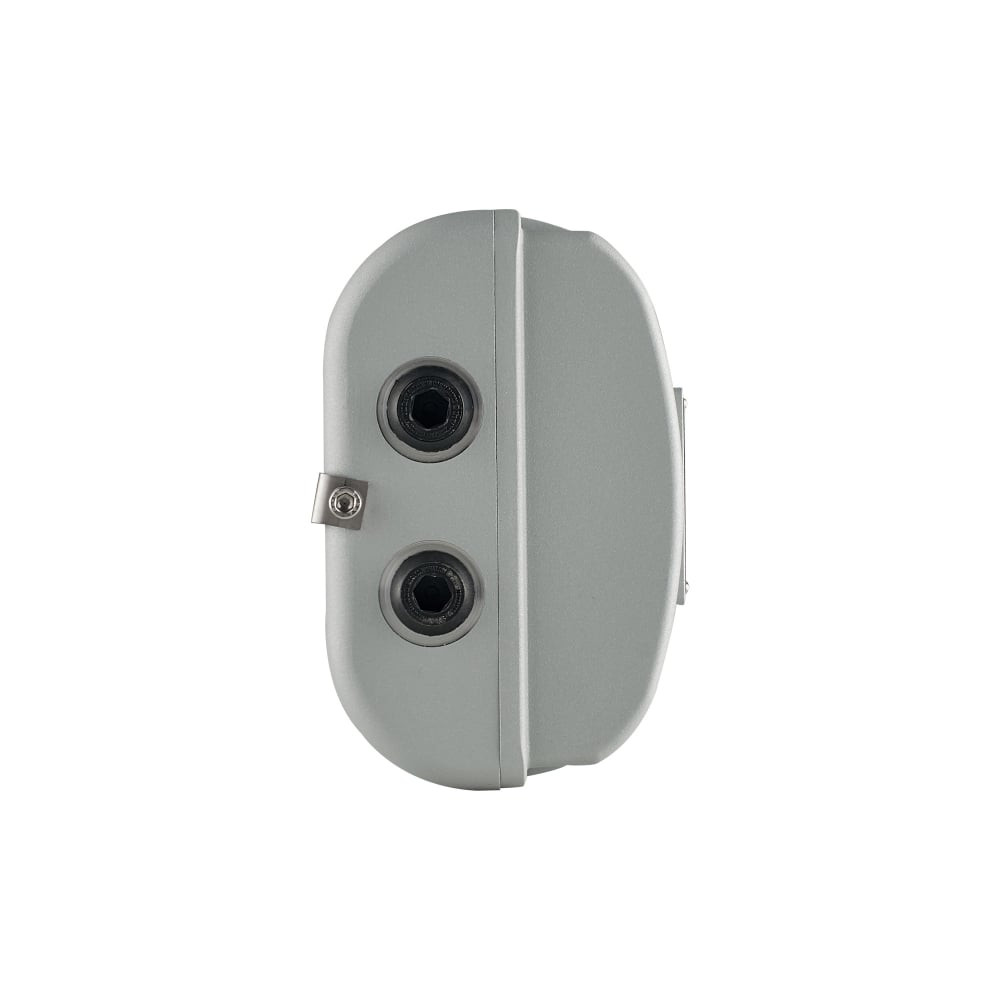

Cable entries
2xm20 in standard (other on request), delivered with ATEX / Iecex 3/4 ̈NPT plug in standard on C1D2
