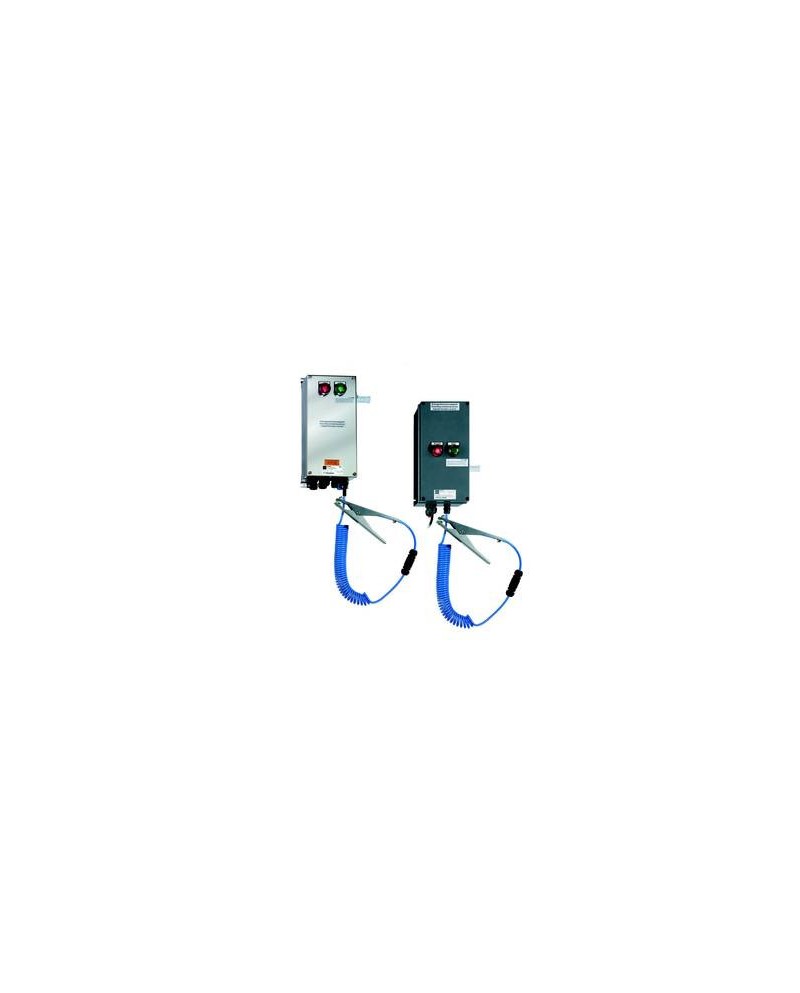

8485 Series Grounding Monitoring Devices
Out of stock
Key features:
- Controlled electrostatic grounding during loading for tank trucks, rail vehicles and Big-Bag
- Continuous monitoring of correct earthing
- Possible operator errors are prevented by object detection (on trucks)
- Aluminum housing protected against water jets IP65
- Up to four potential-free two-way contacts for signaling
- Insulated hooking point for clamps
- Ambient temperature -55 to +60 ° C
Security policy
Delivery policy
The Series 8485 ATEX certified Grounding Clamp is designed to safely discharge static electricity in potentially explosive areas (gases, vapors and mists).
The Grounding Monitor provides electrostatic grounding of road tankers and rail vehicles (Rev. C) during the loading of flammable liquids and powdered products.
At the same time, the device monitors the state of the electrostatic grounding. This ensures that the electrostatic charge remains at a safe level and that there is no risk of explosion due to an uncontrolled discharge of this energy.
Data sheet
- Certificate(s)
- ATEX
- Degree of protection
- IP65
- Material
- Aluminium
- Ambiant temperature
- -55°C to +60°C
- Net Weight
- 12 Kg
