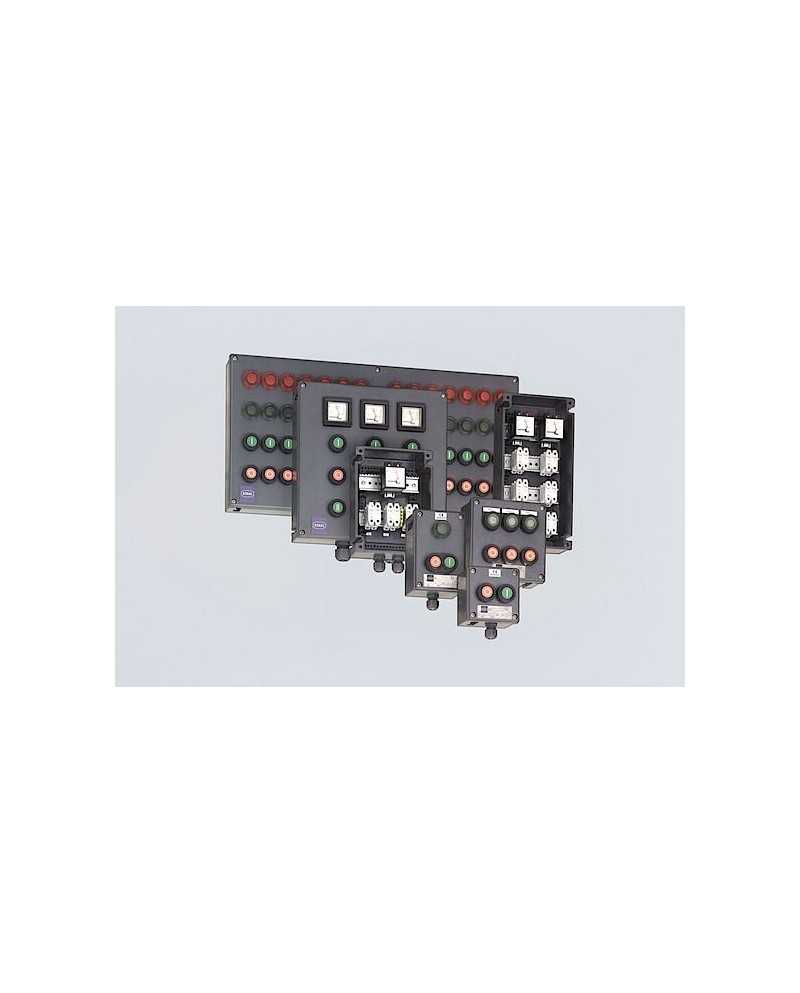

Ex-proof control unit in polyester resin 8146/5075
Out of stock
Key features:
- Glass-fiber reinforced polyester resin housing
- 8 different sizes and several depths
- Modular enclosure combinations
- Equipment with components for quick assembly: Control devices, Indicator light, Illuminated push-button, Control switch, Ammeter, Voltmeter
Security policy
Delivery policy
- Convenient Ex e control boxes made of glass-fiber reinforced polyester resin
- Customized equipment possible with control stations, signaling devices, illuminated pushbuttons, control switches, ammeters, voltmeters
- Optional: flanges, cover hinge, flange housing, brass plates, metal cable glands
Convenient Ex e control boxes made of glass-fiber reinforced polyester resin
Customized equipment possible with control stations, signaling devices, illuminated pushbuttons, control switches, ammeters, voltmeters
Optional: flanges, cover hinge, flange housing, brass plates, metal cable glands
8146 series control boxes are available in 8 basic sizes and different box heights and can be combined to form larger units. They are made of high quality glass fiber reinforced polyester resin. We equip them according to customer requirements with different components; flanges, cover hinges or metal cable glands are among other options available as accessories.
Data sheet
- Certificate(s)
- ATEX
- Degree of protection
- IP66
- Material
- Reinforced polyester (GRP)
- Ambiant temperature
- -60°C to +70°C
- Frequency
- 50/60 Hz
- Net Weight
- 2.3 Kg
