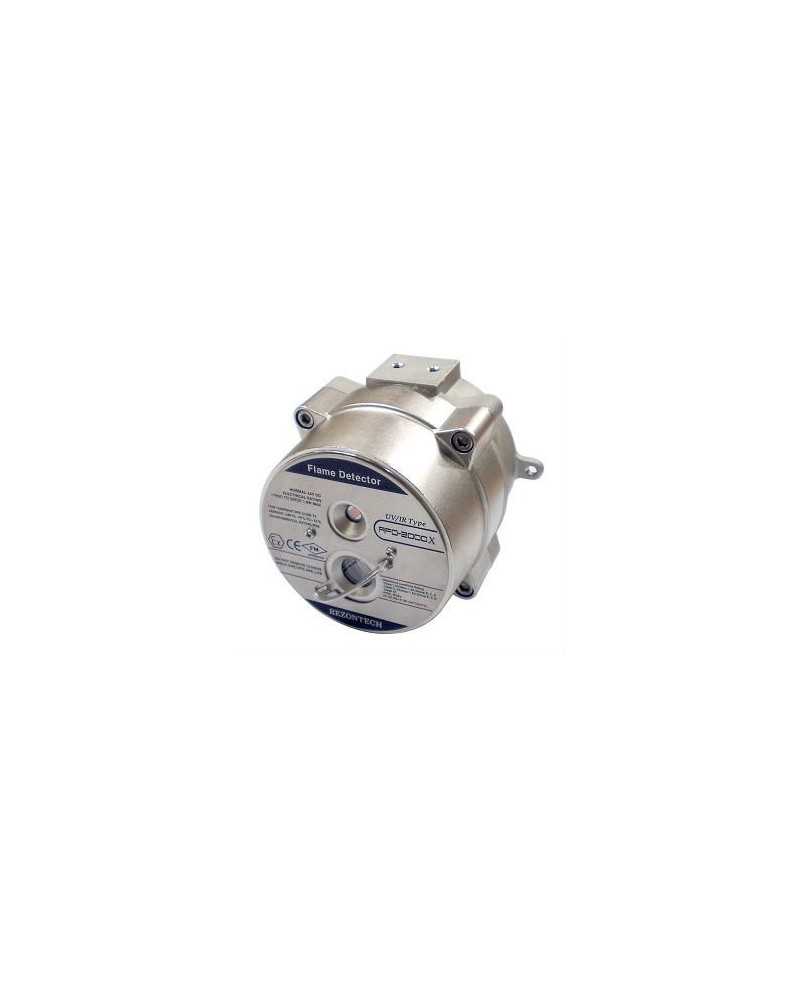

UVIR flame detector | RFD-2000X
Out of stock
RFD-2000X is a UV/IR type flame detector with international certifications.
Identify fire when UV and IR sensors simultaneously detect the presence of a flame.
Maximum detection range of 30 meters with a 90 degree cone of vision.
Allows operation in hazardous areas.
User selectable output options include relays, 4-20 output and RS-485.
Security policy
Delivery policy
- Type: ultraviolet and infrared
- Detection range: 100 ft (30 m) for N-heptane fire
- Exploration field: horizontal 90°, vertical 90°
- Operating temperature range: -40 to +75
- Storage: -50 to +80
- Humidity range: 0 to 95% relative humidity
- Performance: FM3260, EN 54-10 (CPR, LPCB)
- Explosion-proof:
- Ex d IIB+H2 T6 IP67(KGS)
- Class I Division 1 Groups B, C and D (FMUS)
- Classes II/III Division 1 Groups E, F and G (FMUS)
- T6: -40°F (-40°C) to +176°F (+75°C)(FMUS)
- IP67/NEMA 4X(FMUS)
- II 2 G Ex db IIB+H2 T6 (ATEX)
- Ex db IIB+H2 T6 (IECEx)
- Waterproof: IP67 (KGS)
- Yield
- Relay
- Fire alarm, breakdown alarm, warning alarm
- A or B selectable, 28 VDC, 2A
Data sheet
- Certification
- ATEX
Iecex
SIL2 - System type
- Addressable
- Operating temperature range
- -40 to +70°C
