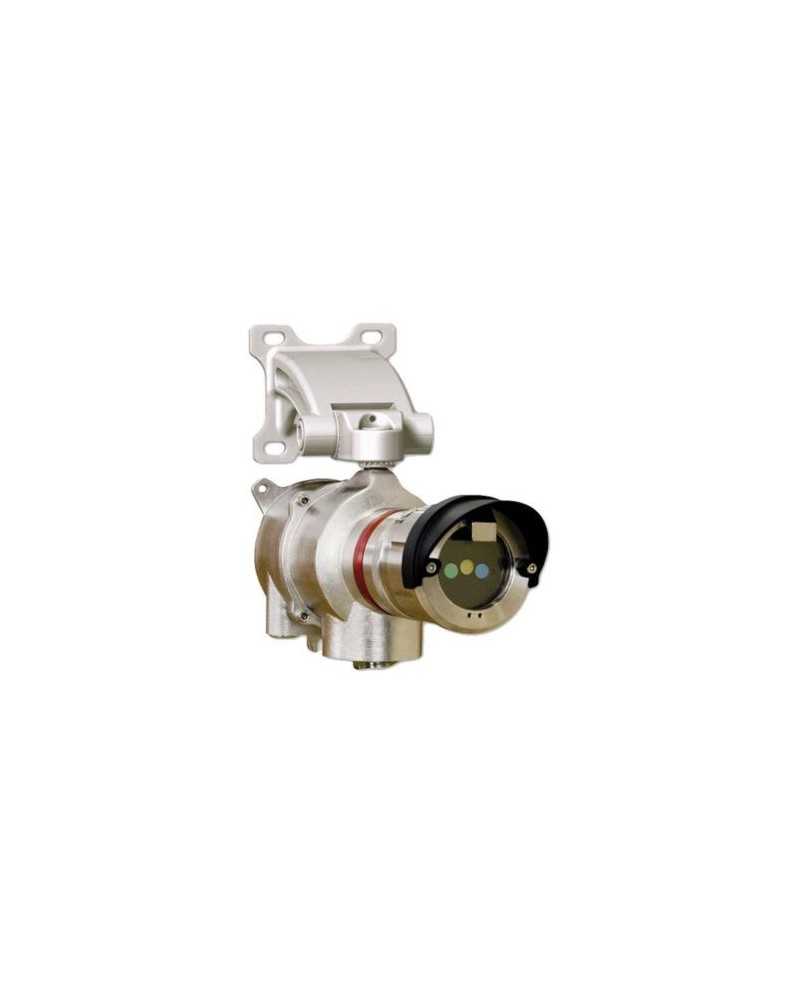

Fixed flame detector DF-TV7 Series
€0.00
Tax excluded
This equipment has several types of outputs and is suitable for use in SIL2 level applications. It is compatible with many fire, detection or API control panels. The detector is completely configurable using the wireless communication terminal (TLU) or via HART(R) communication, providing great flexibility to the user. The TLU allows you to adjust the response time, sensitivity and configuration of the outputs, and can be used in hazardous areas to carry out tests on optical, electronic parts and outputs.
All MultiFlame DF-TV7 detectors have built-in continuous optical self-tests to ensure safe operation. The TLU600 makes detector setup and testing easy, and can be operated remotely to avoid the need for a test light. It also makes it possible to control the optical parts of the detector and the outputs (current, relay) in a classified area.
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
- Immunity against nuisance alarms
- Wide field of vision
- Continuous optical self-tests
- Relay outputs, 4-20mA, 0-22mA, as standard
- Optional 4-20 mA / Hart output
- SIL 2
| Implementation | Industry |
|---|---|
| Certification | ATEX EN54-10 Iecex |
| Suitable for | Area 1/21 Area 2/22 |
| Degree of protection | IP65 |
| Operating temperature range | -40 to +70°C |
