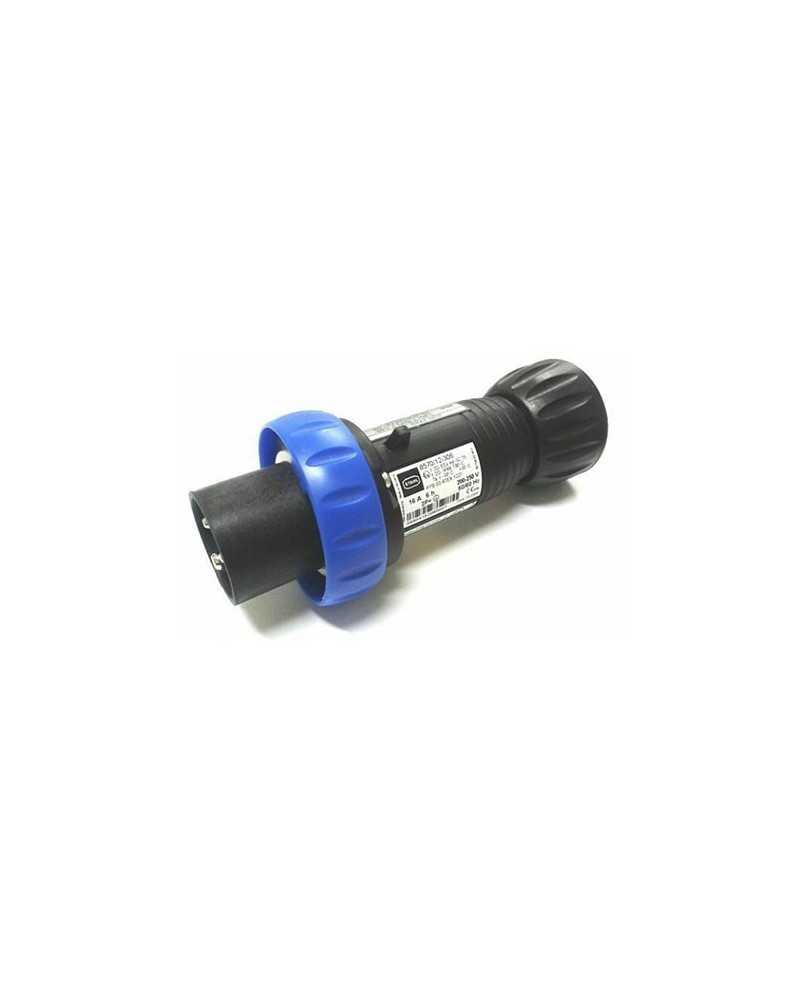

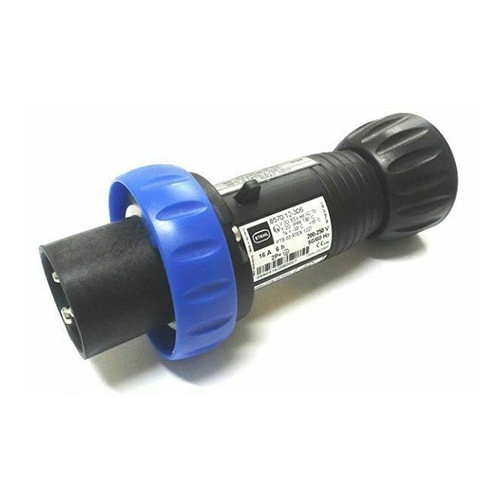

Plug 16A series 8570/12
Out of stock
Key features:
• No effect of the twisting forces of the wire on the joint
• Full compatibility between SolConeX and CES devices
• Variants for use in USA / Canada available on request
• Wide operating temperature range
• High resistance to mechanical impacts and shocks
• Perfect protection against the ingress of liquids and dust
• 3D data available for download from the website
Security policy
Delivery policy
SolConeX R. STAHL Series 8570/12 plugs for Zone 1/21 are 3, 4 or 5 pole versions up to 16 A.
The pins allow them to be inserted and removed quickly and easily. The swiveling strain relief facilitates install the cable. Self-cleaning and anti-corrosion pins made from high quality materials ensure a electric contact.
Data sheet
- Certificate(s)
- ATEX (PTB), Brazil (ULB), Canada / USA (UL), Canada (UL), China (CQST), EAC (LPE), Iecex (PTB), India (PESO), Korea (KGS), Taiwan (ITRI), United States (UL) Approval of vessel GL, RS
- Degree of protection
- IP66
- Ambiant temperature
- -50°C to +50°C
