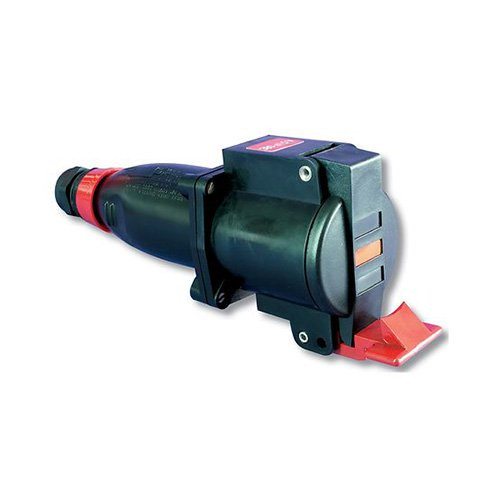

PRE Series: 32 A Plugs and Sockets

Applications:

• Plugs and sockets are used to power mobile or stationary electrical equipment, such as:

  - Lighting systems

  - Converter groups

  - Heating systems

  - Engines

  - Air conditioning units

  - Compressors

  - Pumps.

• For use in a corrosive atmosphere and installation in zone 1 - 2 and 21 - 22 in the petrochemical and gas industry, such as:

   - Refineries

  - Chemical and petrochemical plants

  - Pipelines

  - Loading docks

  - Onshore and offshore drilling installations

  - LNG Trains

  - Gas Compressor Stations.

Technical characteristics :

• The plugs and sockets are fitted with a system with a secure separation mechanism to ensure maximum protection in risk areas:

  - The contacts are separated in an explosion-proof chamber

  - The automatic cut-off of each phase is contained in a second explosion-proof chamber.

• The resistance to short-circuit currents is 20 kA, while the standard requires 10 kA.

• The identification of tensions is facilitated by a color code.

• The bases are fitted with a polarizer that accepts only ATX plugs (the other plugs cannot be inserted).

• ATX plugs can be used in standard sockets not intended for hazardous areas.

Standard materials

• Wall plinth: high mechanical resistance in polyester reinforced with glass fibers.

• Plug, mobile socket and built-in base: polyamide.
