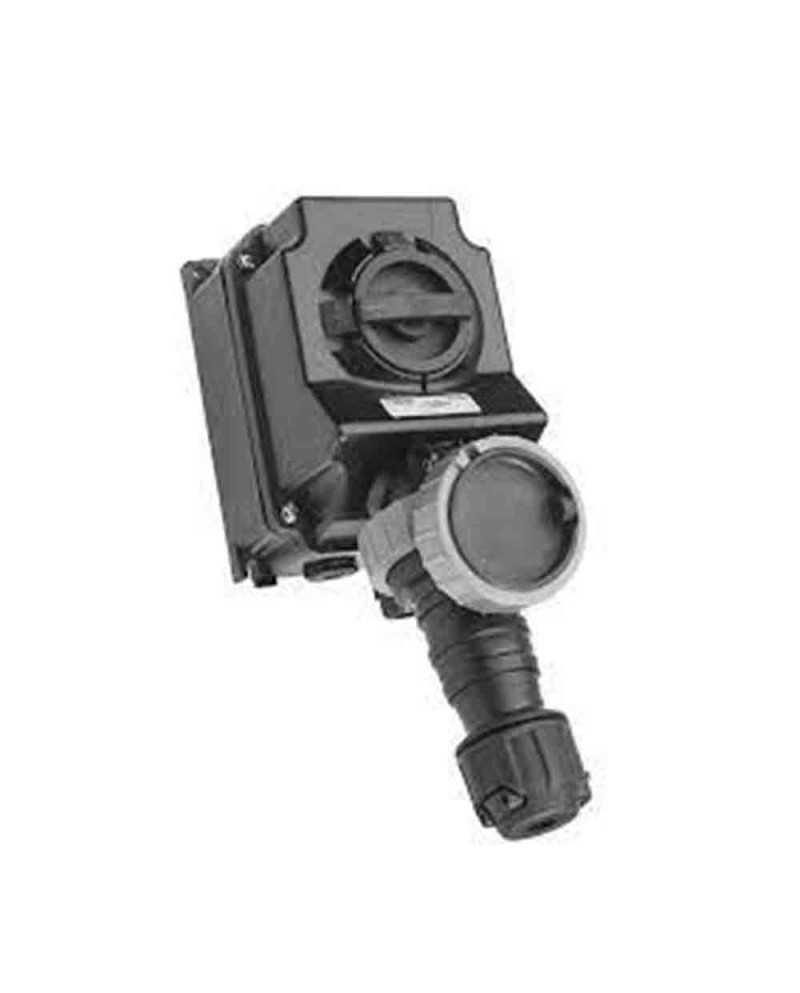

UPR series: 16A plug and socket with switch

Applications

Plugs and sockets are used to power mobile or fixed electrical equipment such as:

• Lighting systems
• Converter groups
• Heating systems
• Engines
• Air conditioning units
• Compressors
• Pumps

For use in corrosive atmospheres and installation in zones 1 - 2 and 21 - 22 in the petrochemical and gas industry, in particular in:

• Refineries
• Chemical and petrochemical plants
• Pipelines
• Loading docks
• Onshore and offshore drilling rigs
• LNG Trains
• Gas Compressor
• Stations

Technical characteristics

• Plugs and sockets are fitted with a system with a secure separation mechanism to ensure maximum protection in risk areas.
• A large ON / OFF control on the base allows a clear and visible identification of the status of the device (On or Off). • Low voltage sockets can be locked in position 0 (Off) and 1 (On).
• The identification of tensions is facilitated by a color code. • The bases are fitted with a polarizer that accepts only plugs of the same voltage.

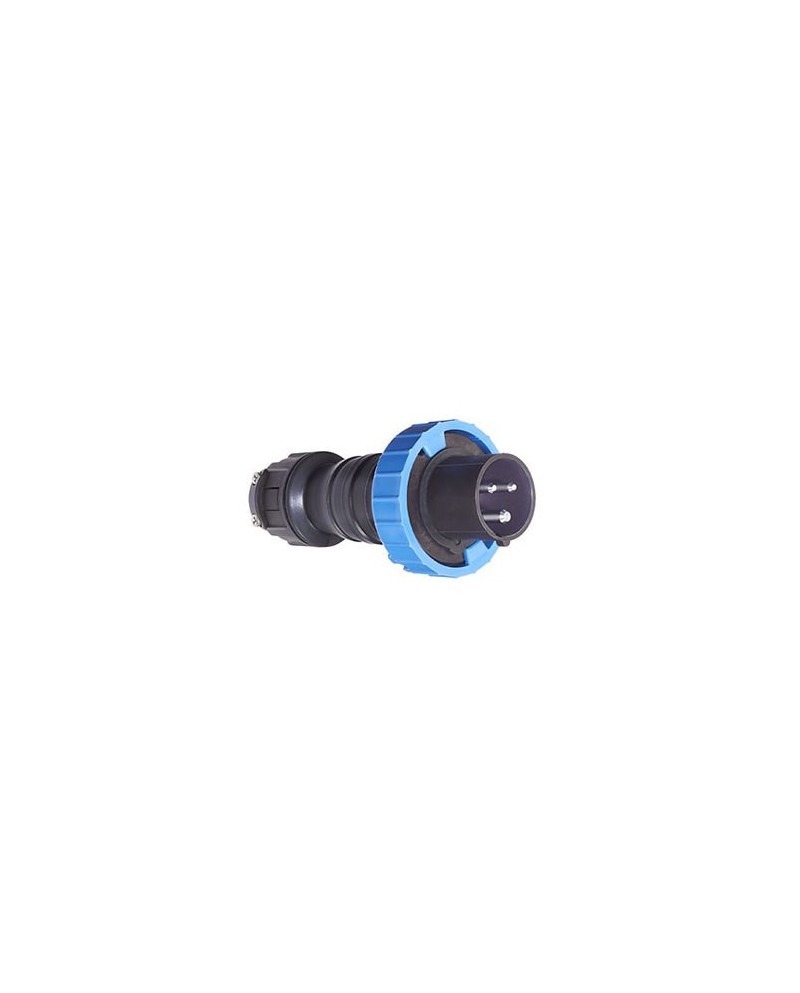

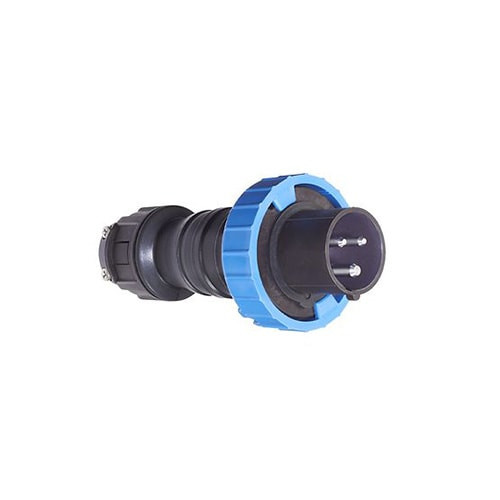

• The UPR series plugs can be used with sockets / sockets according to IEC 60309-2 in non-hazardous areas.
• Operating temperature -20 ºC to +55 ºC.

Standard materials

• Wall bases: Polyamide
• Sheet: Polyamide
