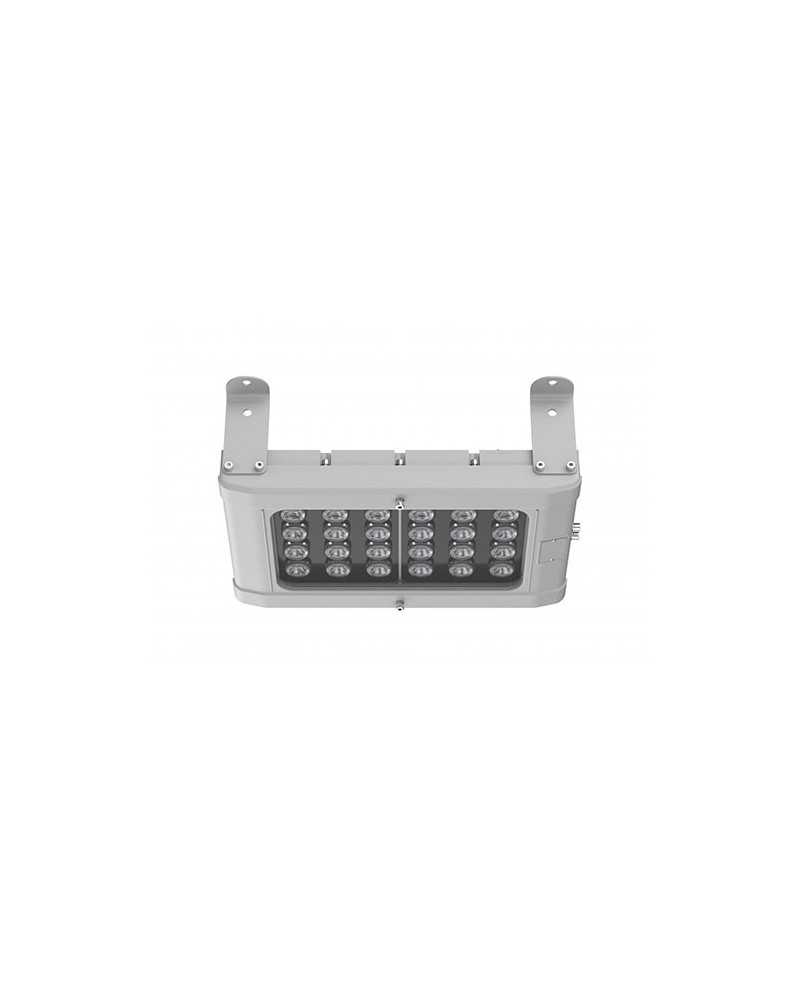

SPARTAN High Bay HPBY Zone 1/21
SPARTAN Bay HPBY
High Power High Bay Zone 1/21
- ATEX and IEC Ex approved – Zone 1
- Ultra Long Life LED
- High Lumen Output LED
- Easy Installation and Maintenance
- Extreme Durability and Toughness
- Wide Operating Temp -50° to +50°
- DALI/Dimming as Standard
- Remote Power Supply Variants Available
- Zone 2 Variants Available
- 5 Year Warranty
-
Security policy
-
-
Delivery policy
-
The SPARTAN High Power Flood range is designed for very large and open hazardous areas which require high performance, high reliability, White-Light illumination. Using A2S’s field-proven, long-life LED technology, the HPFL10K is globally certified for all Zone 1 applications. With DALI/dimming capabilities as standard, its unique modular design with removable PSU chassis also allows for the most flexible installation and easiest access and servicing. CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 25,000 delivered lumens. All SPARTAN luminaires come with an industry leading 5 year warranty.
Data sheet
- Ambiant temperature
- -50°C to +55°C
- Power supply
- 150-264 V ac/dc
- Power consumption (W)
- 120-300W
- LED type
- PLATINUM SMT Leds
