High Power Floodlight for zone 1-21

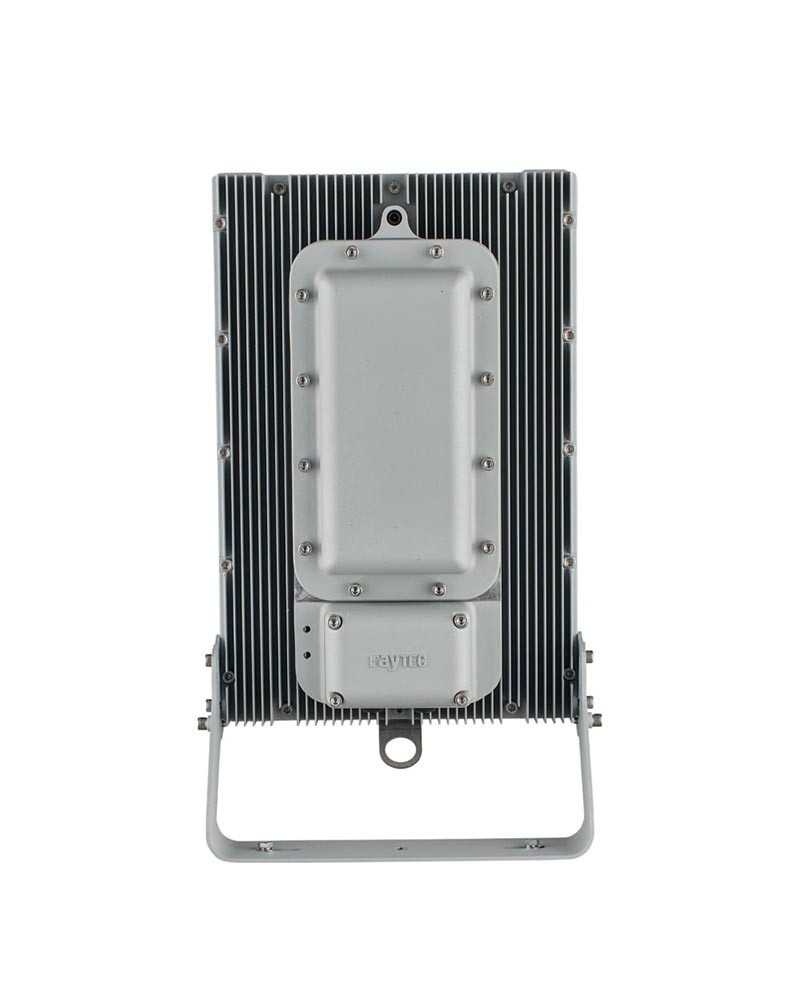

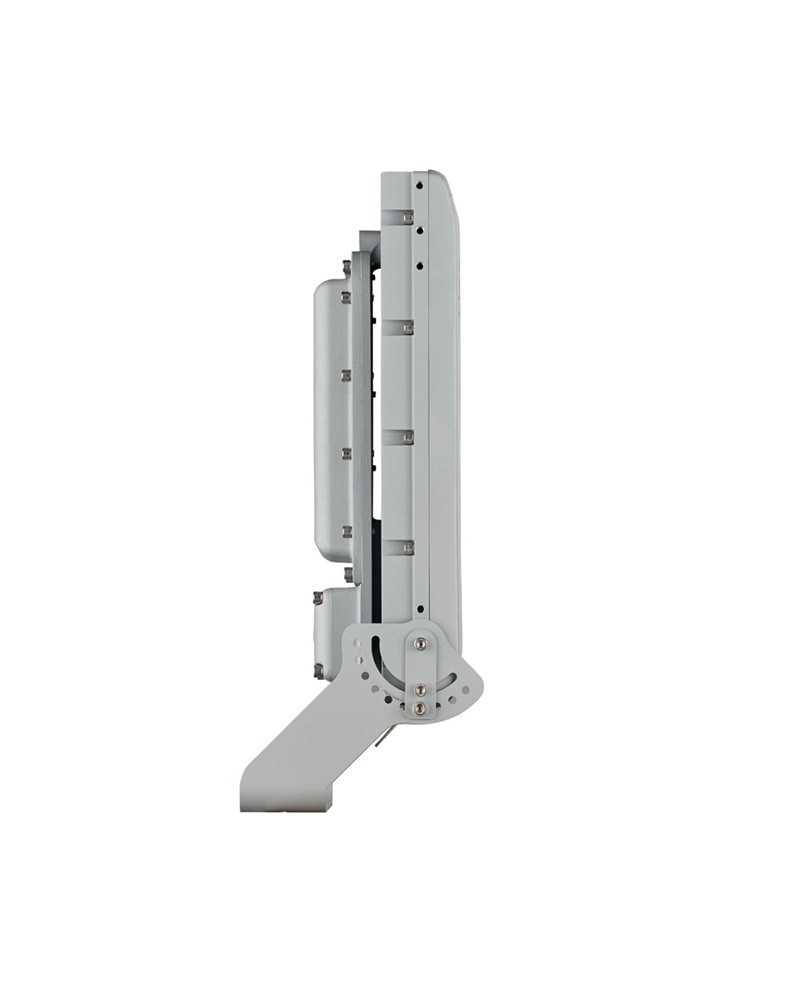

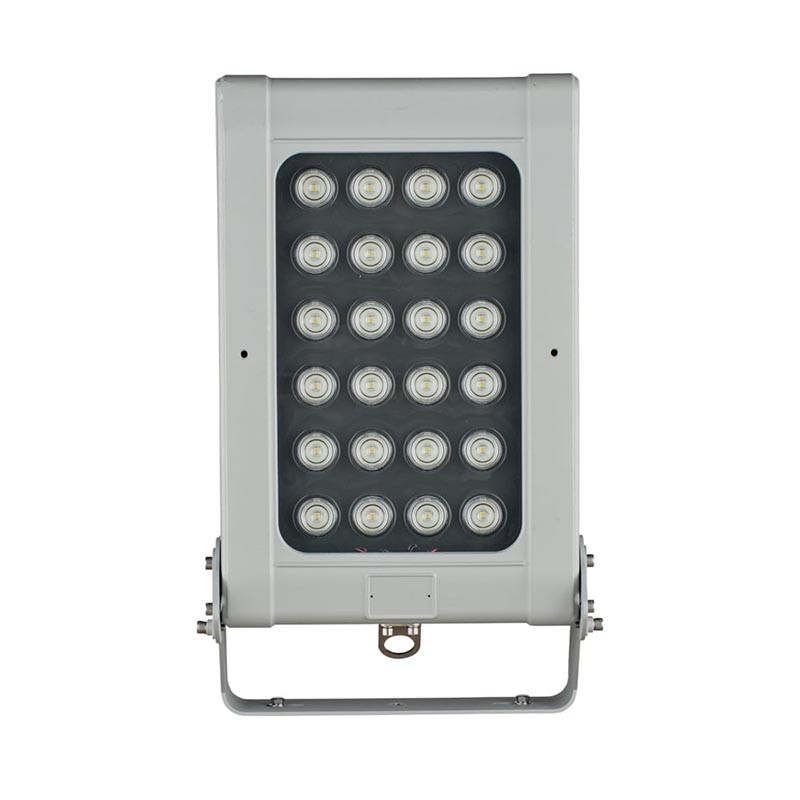

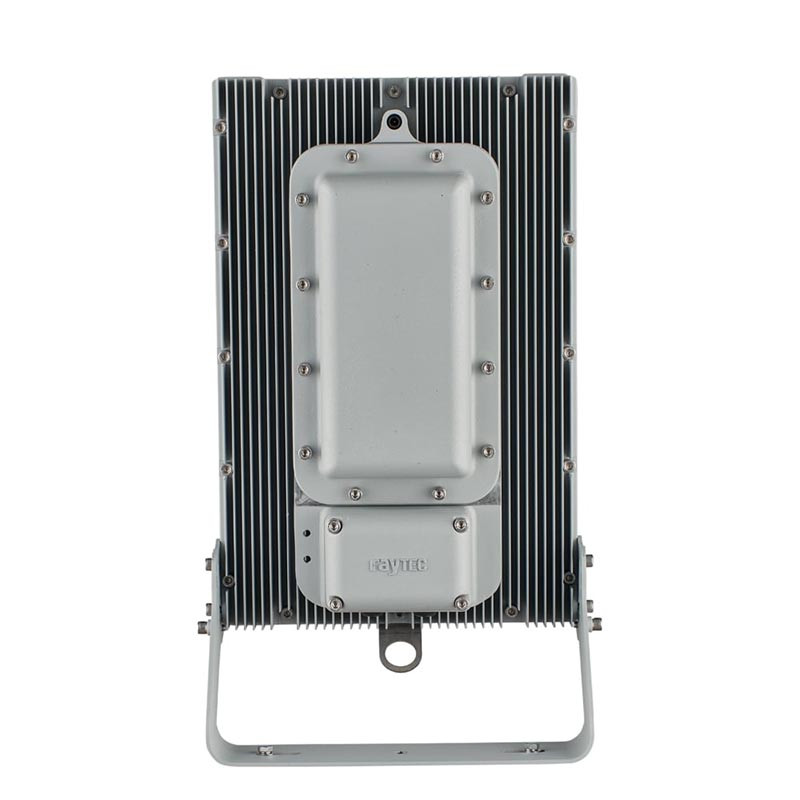

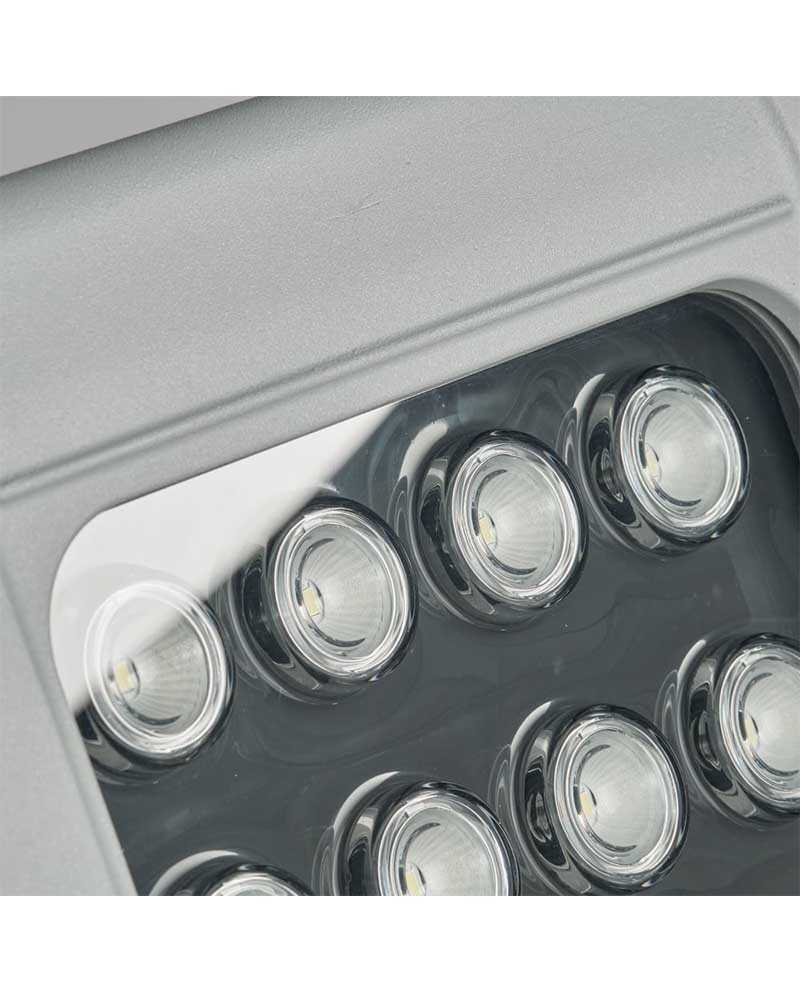

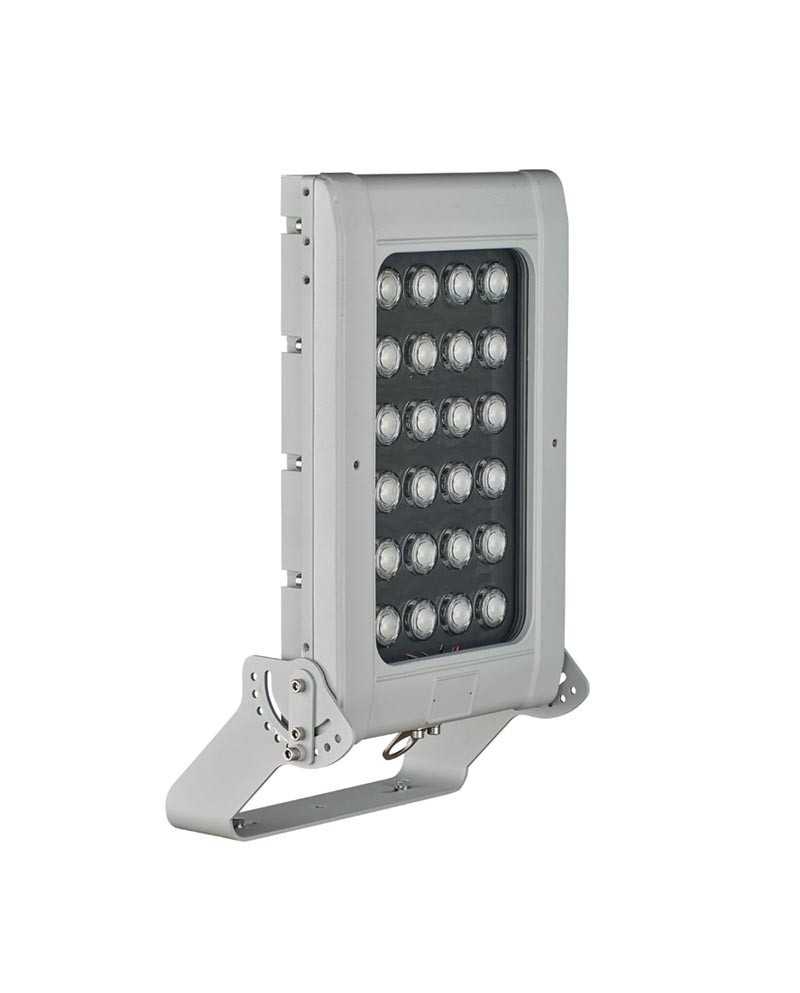

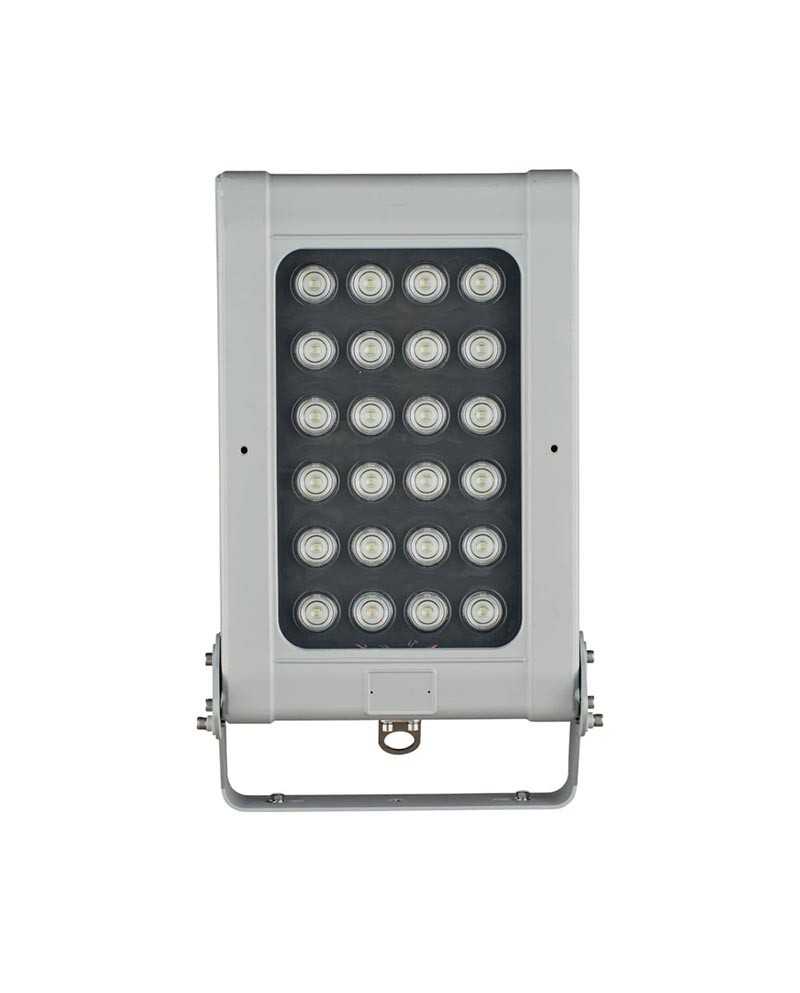

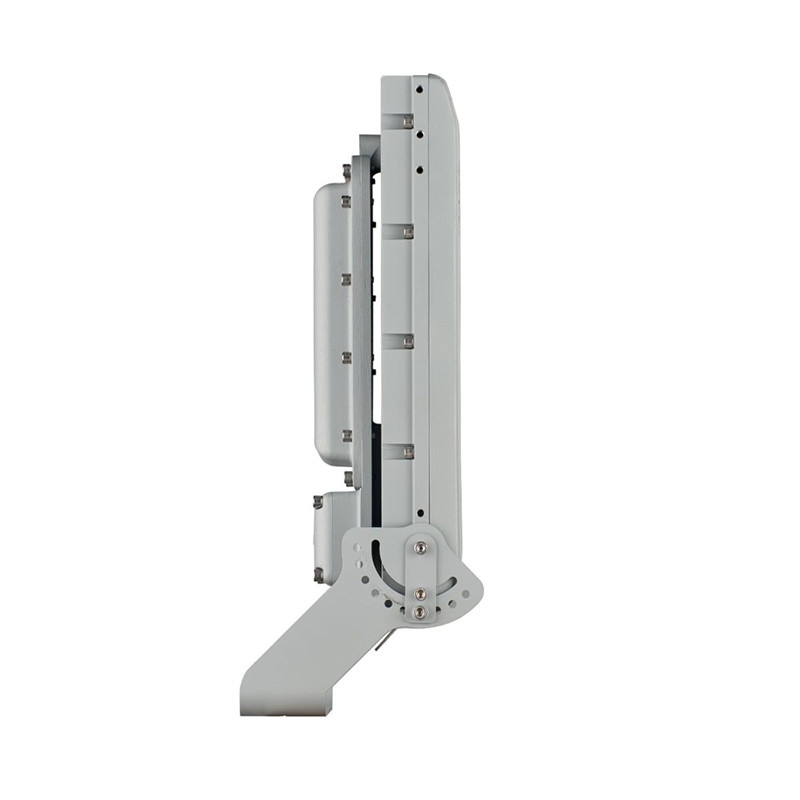

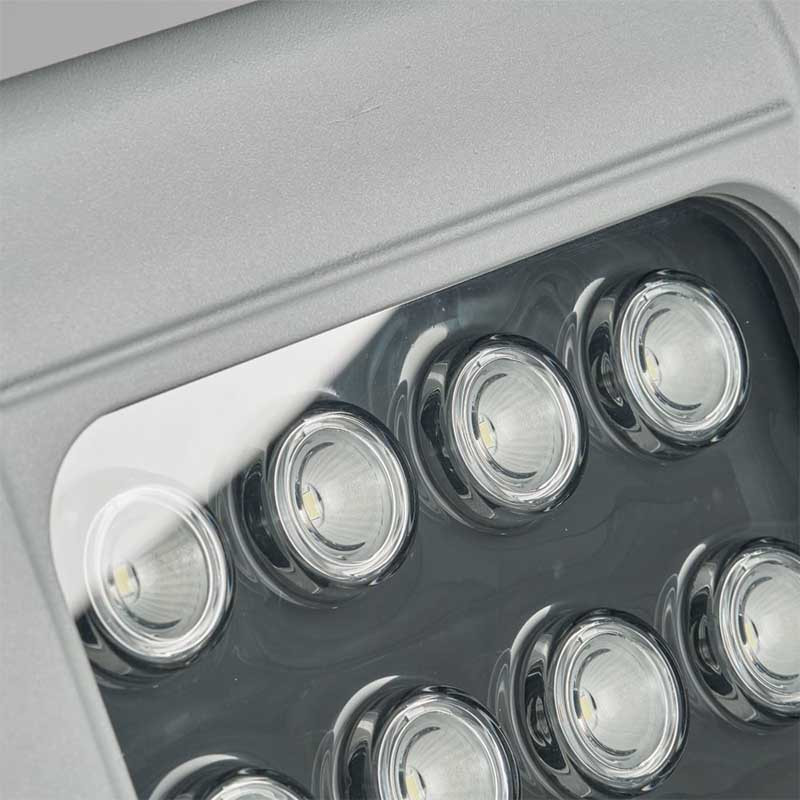

SPARTAN High Power Flood
High power LED floodlight for zone 1/21

ATEX and IEC Ex approved – Zone 1
Ultra Long Life LED
High Lumen Output LED
Easy Installation and Maintenance
Extreme Durability and Toughness
Wide Operating Temp -50° to +50°
DALI/Dimming as Standard
Remote Power Supply Variants Available
Zone 2 Variants Available
5 Year Warranty

Beam

Luminous flux

Ask for a quote

Related Download Files

Installation guide (367.45k)

Certificate ATEX CML 17ATEX1148 (301.68k)

Certificate IECEX CML 17.0074 (632.98k)

Data sheet Tech.HPFL IIB+H2-Zone (440.79k)

Security policy
Delivery policy

The SPARTAN High Power Flood range is designed for very large and open hazardous areas which require high performance, high reliability, White-Light illumination. Using A2S’s field-proven, long-life LED technology, the HPFL is globally certified for all Zone 1 applications. With DALI/dimming capabilities as standard, its unique modular design with removable PSU chassis also allows for the most flexible installation and easiest access and servicing. CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output. All SPARTAN luminaires come with an industry leading 5 year warranty.

Data sheet

Ambiant temperature: -50°C to +50°C
Power supply: 150-264 V ac/dc
Power consumption (W): 120W
180W
240W
300W
Luminous flux: 10,000lm
15,000lm
20,000lm
25,000lm
Color temperature: 5,000 K
LED type: PLATINUM SMT Leds
Cable entries: 2xm20 in standard (other on request), delivered with ATEX / Iecex 3/4 ̈NPT plug in standard on C1D2
Dimensions: 639 x 350 x 215mm
