SPARTAN High Power Flood HPFL Zone 2

Key features :

ATEX and IEC Ex certified - Zone 2/22
UL / CSA approved, including C1D2 and ABS
Ultra long lasting LED
High luminous intensity LED
Easy installation and maintenance
Emergency variant available
Wide operating temperature -50 ° to + 55 °
VARIO lens technology - easy modification of beam patterns
Zone 1 version available
Luminous flux: 10,000 to 25,000 lm
Consumption: 120 to 300W
Power supply unit removable / deportable to 100m max. (contact us)
5 year warranty

Related Download Files

Installation guide (367.45k)

Certificate IECEX CML 17.0074 (632.98k)

Certificate ATEX CML 17ATEX4149 (304.59k)

Fiche Tech.HPFL-Zone 2-EN (444.21k)

Security policy
Delivery policy

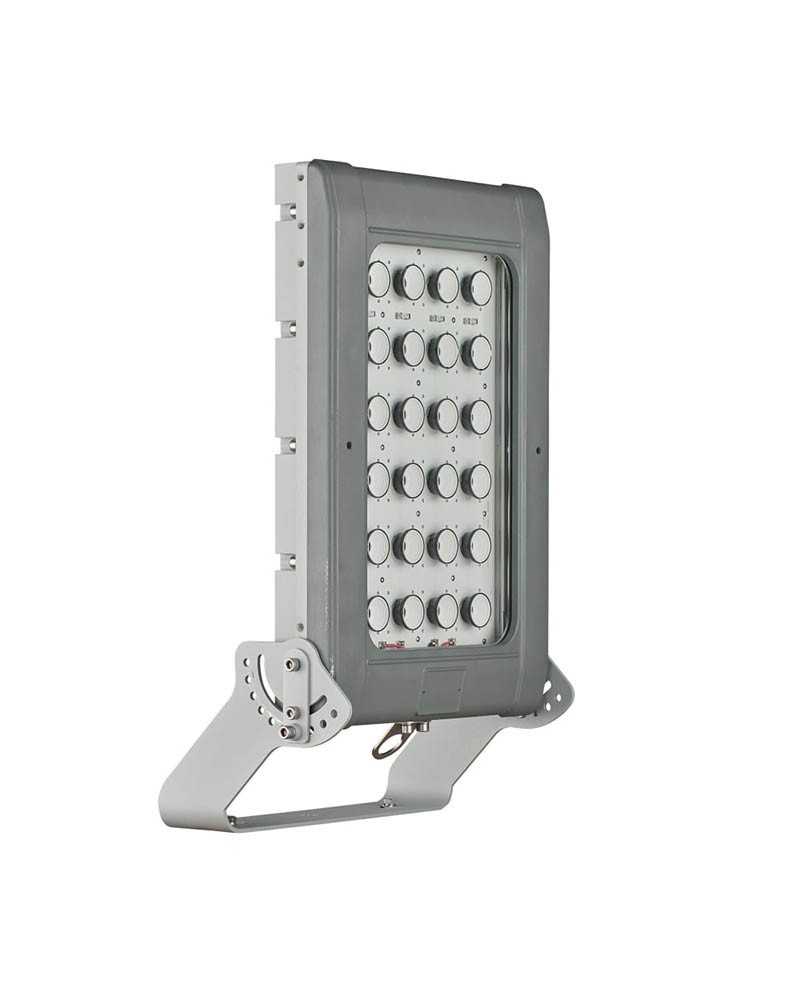

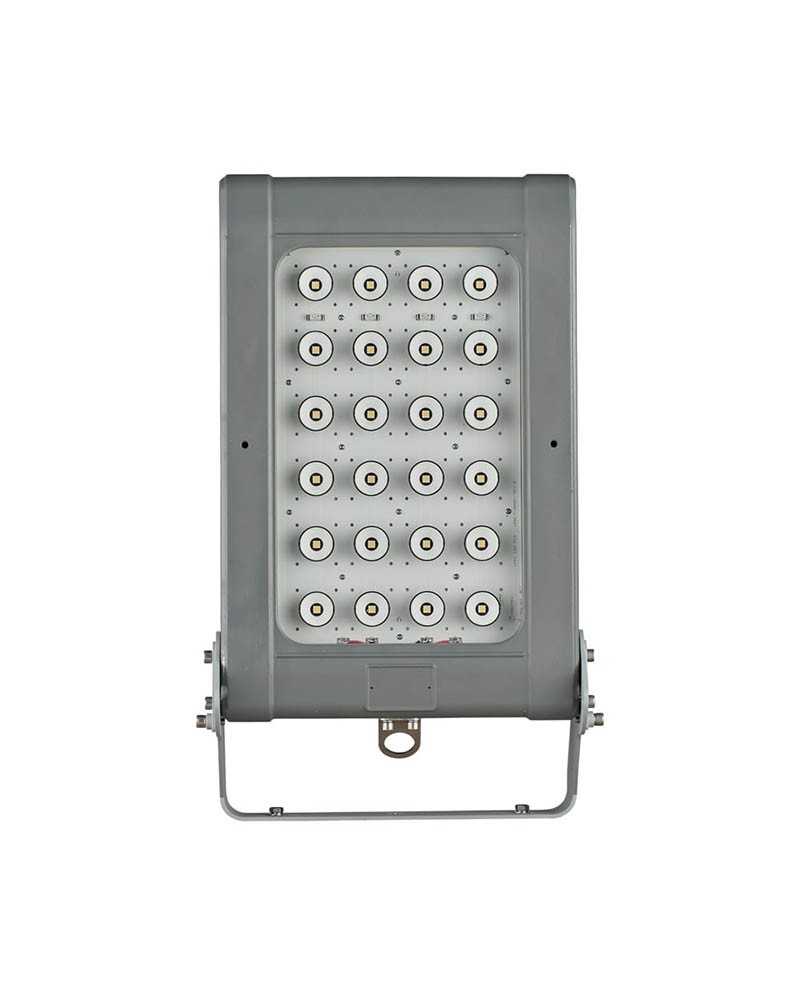

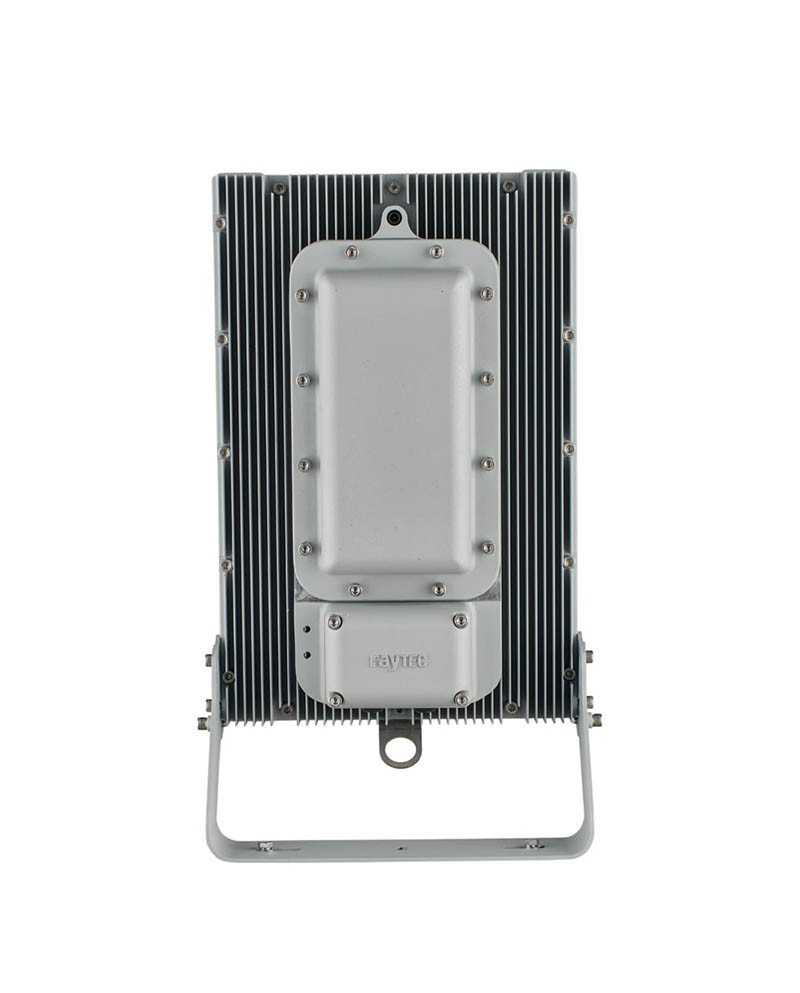

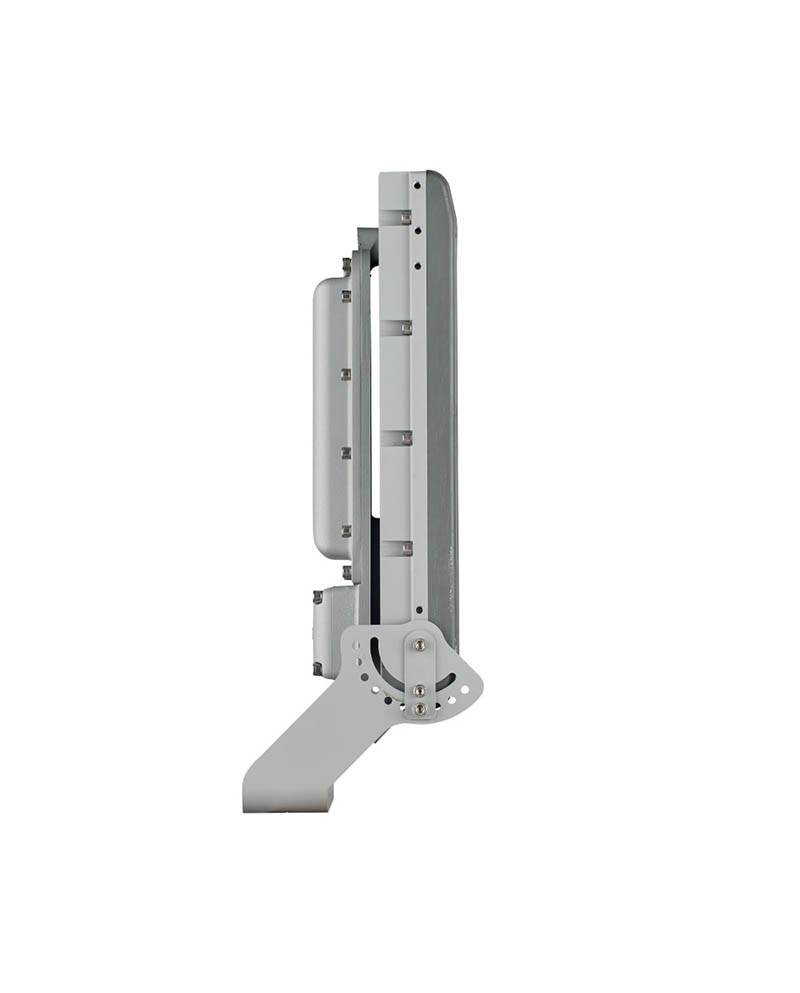

The SPARTAN High Power Flood range is designed for very large and open hazardous areas which require high performance, high reliability, White-Light illumination. Using A2S’s field-proven, long-life LED technology, the HPFL25K is globally certified for all Zone 2 applications. With DALI/dimming capabilities as standard, its unique modular design with removable PSU chassis also allows for the most flexible installation and easiest access and servicing. CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 25,000 delivered lumens. All SPARTAN luminaires come with an industry leading 5 year warranty.
