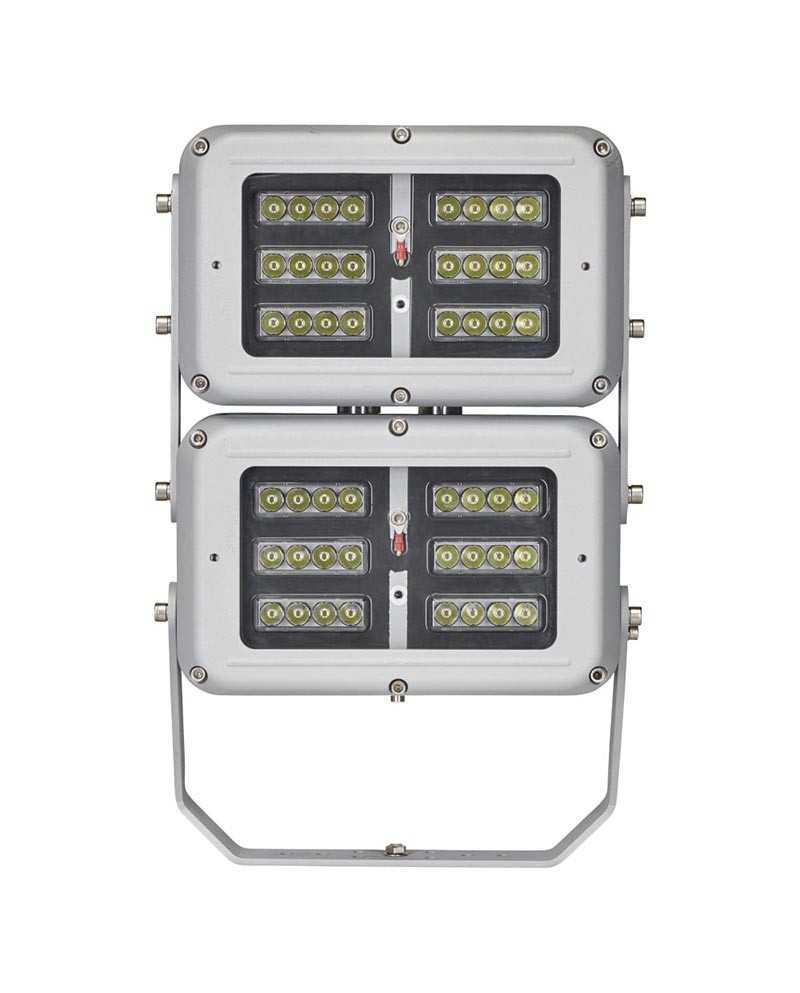

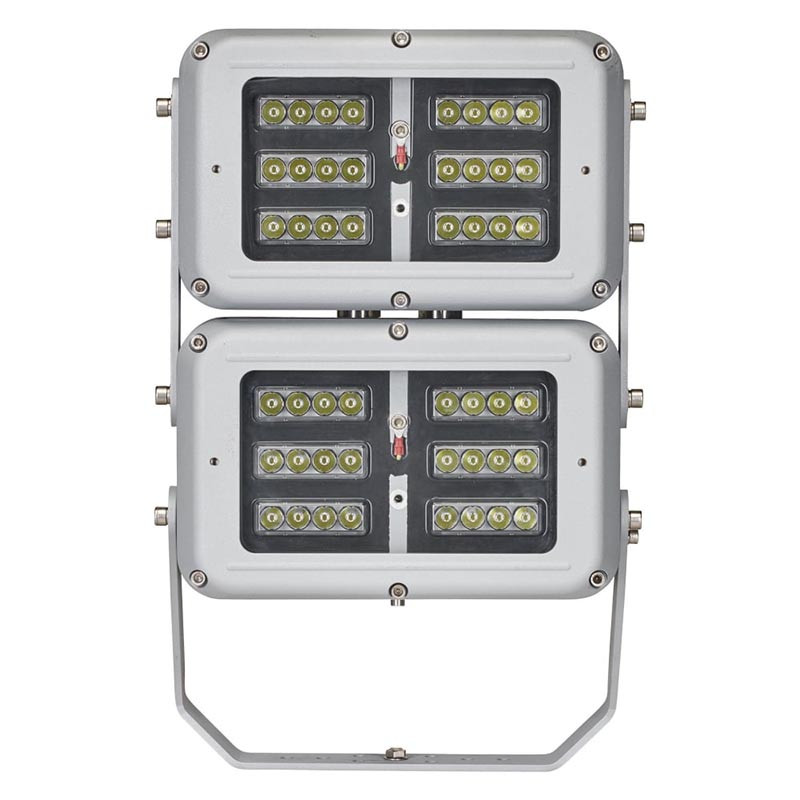

SPARTAN Flood FL48 Floodlight Zone 1/21 10,000 Lumens

SPARTAN FL48
SPARTAN Flood FL48 Floodlight Zone 1/21 10,000 Lumens

Certifié ATEX et IEC Ex Zone 1
Homologué UL / CSA, y compris C1D2 et ABS
LED ultra longue durée
LED à haute intensité lumineuse
Installation et maintenance faciles
Version d’urgence disponible
Large température de fonctionnement -50 ° à + 55 °
Technologie des lentilles VARIO – modification facile des diagrammes de faisceau
Version zone 2 disponible
Garantie 5 ans

Beam

Power supply

Ask for a quote

Related Download Files

Installation guide (398.52k)

ATEX CML certificate 13ATEX3007 (95.74k)

Certificate IECEX CML 14.0001 (413.95k)

Fiche-Technique-FL48-Zone 1-EN (453.02k)

Security policy
Delivery policy

The SPARTAN Flood range is designed for hazardous area environments which require high performance, reliable, White-Light illumination. Using A2S’s field-proven, long-life LED technology, the FL48 floodlight is globally certified for all Zone 1 applications. Its unique modular design with removable PSU chassis allows for the most flexible installation and easiest access and servicing. CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a lumen output of up to 10,00 delivered lumens. All SPARTAN luminaires come with an industry leading 5 year warranty.

Data sheet

Ambiant temperature: -50°C to +55°C
Power supply: 110-254V 50/60Hz AC uniquement - Basse tension : 18-48V AC et 18-69V DC - Extra basse tension : 12V AC/DC
Version: Standard
Power consumption (W): 136W
Luminous flux: Up to 10,000lm
Color temperature: 6,000 K+
LED type: PLATINUM SMT Leds
Dimensions: 291 x 502 x 158mm
