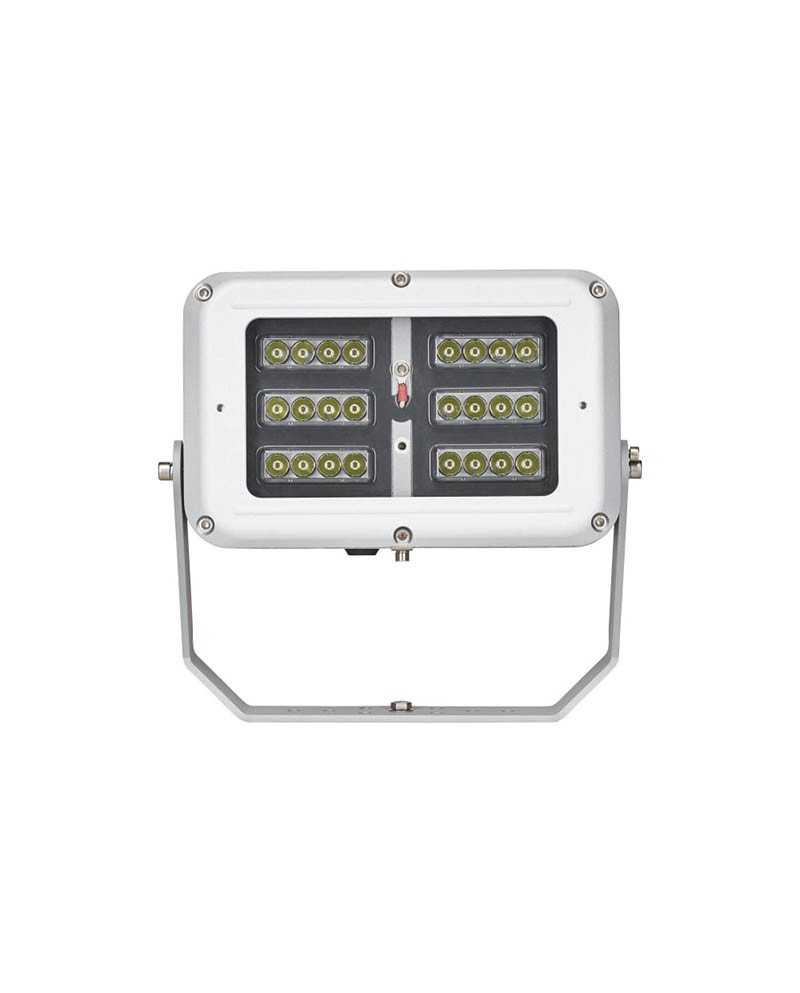

SPARTAN FLOOD FL24 - Industrial - Emergency - 5500 lumens
Strong points:
- ultra long-lasting LED
- Warranty 5 years
- LED high power
- Feed: elliptical variants 35x10°/ 60x25°/ 80x30°/ 120x50° or circular 10°, 30°, 50° and 120°
- Facility and maintenance
- Large operating temperature range -20° to +55°
- VARIO technology - easy modification of beam model
- Battery: Ni/Cd 12V 4.5Ah
- Battery life: up to 1hrs 100% or 2hrs to 50% - other available options
- Made in the United Kingdom
Customs Code:94054010
Country of origin :UK
Weight:10kg
Stock:Available within 22 days*
Security policy
Delivery policy
The SPARTAN Flood range is designed for environments that require high performance and reliable white lighting. Using Raytec's proven long-term LED technology, FL24 is globally certified for all industrial applications requiring a backup battery. It delivers up to 100% light in emergency operation. Its unique modular design with removable PSU chassis allows the most flexible installation and easy access and maintenance. CoolXtrude TM thermal management technology delivers a lifetime of 10 years and more, while providing a luminous flux of up to 5,500 lumens. All SPARTAN luminaires have a 5-year warranty.
Data sheet
- Implementation
- Industry
Marine - Suitable for
- non-Ex
- Degree of protection
- IP66
IP67 - Ambiant temperature
- -20°C to +55°C
- Power supply
- 110-254V 50/60Hz AC uniquement - Basse tension : 18-48V AC et 18-69V DC - Extra basse tension : 12V AC/DC
- Version
- Helped
- Power consumption (W)
- 71W
- Luminous flux
- up to 5,500 lm for circular beam model and up to 5,000 lm for elliptical beam model
- Color temperature
- 6,000 K+
- LED type
- PLATINUM SMT Leds
- Cable entries
- 2xm20 in standard (other on request), delivered with ATEX / Iecex 3/4 ̈NPT plug in standard on C1D2
- Dimensions
- 291 x 312 x 215mm
