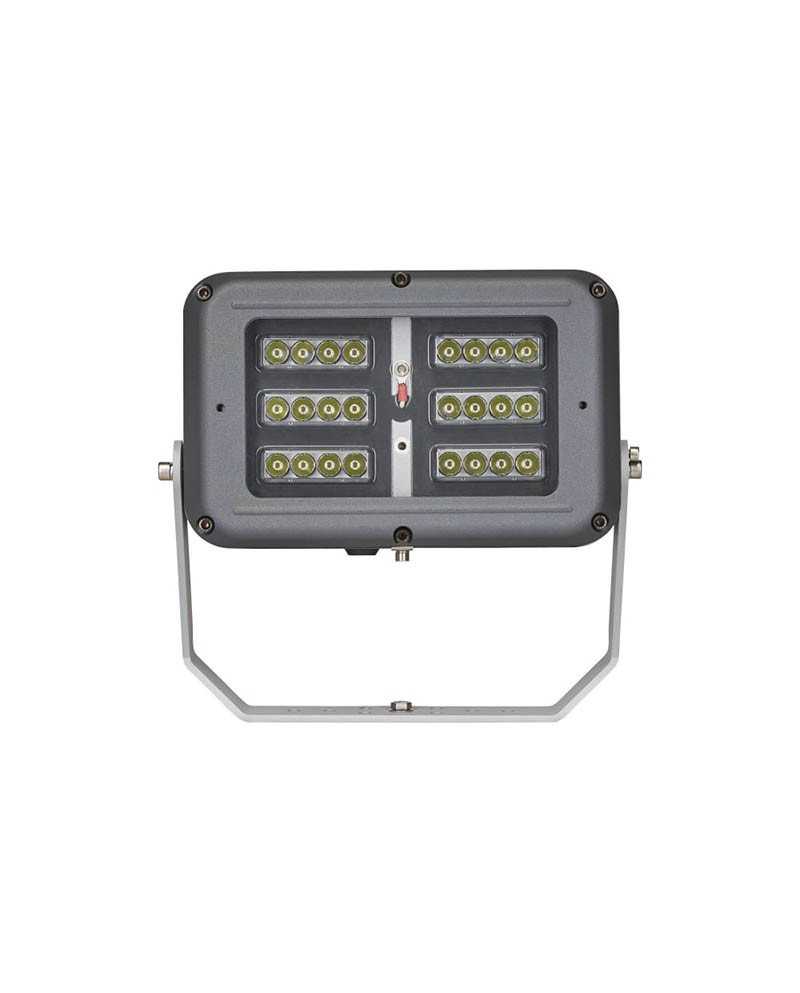

SPARTAN Floodlight FL24: Zone 2, Emergency, 5500 lumens - A2S

SPARTAN FLOOD FL24 - Zone 2 - Emergency - 5500 lumens

Strong points:

Certified ATEX and IEC Ex - Zone 2
Certified UL/CSA (including C1D2 and ABS)
ultra long-lasting LED
Warranty 5 years
LED high power
Feed: elliptical variants 35x10°/ 60x25°/ 80x30°/ 120x50° or circular 10°, 30°, 50° and 120°
Zone 1 version available
Facility and maintenance
Large operating temperature range -20° to +55°
VARIO technology - easy modification of beam model
Battery: Ni/Cd 12V 4.5Ah
Battery life: up to 1hrs 100% or 2hrs to 50% - other available options
Made in the United Kingdom

Customs Code:94054010
Country of origin :UK
Weight:10kg
Stock:Available within 22 days*

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The SPARTAN Flood range is designed for explosive atmospheres that require high performance and reliable white lighting. Using Raytec's proven long-term LED technology, the FL24 emergency projector is globally certified for all applications in Zone 2 requiring a backup battery. It delivers up to 100% light in emergency operation. Its unique modular design with removable PSU chassis allows the most flexible installation and easy access and maintenance. CoolXtrude TM thermal management technology delivers a lifetime of 10 years and more, while providing a luminous flux of up to 5,500 lumens. All SPARTAN luminaires have a 5-year warranty.

Implementation	Hazardous area
Certification	ATEX Iecex
Suitable for	Area 2/22
Ambiant temperature	-20°C to +55°C
Power supply	110-254V 50/60Hz AC uniquement - Basse tension : 18-48V AC et 18-69V DC - Extra basse tension : 12V AC/DC
Version	Helped
Power consumption (W)	71W
Luminous flux	up to 5,000 lm for circular beam model and up to 4,500 lm for elliptical beam model
Color temperature	6,000 K+
LED type	PLATINUM SMT Leds
Cable entries	2xm20 in standard (other on request), delivered with ATEX / Iecex 3/4 ̈NPT plug in standard on C1D2
Dimensions	291 x 312 x 215mm
