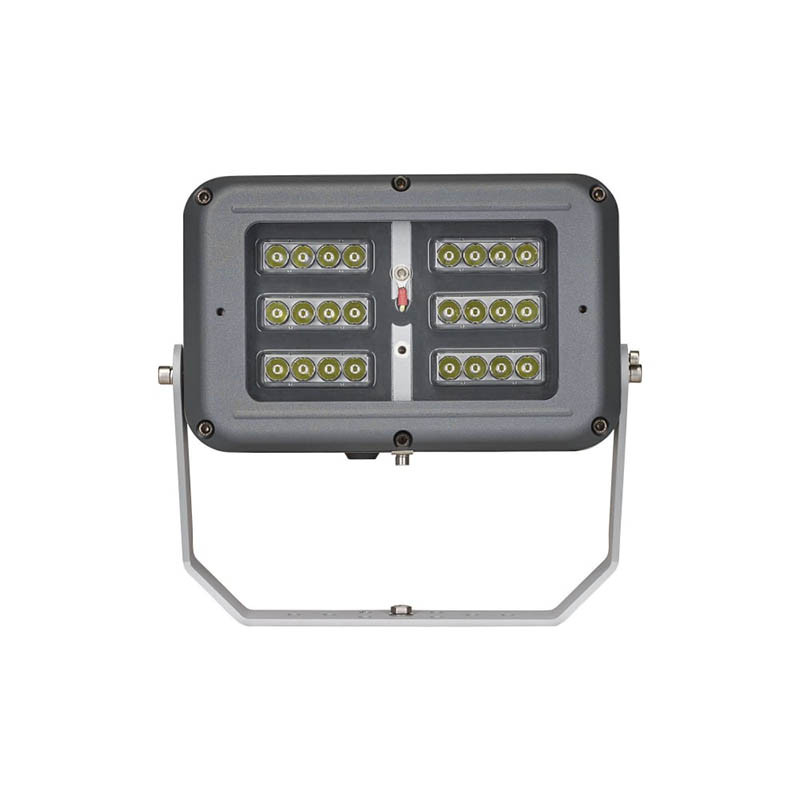

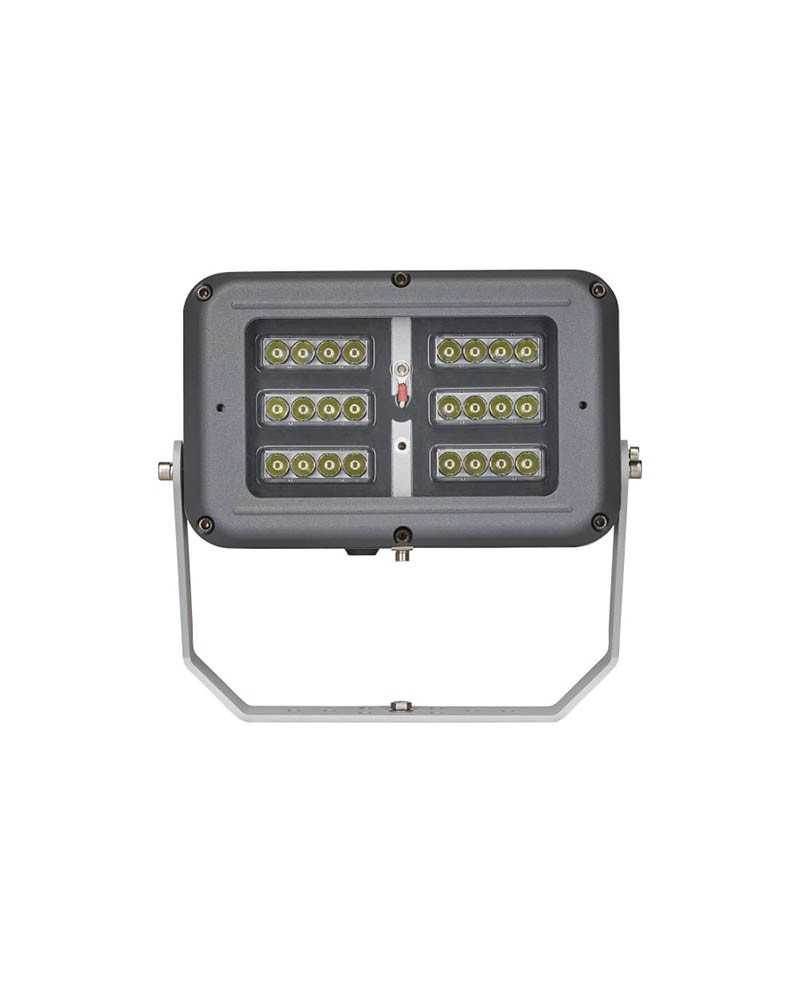

SPARTAN Flood FL24 Floodlight Zone 2

Out of stock

SPARTAN Flood FL24
for zone 2/22 – 5,000 Lumens

  • ATEX and IEC Ex approved – Zone 2
  • UL/CSA approved including C1D2 and ABS
  • Ultra Long Life LED
  • High Lumen Output LED
  • Easy Installation and Maintenance
  • Emergency Variants
  • Wide Operating Temp -50° to +55°
  • VARIO Lens Technology – easy modification of beam patterns
  • Zone 1 Variants available
  • 5 Year Warranty

The SPARTAN Flood range is designed for hazardous area environments which require high performance, reliable, White-Light illumination. Using A2S’s field-proven, long-life LED technology, the FL24 floodlight is globally certified for all Zone 2 applications. Its unique modular design with removable PSU chassis allows for the most flexible installation and easiest access and servicing. CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a lumen output of up to 5,500 delivered lumens. All SPARTAN luminaires come with an industry leading 5 year warranty.

Data sheet

Ambiant temperature
-50°C to +55°C
Power supply
110-254V 50/60Hz AC uniquement - Basse tension : 18-48V AC et 18-69V DC - Extra basse tension : 12V AC/DC
Version
Standard
Power consumption (W)
68W
Luminous flux
up to 5,500 lm for circular beam model and up to 5,000 lm for elliptical beam model
Color temperature
6,000 K+
LED type
PLATINUM SMT Leds
Cable entries
2xm20 in standard (other on request), delivered with ATEX / Iecex 3/4 ̈NPT plug in standard on C1D2
Dimensions
291 x 312 x 150mm
