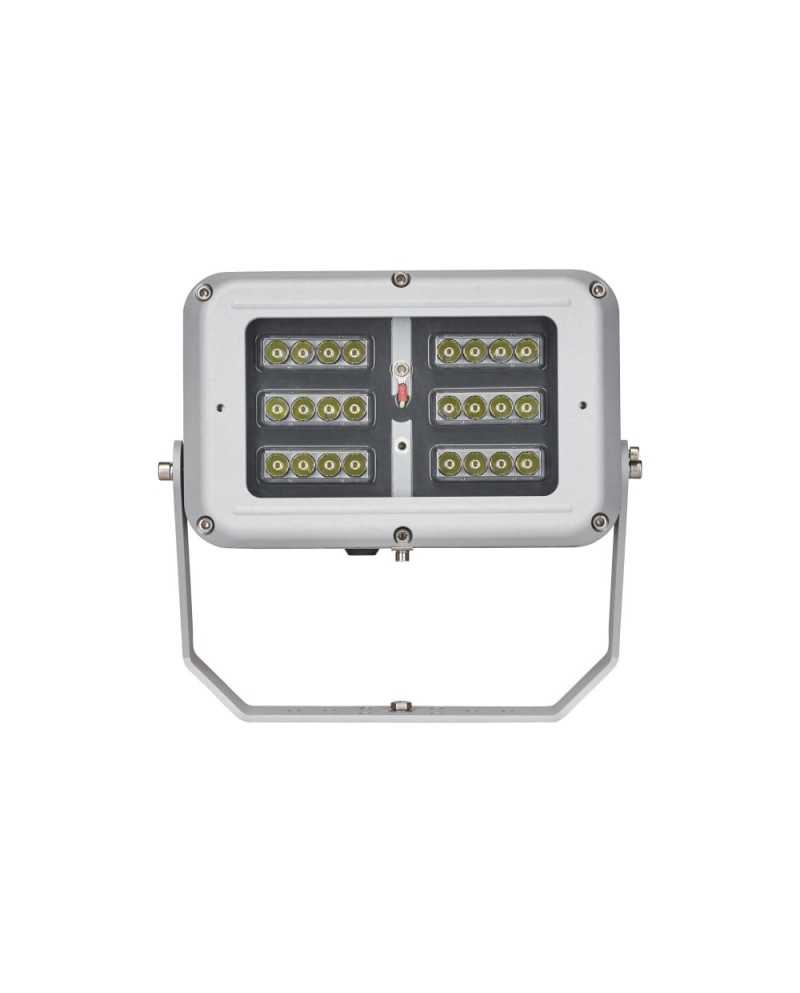

SPARTAN FLOOD FL24 - Zone 1 - Emergency - 5000 lumens

Strong points:

  • Certified ATEX and IEC Ex - Zone 1
  • Certified UL/CSA (including C1D2 and ABS)
  • ultra long-lasting LED
  • Warranty 5 years
  • LED high power
  • Feed: elliptical variants 35x10°/ 60x25°/ 80x30°/ 120x50° or circular 10°, 30°, 50° and 120°
  • Zone 2 version available
  • Facility and maintenance
  • Large operating temperature range -20° to +55°
  • VARIO technology - easy modification of beam model
  • Battery: Ni/Cd 12V 4.5Ah
  • Battery life: up to 1hrs 100% or 2hrs to 50% - other available options
  • Made in the United Kingdom

Customs Code:94054010
Country of origin :UK
Weight:10kg
Stock:Available within 22 days*

  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy

The SPARTAN Flood range is designed for explosive atmospheres that require high performance and reliable white lighting. Using Raytec's proven long-term LED technology, the FL24 emergency projector is globally certified for all Zone 1 applications requiring a backup battery. It delivers up to 100% light in emergency operation. Its unique modular design with removable PSU chassis allows the most flexible installation and easy access and maintenance. CoolXtrude TM thermal management technology delivers a lifetime of 10 years and more, while providing a luminous flux of up to 5,000 lumens. All SPARTAN luminaires have a 5-year warranty.

Data sheet

Implementation
Hazardous area
Certification
ATEX
Iecex
Suitable for
Area 1/21
Area 2/22
Ambiant temperature
-20°C to +55°C
Power supply
110-254V 50/60Hz AC uniquement - Basse tension : 18-48V AC et 18-69V DC - Extra basse tension : 12V AC/DC
Version
Helped
Power consumption (W)
71W
Luminous flux
up to 5,000 lm for circular beam model and up to 4,500 lm for elliptical beam model
Color temperature
6,000 K+
LED type
PLATINUM SMT Leds
Cable entries
2xm20 in standard (other on request), delivered with ATEX / Iecex 3/4 ̈NPT plug in standard on C1D2
Dimensions
291 x 312 x 150mm
