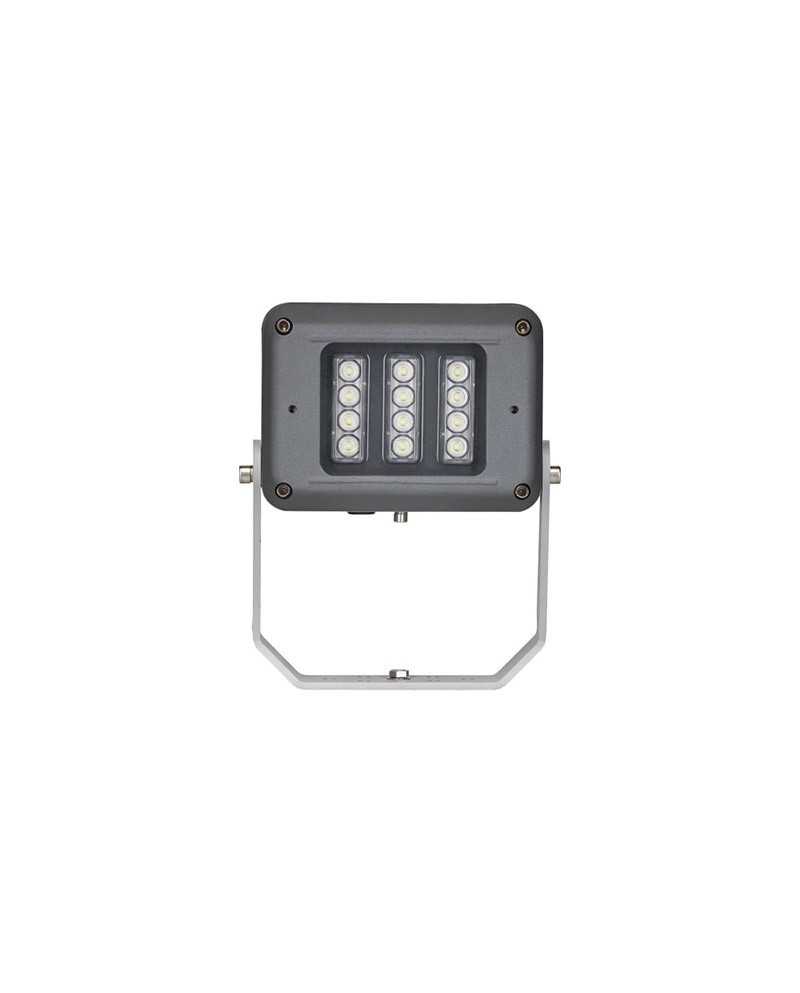

SPARTAN Flood FL12 Floodlight Zone 2/22

SPARTAN Floodlight FL12
for zone 2/22 – 2,750 Lumens

ATEX and IEC Ex approved – Zone 2
UL/CSA approved including C1D2 and ABS
Ultra Long Life LED
High Lumen Output LED
Easy Installation and Maintenance
Emergency Variants
Wide Operating Temp -50° to +55°
VARIO Lens Technology – easy modification of beam patterns
Zone 1 Variants available
5 Year Warranty

Related Download Files

Fiche-Technique-FL12-Zone 2-EN (385.73k)

Certificate ATEX CML 17ATEX4231 (658.68k)

Security policy
Delivery policy

The SPARTAN Flood range is designed for hazardous area environments which require high performance, reliable, White-Light illumination. Using A2S’s field-proven, long-life LED technology, the FL12 floodlight is globally certified for all Zone 2 applications. Its unique modular design with removable PSU chassis allows for the most flexible installation and easiest access and servicing. CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a lumen output of up to 2,750 delivered lumens. All SPARTAN luminaires come with an industry leading 5 year warranty.

Data sheet

Ambiant temperature: -50°C to +55°C
Power supply: 110-254V 50/60Hz AC uniquement - Basse tension : 18-48V AC et 18-69V DC - Extra basse tension : 12V AC/DC
Power consumption (W): 34W
Luminous flux: up to 2,750 lm
Color temperature: 6,000 K+
LED type: PLATINUM SMT Leds
Dimensions: 196 x 274 x 170mm
