SPARTAN Flood FL12 Floodlight Zone 1/21 2,500 Lumens

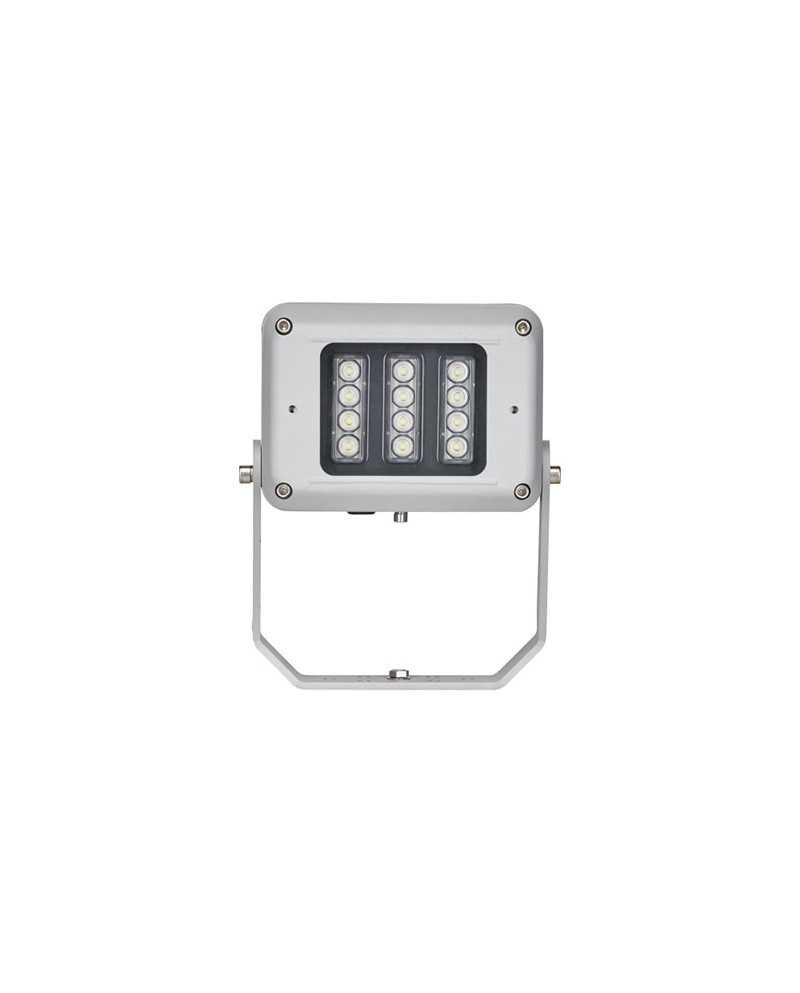

SPARTAN Floodlight FL12
for zone 1/21 – 2,500 Lumens

ATEX and IEC Ex approved – Zone 1
UL/CSA approved including C1D2 and ABS
Ultra Long Life LED
High Lumen Output LED
Easy Installation and Maintenance
Emergency Variants
Wide Operating Temp -50° to +55°
VARIO Lens Technology – easy modification of beam patterns
Zone 2 Variants available
5 Year Warranty

Related Download Files

Fiche-Technique-FL12-Zone 1-EN (1.7M)

Installation guide (398.52k)

ATEX CML certificate 13ATEX3007 (95.74k)

Certificate IECEX CML 14.0001 (413.95k)

Security policy
Delivery policy

The SPARTAN Flood range is designed for hazardous area environments which require high performance, reliable, White-Light illumination. Using A2S’s field-proven, long-life LED technology, the FL12 floodlight is globally certified for all Zone 1 applications. Its unique modular design with removable PSU chassis allows for the most flexible installation and easiest access and servicing. CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a lumen output of up to 2,500 delivered lumens. All SPARTAN luminaires come with an industry leading 5 year warranty.

Data sheet

Suitable for: Area 1/21
Ambiant temperature: -50°C to +55°C
Power supply: 110-254V 50/60Hz AC uniquement - Basse tension : 18-48V AC et 18-69V DC - Extra basse tension : 12V AC/DC
Power consumption (W): 34W
Luminous flux: up to 2,500 lm
Color temperature: 6,000 K+
LED type: PLATINUM SMT Leds
Cable entries: 2xm20 in standard (other on request), delivered with ATEX / Iecex 3/4 ̈NPT plug in standard on C1D2
Dimensions: 196 x 274 x 170mm
