    CMP/ATEX
    CMP/ATEX

    CMP/ATEX

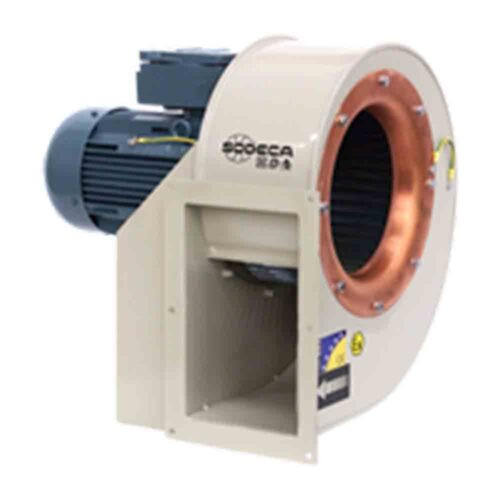

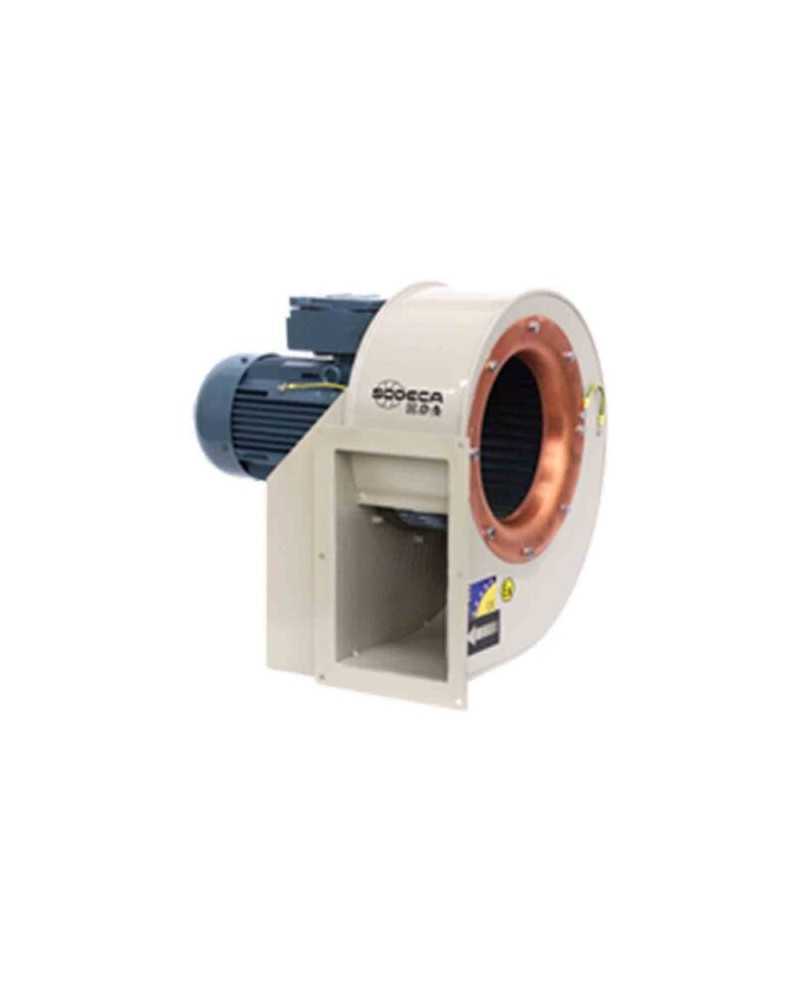

    Medium pressure centrifugal extractors with impeller and ATEX certified

    Ask for a quote
    • Security policy Security policy
    • Delivery policy Delivery policy
    Description

    High pressure centrifugal extractors made of sheet steel. With ATEX certificate and Ex e, Ex d, Ex tc or Ex tb motors. ATEX certified.

    Fan :
    • Sheet steel casing.
    • Impeller in galvanized sheet steel.
    • Non-sparking suction ring in copper or aluminum.
    • Maximum temperature of the air to be transported: -20 ºC +80 ºC.

    Motor :
    • Class F motors with ball bearings. ATEX certificate increased safety Ex e or explosion-proof Ex d.
    • Three-phase 230/400 V 50 Hz (≤ 4 kW) and 400/690 V 50 Hz (›4 kW).

    Finishing :
    • Anticorrosive with ATEX paint, book of ferric compounds. Anticorrosive in polyester resin polymerized at 190 ºC, prior degreasing with nanotechnological treatment without phosphates.

    On demand :
    • Motors with integrated PTC.
    • Special windings for different voltages and frequencies.
    • ATEX construction for different categories.
    • Stainless steel construction.

    Data sheet

    Panel type
    Extracteur Centrifuge
    Certificate(s)
    Iecex
    Degree of protection
    IP55
    Material
    Aluminium
    Ambiant temperature
    -20°C to +80°C
    Operating temperature range
    -25 à +50°C
    Moteur
    Triphasé 230/400 V 50 Hz et 400/690 V 50 Hz
