Control station zone 1, 2, 21, 22

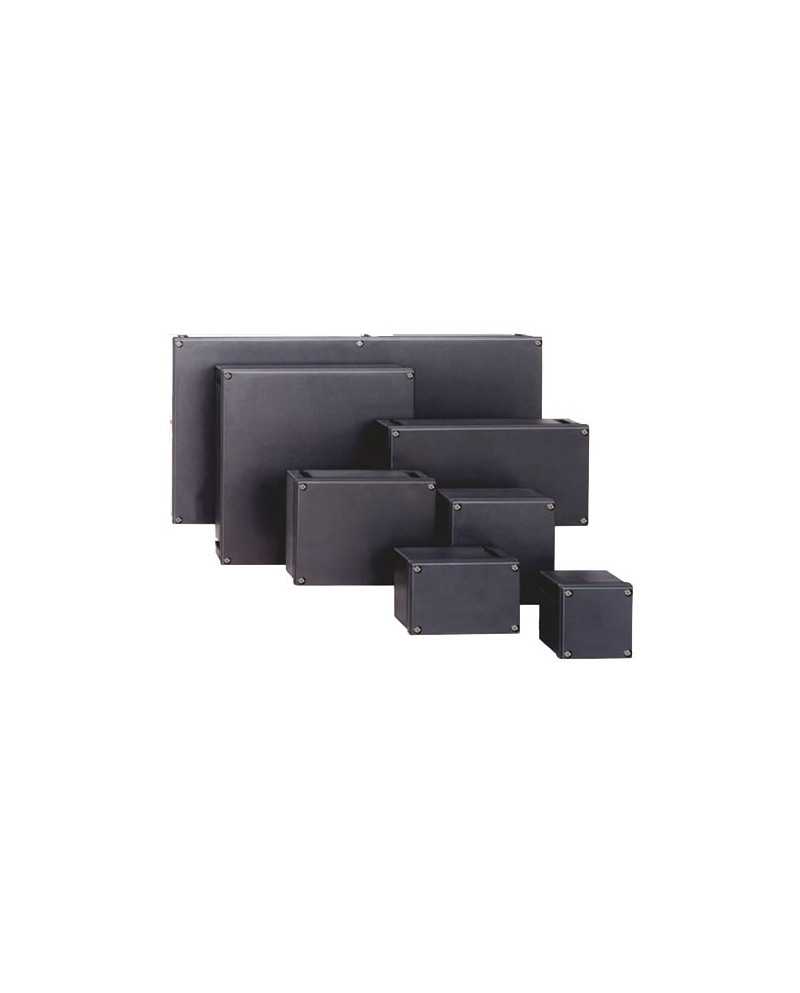

Ex junction box in GRP 8146 series
- Fiberglass-enhanced polyester resin
- Zone 1, 21, 2, 22
- 8 different sizes and several depths
- Modular combinations of boxes
- Equipment with components for rapid assembly: control devices, light and light button, control switch, ammeter, voltmeter
- Options available: flaccids, lid hinges, bridle cases, brass plates and metal shoulder presses
- Security policy
- Delivery policy
The 8146 Series control stations offer flexible protection against explosions in hazardous areas. Each case is custom-made to meet the intended use, so they are available in 8 base sizes and different heights and can be combined to form larger units. They are made of high-quality fiberglass reinforced polyester resin and can be equipped to customer requirements with control stations, signalling devices, light push buttons, control switches, ammeters, voltmeters.
Data sheet
- Degree of protection
- IP66
- Material
- Reinforced polyester (GRP)
- Dimensions
- 170 x 170 x 91 mm
