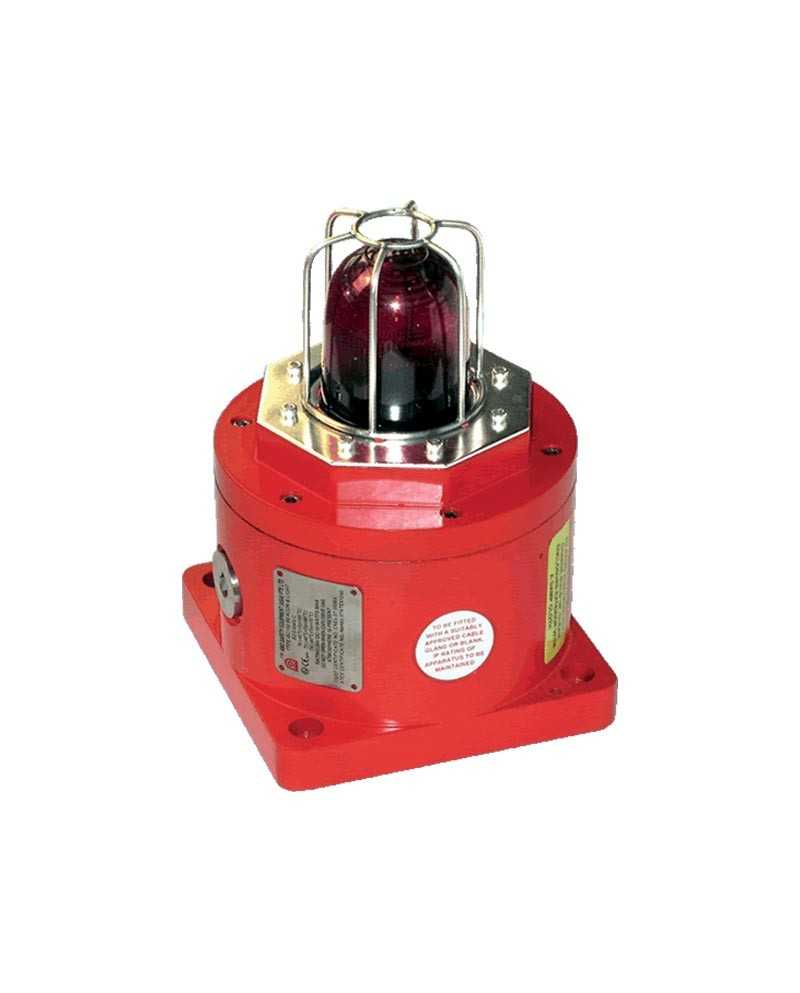

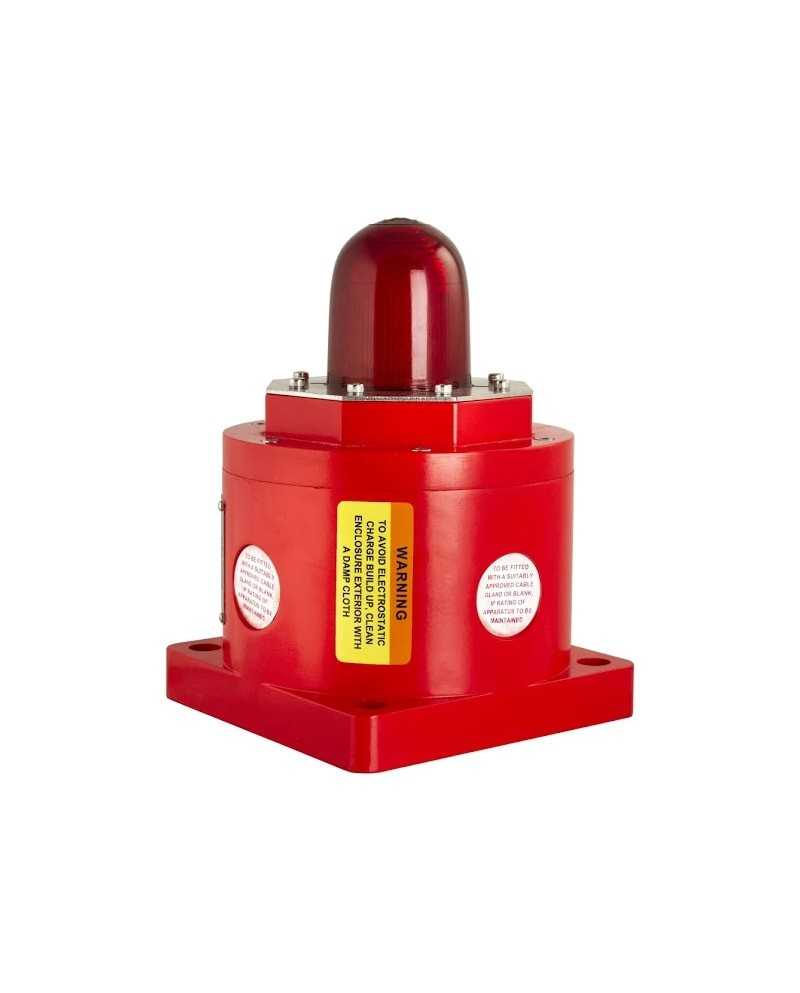

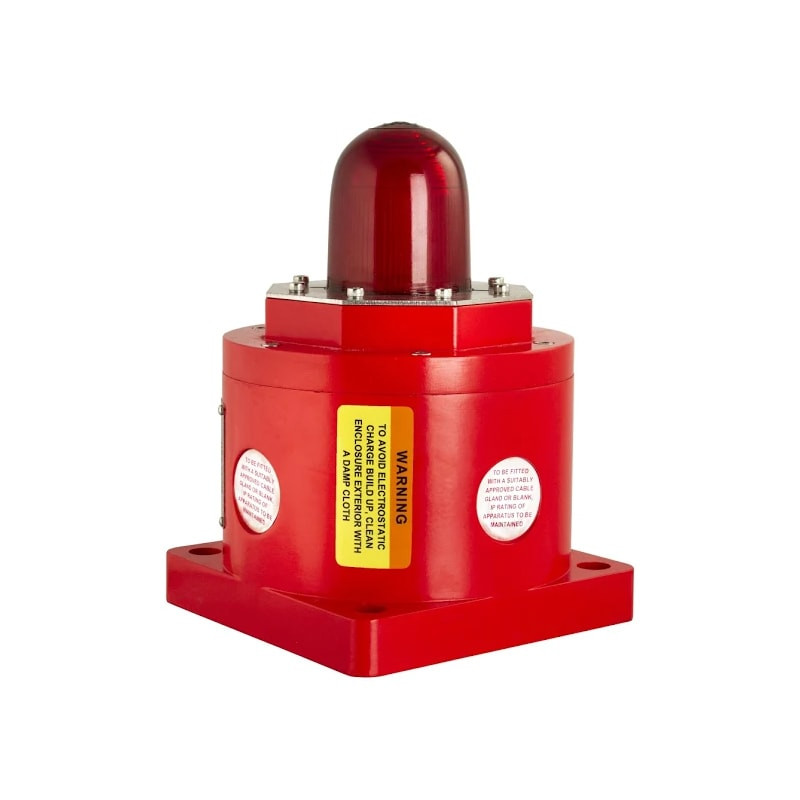

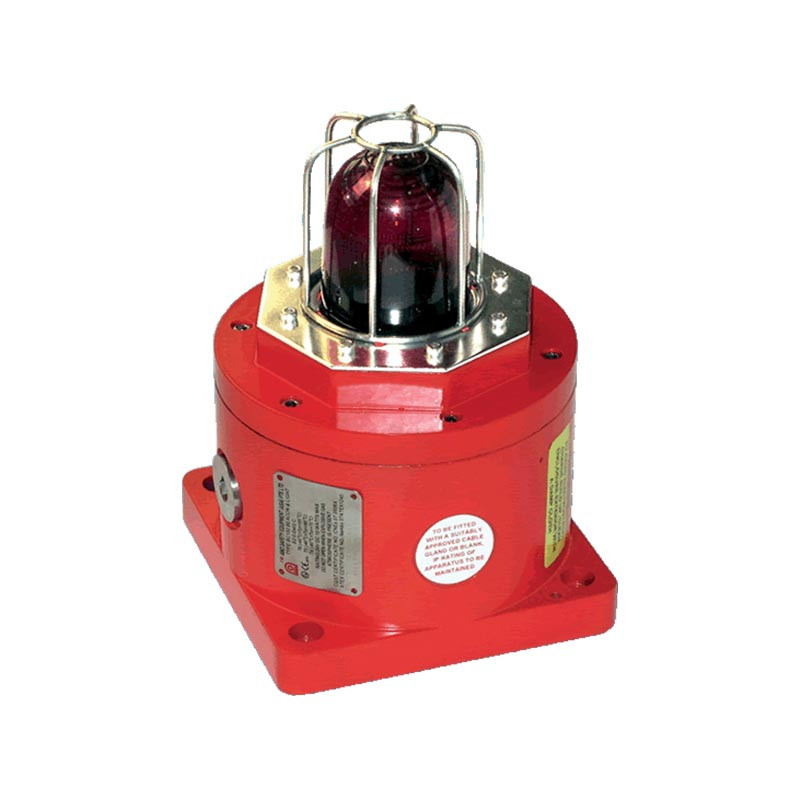

Ex-proof flashing beacon BC150 in GRP

Beacon in GRP for zone 1, 21

  • ATEX and IEC Ex certified – Zone 1, 2, 21, 22
  • LED version 5W or 10W and Xenon 5J, 10J, 15J and 21J
  • Wide operating temperature range -40 ° to + 70 °

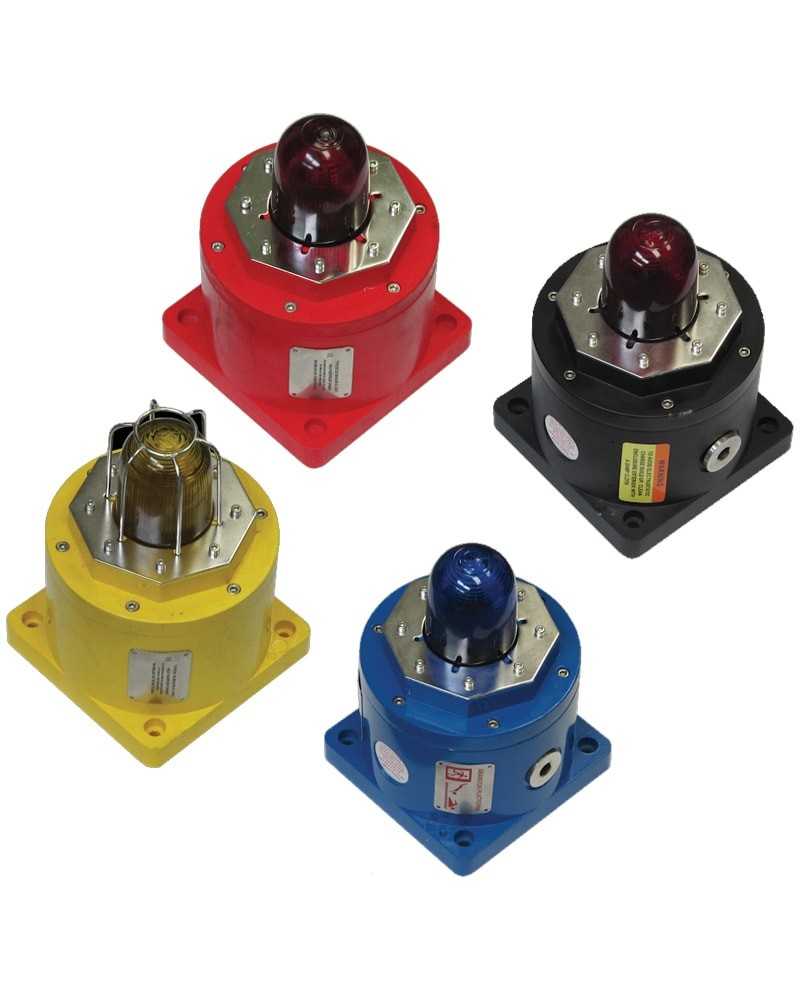

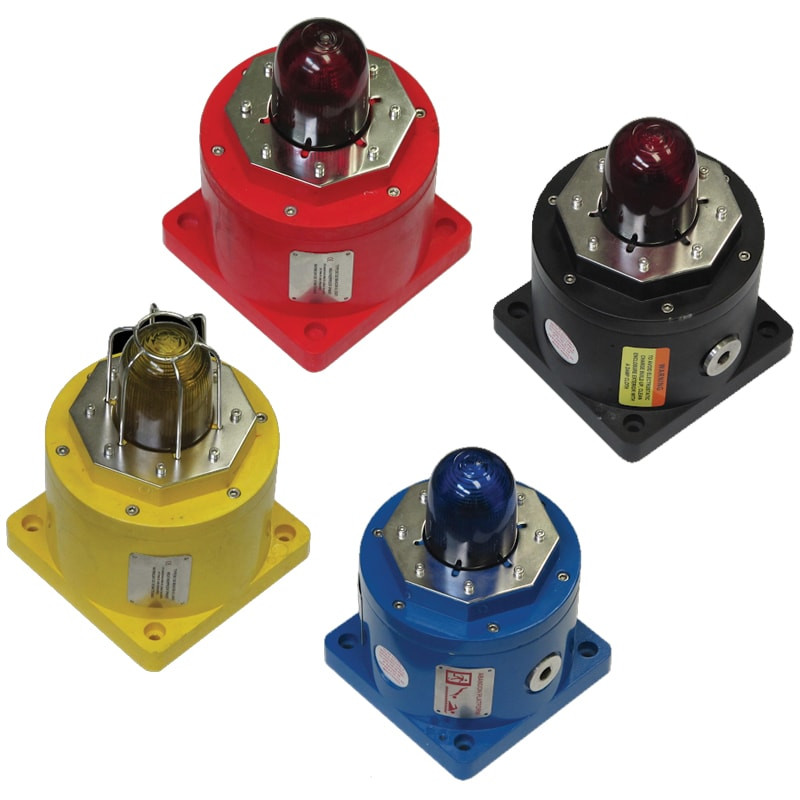

  • 3 finish colors as standard (others on request)
  • High UV resistance
  • Verrine borosilicate red, Yellow (amber), Blue, green, Clear
  • IP66 / 67 protection degree

Customs code: 83311095
Country of origin: FR
Weight: 3.8kg
Old reference : A117A100

Globe color
Power output
Power supply

Delivery within 8-10 days
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy

BC 150 Ex beacon – status light. This beacon is certified for use in  Atex explosive atmosphere, zone 1 & 2 for gas and zone 21 & 22 for dust. It is dedicated for Oil & Gas, chemical, petrochemical, pharmacy industries, marine and Offshore applications. It’s designed for corrosive environnements and hazardous area. The BC150 can also be used as status light. This beacon can be delivered with two different light sources:  Led with steady, rotary, fixed or blinking led of different powers or Flashing with XENON tube of different powers (Four flashing frequencies are selectable). Built in functions: LED type possibility to pilot externally (free voltage contact) 4 différent blinking/rotating frequencies among 36, for Xenon type 4 différent blinking frequencies among 16 can be pilot externally.
Optional it is possible to control the beacon via a telephone line. Housing is in GRP, the lens is  in borosilicate glass.

Data sheet

Implementation
Hazardous area
Certification
ATEX
Iecex
Suitable for
Area 1/21
Area 2/22
Protection mode
Ex d
Protection against gas explosion
Ex d IIC T4~T6 Gb
Protection against dust explosion
Ex tb IIIC T135°C~T85°C, Ex II GD
Degree of protection
IP66
Material
Reinforced polyester (GRP)
Enclosure colour
Red, blue, black
Lens color
borosilicate glass 3.3 color Red, Yellow (Amber), blue, green, clear
Power supply
100-240 Vac
Light source
LED
Xenon
Power consumption (W)
Xenon:2 Joule: 4W (Max); 5J: 10W (Max);10J: 15W (Max);15J: 20W(Max); 21J: 25W(Max); LED:5 W
Cable entries
4* M20, M25, 1/2” NPT, 3/4”NPT or Others on request
