- ATEX and IEC Ex certified – Zone 1, 2, 21, 22
- LED version 5W or 10W and Xenon 5J, 10J, 15J and 21J
- Wide operating temperature range -40 ° to + 70 °
- 3 finish colors as standard (others on request)
- AISI 316L stainless steel
- Verrine borosilicate red, yellow (amber), blue, green, clear
- IP66 / 67 protection degree
- Customs code: 83311095
- Country of origin: FR
- Weight: 4.5kg
- Old reference : A117A021

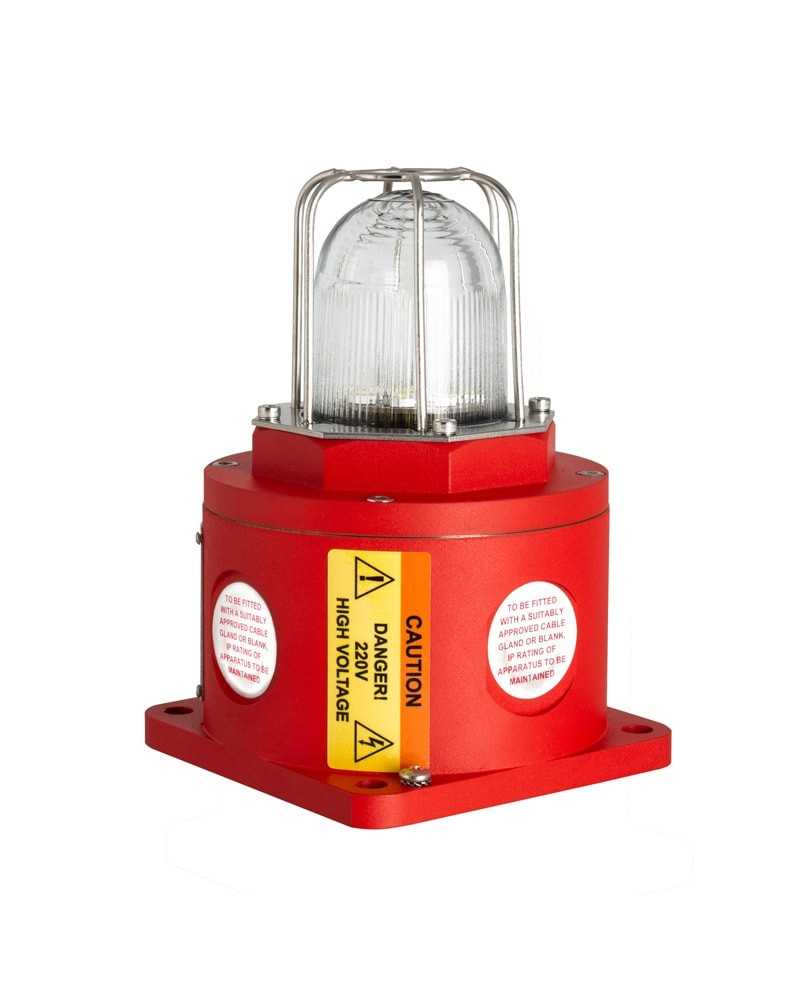

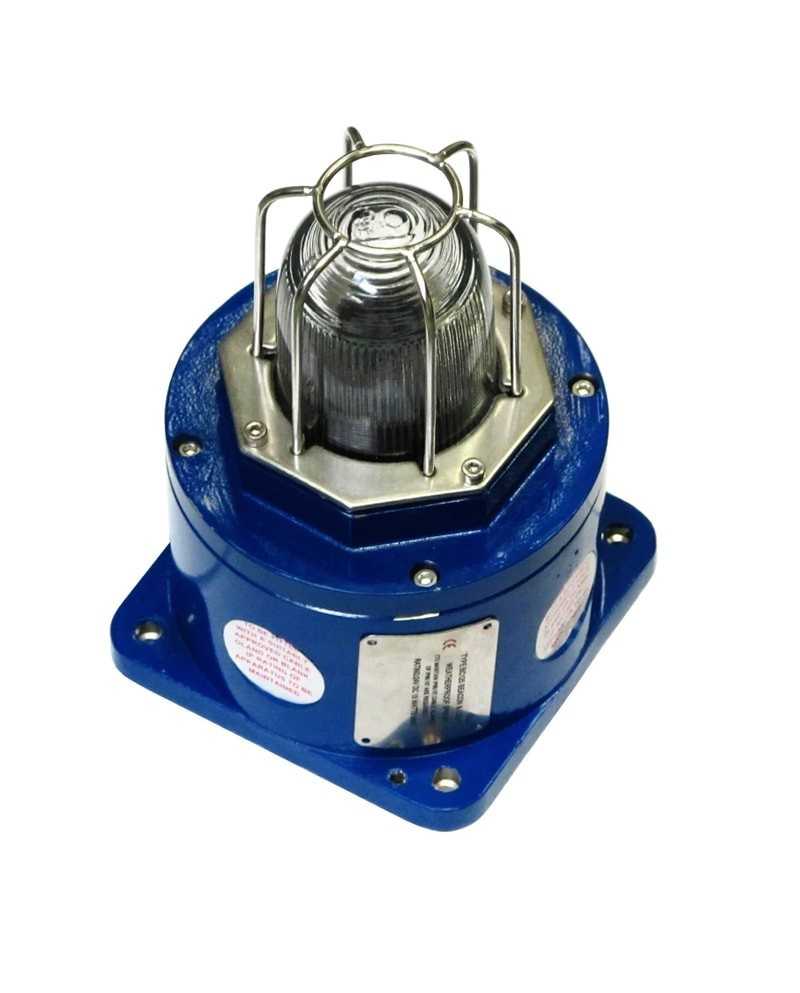

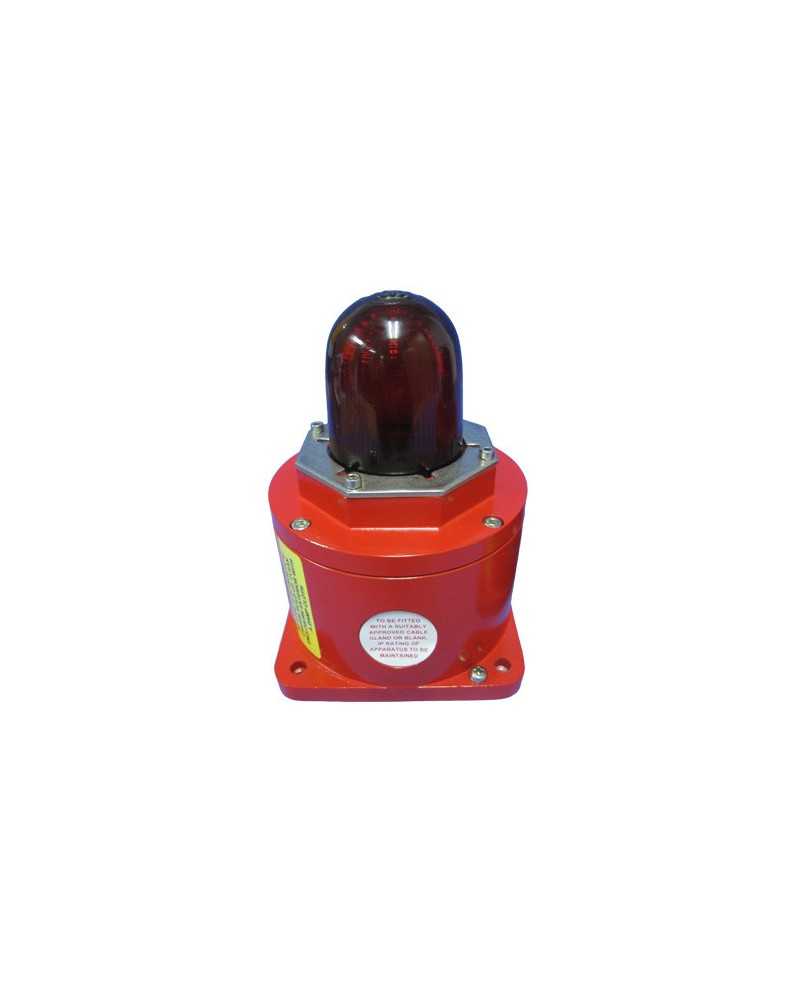

Ex-proof flashing beacon BC125 in stainless steel
Beacon in stainless steel for zone 1, 21
-
Security policy
-
-
Delivery policy
-
BC 125 Ex Beacon – status Light. This beacon is certified for use in Atex explosive atmosphere, zone 1 & 2 for gas and zone 21 & 22 for dust. It is dedicated for Oil & Gas, chemical, petrochemical, pharmacy industries, marine and Offshore applications. It’s designed for corrosive environnements and hazardous area. The BC125 can also be used as status light. This beacon can be delivered with two different light sources: LED with steady, rotary, fixed or blinking LED of different powers or Flashing with XENON tube of different powers (Four flashing frequencies are selectable). Built in functions: for LED type possibility to pilot externally (free voltage contact) 4 différent blinking/rotating frequencies among 36, for Xenon type 4 différent blinking frequencies among 16 can be pilot externally.
Optional it is possible to control the beacon via a telephone line. Housing in stainless steel 316L covered with UV resistant paint, the lens in borosilicate glass.
Data sheet
- Implementation
- Hazardous area
- Certification
- ATEX
Iecex - Suitable for
- Area 1/21
Area 2/22 - Material
- Stainless steel AISI 316L
- Enclosure colour
- Red, (Blue, Black, and other colours on customer request)
- Lens color
- borosilicate glass 3.3 color Red, Yellow (Amber), blue, green, Claire
- Power supply
- 24-48 Vdc
100-240 Vac - Light source
- LED
Xenon - Cable entries
- 2x M20 standard – M25, 1/2′′NPT, 3/4′NPT specification
