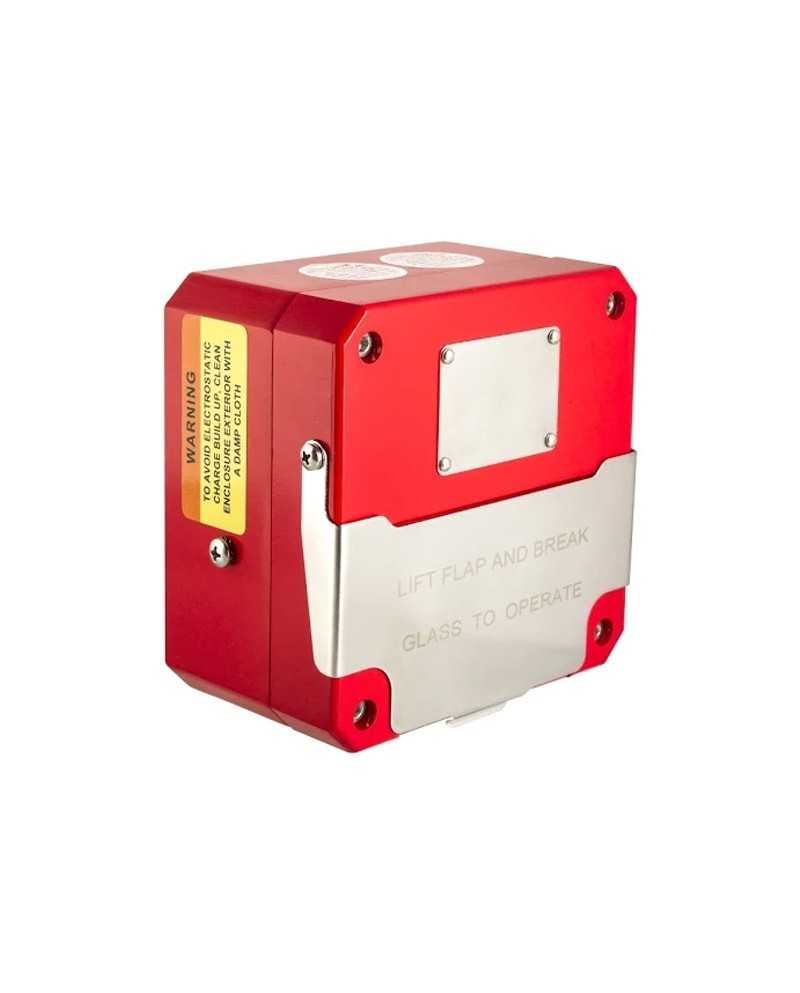

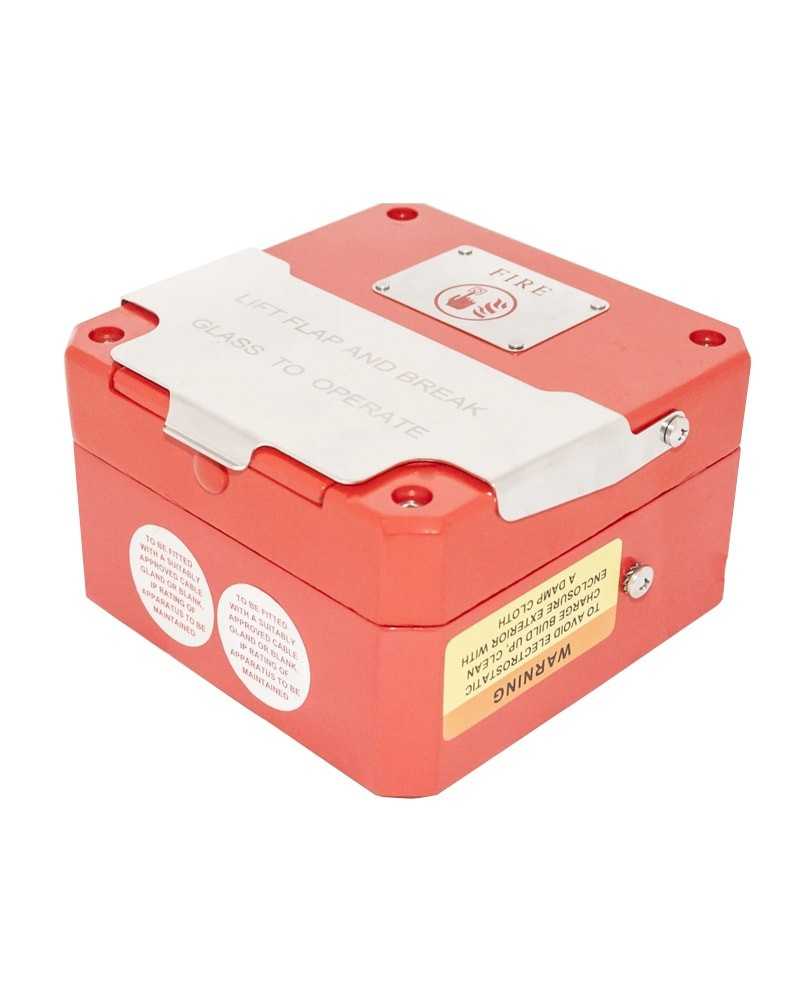

CP 135 manual trigger in GRP
€0.00
Tax excluded
Ex-proof manual call point for zone 1, 21
- ATEX and IECEx certified for zone 1, 2, 21, 22
- IP 66/67
- Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54
- Stainless steel version also available
Customs code : 85311095
Country of origin : FR
Weight : 1,5kg
Old reference : A417A002
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The CP135 explosion-proof manual call point range has been approved for use in potentially explosive atmospheres and harsh environmental conditions.
Common applications include oil and gas, on-shore and off-shore facilities, chemicals, petrochemicals, refineries and marine sites, etc.
The CP135 is compatible with PLC, DCS and ESD systems via a 4-20mA output. It is ideally suited for use in fire alarm systems and an addressable diode fitted option is available.
The range also offers an additional LED visual indication option; red, green (or both) can be fitted. When the fault or alarm condition occurs, the green LED is replaced by the red LED. The design allows for termination inside the unit.
| Certification | ATEX Iecex |
|---|---|
| Certificate(s) | NEMKO 13ATEX1568X IECEX NEM 13.0038X |
| Suitable for | Area 1/21 Area 2/22 |
| Protection mode | Ex d |
| Degree of protection | IP66 |
| Material | Reinforced polyester (GRP) |

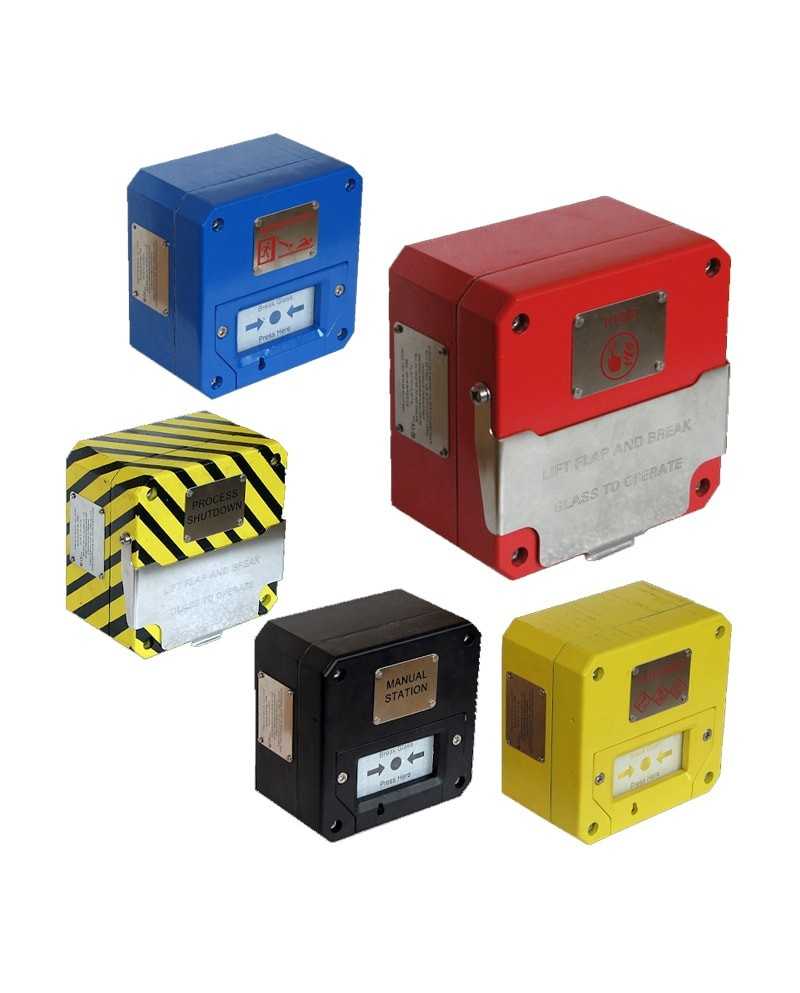

| Enclosure colour | Red, blue, yellow, black with yellow stripes, other colours on demand |
| Ambiant temperature | -40°C to +70°C |
| Humidity | up to 95% RH |
