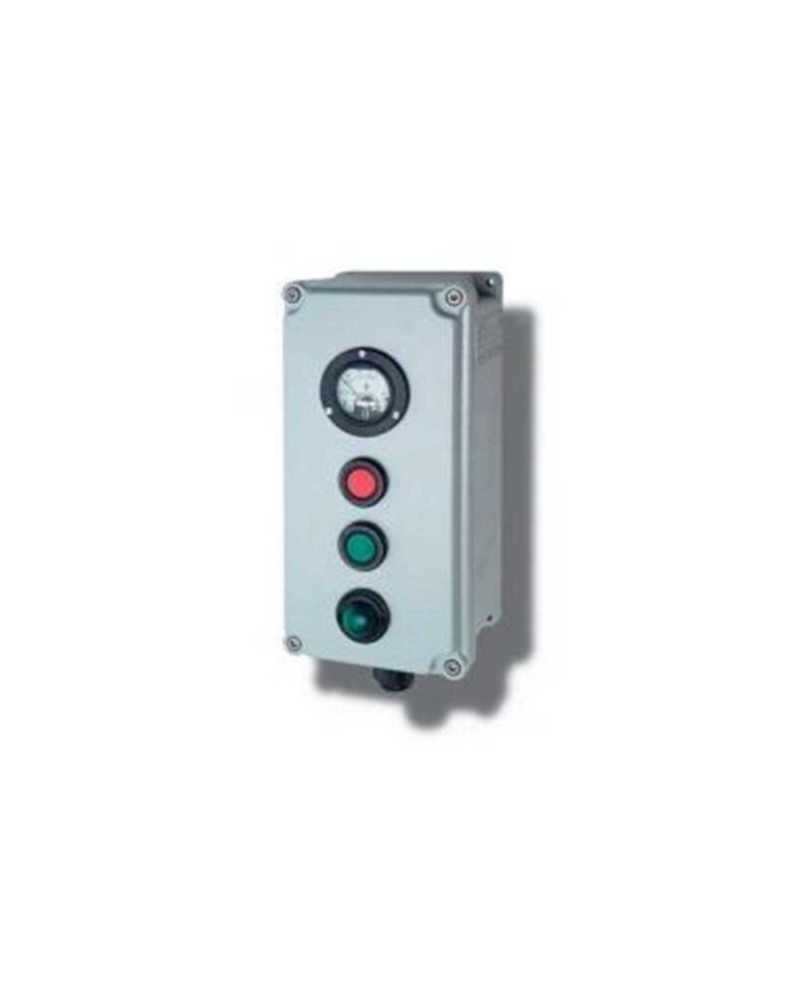

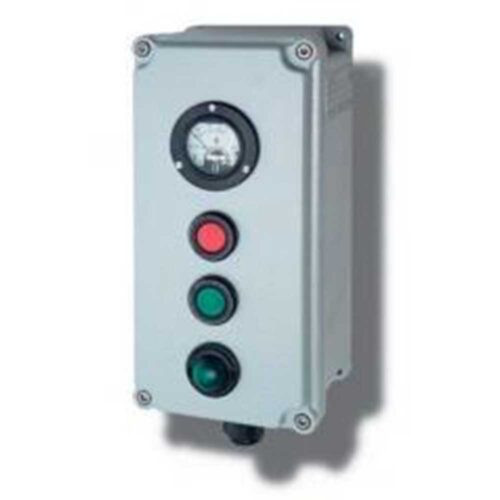

Control station A Serie
Out of stock
Key features:
- Group IIC
- Zone 1, 2, 21, 22
- Aluminum enclosures
- Standard or custom products
- Speed of delivery, designed according to customer specifications -
- Category 2GD
Security policy
Delivery policy
The A-series command stations are made of aluminum alloy and are ideal for housing electrical equipment as control and signaling devices. They can be installed on board machines or remotely and they are used in the chemical, petrochemical and pharmaceutical industries. In addition to the standard models described below, A2S offers a wide range of other custom options.
Construction: Aluminum alloy housing with low copper content. Minimum grade 8.8 stainless steel screws. Polyamide cable gland UNI1XE type.
Data sheet
- Corrosion resistance
- Aluminium alloy tested by standards EN 60068-2-30 (hot/wet cycles) and EN 60068-2-11 (salt fog tests)
- Cable glands
- Polyamide type UNI1LXE7
- Gaskets
- Silicone acid/hydrocarbon and high temperatures resistant
- Bolts and screws
- Stainless steel Entries: 2 ISO M25 entries
- Coating
- Epoxy coating Ral 7035 (light grey)
