Control station I Serie
€0.00
Tax excluded
Key features:
- Group IIC
- Zone 1, 2, 21, 22
- Stainless steel
- Standard or custom products
- Speed of delivery, designed according to customer specifications -
- Category 2GD
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

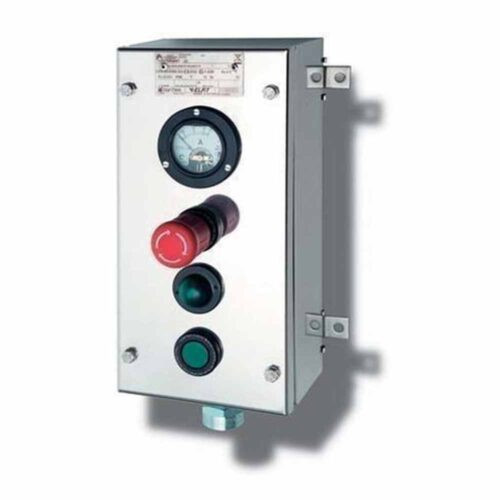

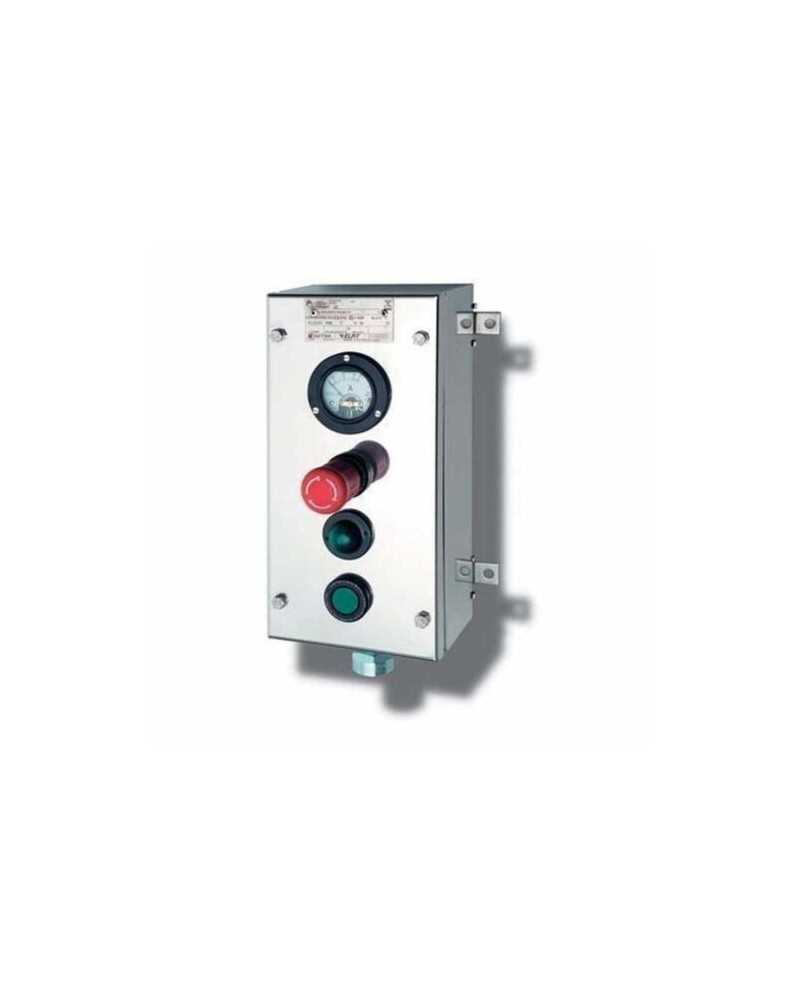

Series I Command Stations… series command stations are made of stainless steel and are ideal for housing electrical equipment as control and signaling devices. They can be installed on board machines or remotely and they are used in the chemical, petrochemical and pharmaceutical industries. In addition to the standard models described below, A2S offers a wide range of other custom options.
Construction: Stainless steel case. Silicone gaskets. Minimum grade 8.8 stainless steel screws. Nickel-plated brass cable gland type REV1IB.
| Material | Stainless steel AISI 316L |
|---|---|
| Cable glands | Nickeled brass |
| Gaskets | Silicone acid/hydrocarbon and high temperatures resistant |
| Bolts and screws | Stainless steel Entries: 2 ISO M25 entries |
