Explosion proof analog camera
Ex-proof camera Excam miniTube
Out of stock
- Certification for Hazardous Areas (ATEX & IECEx)
- Day- & Night-Functionality
- Protection Level of IP68 (IEC 60529)
- High Resolution: 1920×1080 (Full HD)
- Unparalleled Light Sensitivity: 0.01 lx (sens-up x30) / F1.2
- 1/2.8” 2.0Megapixel CMOS Sensor
- Digital Wide Dynamic Range (D-WDR)
- Integrated Motion Detection
Security policy
Delivery policy

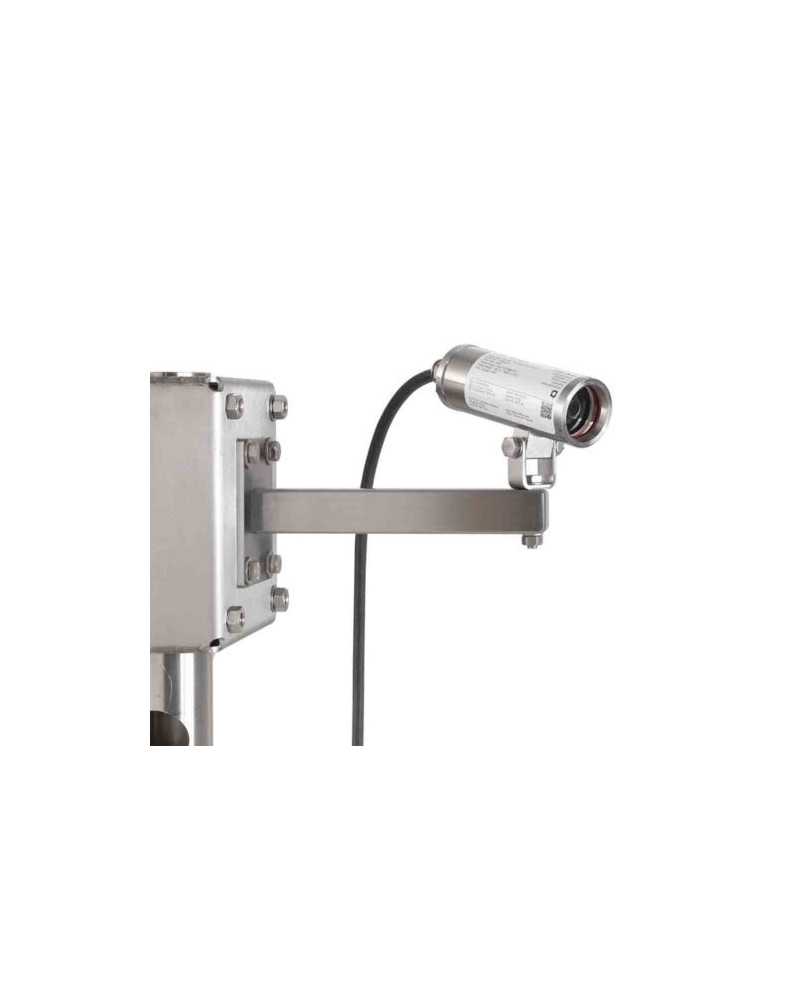

The ExCam miniTube is an analog explosion proof camera with fixed focal length lens in an ultra compact housing. The video camera delivers superb picture quality (FullHD resolution) for process monitoring and surveillance technology. The ExCam miniTube is approved for dust and gas explosion risk zones in accordance with the EU directive 14/34/EU (ATEX and IECEx, further certification will follow).
Despite its ultra compact size (diameter 48mm, length 127mm) the ExCam miniTube offers FullHD resolution. With its weight of only 0.6kg the ExCam miniTube is a real lightweight. Furthermore it is very cost-efficient.
Data sheet
- Degree of protection
- IP68
- Ambiant temperature
- -60°C to +50°C
- Resolution
- 1080p (1920 x 1080) 25fps/30fps; 50/60fps @ 1280x720p
- Net Weight
- 0.6 Kg
